• Model NO.：SJ-50*3,RG1000
• Machine Weight：6500kg
• Certification：CE, ISO9001:2008
• Screw Diameter (mm)：45,50,45
• Max.Folding Width of Film(mm)：1000
• Film Thickness(mm)：0.02-0.15
• Max. Extrusion Output (Kg/H)：180
• Die Size(mm)：60,120 High Speed Type
• Main Motor：Siemens Brand
• Inverter：LG Brand
• Temperature Controller：Omron Brand
• Screen Changer：Yes
• Air Ring：Double Vent Air Ring
• Model：Sj-50*3,Tp1000
• Screw Ratio(L/D)：30:1
• Screw Speed(R/Min)：110
• Range of Die(mm)：200
• Electric Total Capacity(Kw)：95
• Transport Package：Wooden Plate
• Specification：SJ-55*3,RG1200
• Trademark：RuiGao
• Origin：Ruian Zhejiang China
• HS Code：847730900
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ-50*3/RG1000 Machine Weight 6500kg Certification CE, ISO9001:2008 Screw Diameter (mm) 45/50/45 Max.Folding Width of Film(mm) 1000 Film Thickness(mm) 0.02-0.15 Max. Extrusion Output (Kg/H) 180 Die Size(mm) 60/120 High Speed Type Main Motor Siemens Brand Inverter LG Brand Temperature Controller Omron Brand Screen Changer Yes Air Ring Double Vent Air Ring Model Sj-50*3/Tp1000 Screw Ratio(L/D) 30:1 Screw Speed(R/Min) 110 Range of Die(mm) 200 Electric Total Capacity(Kw) 95 Transport Package Wooden Plate Specification SJ-55*3/RG1200 Trademark RuiGao Origin Ruian Zhejiang China HS Code 847730900 Production Capacity 20 Sets/Month

Product Description

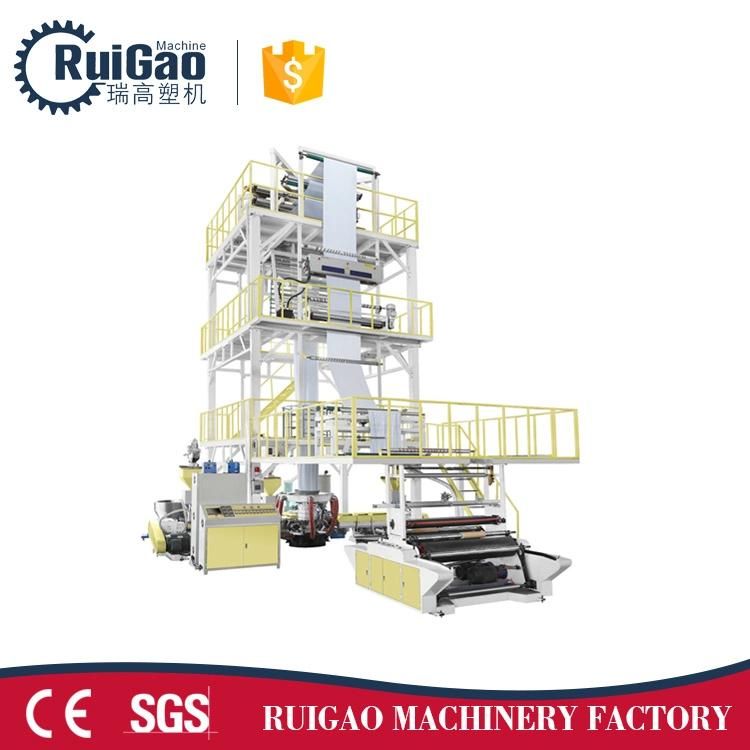

Taiwan Quality Film Blow Machine

Machine Introduction

plastic film extruder machine

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed

in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like

low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).

It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

 Machine Parameters

Main Technical Variables:

Model	SJ-50*3/TP1000	SJ-55*3/TP1200	SJ-60*3/TP1500	SJ-70*3/TP2000
Screw Diameter(mm)	45/50/45	50 /55/50	55/65/55	65 /70/65
Screw Ratio(L/D)	30:1	30:1	30:1	30:1
Screw Speed(r/min)	110	110	110	110
Power of Main Motor(kw)	11/15/11	15/18.5/15	18.5/22/18.5	30/37/30
Range of Die(mm)	¢200	¢300	¢350	¢500
single-sided Thickness of Film(mm)	0.025-0.15	0.025-0.15	0.03-0.15	0.03-0.20
Max.Folding Width of Film(mm)	1000	1200	1500	2000
Max output	150kg/h	160kg/h	180kg/h	200kg/h
Electric Total Capacity(kw)	95	100	120	180
Weight of Machine(kg)	7500	8000	9000	10500
Overall Dimensions (L*W*H)(m)	6.6*2.8*8	6.8*3*8.5	7*3.2*10	8.5*5*10.5

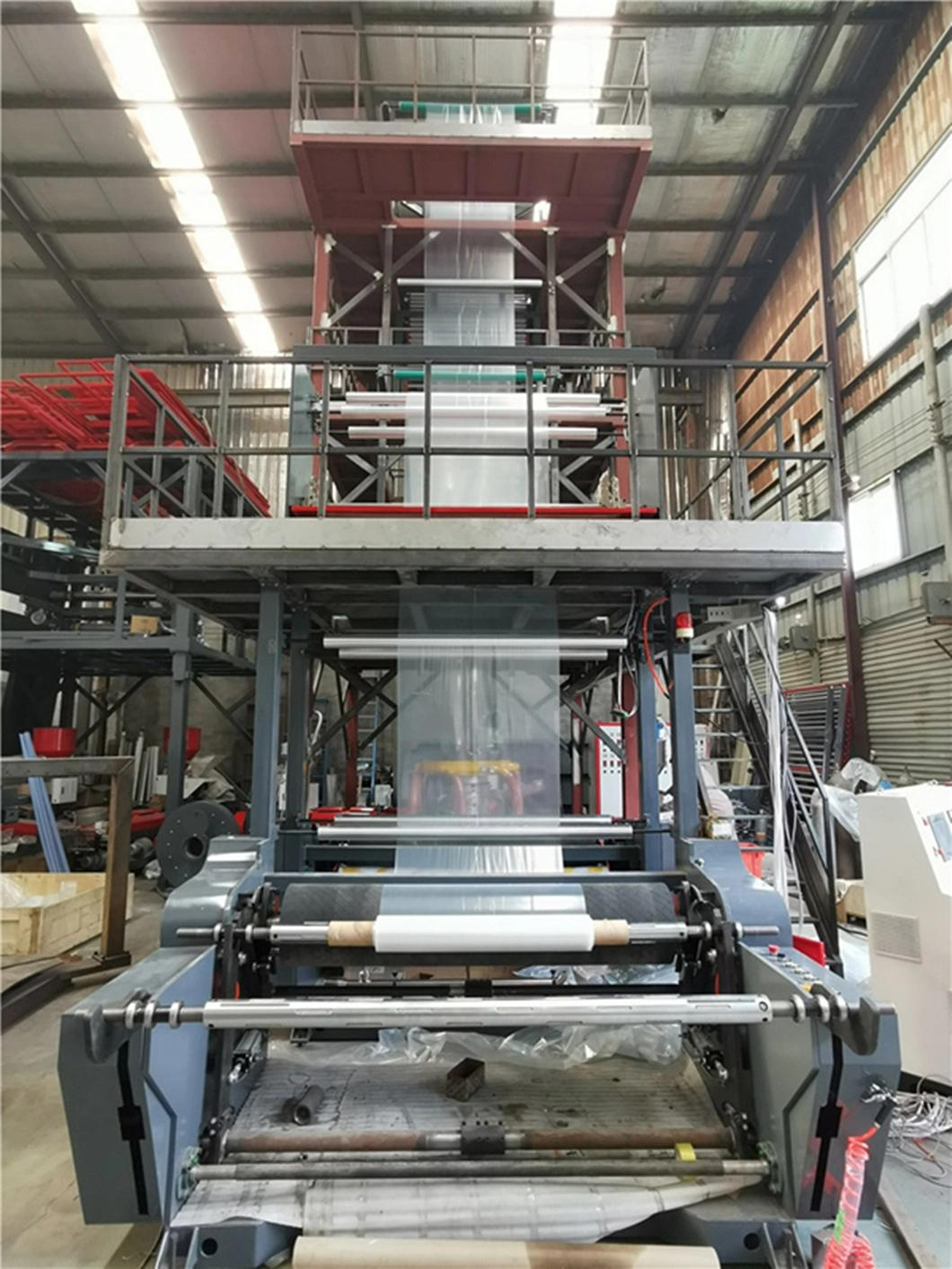

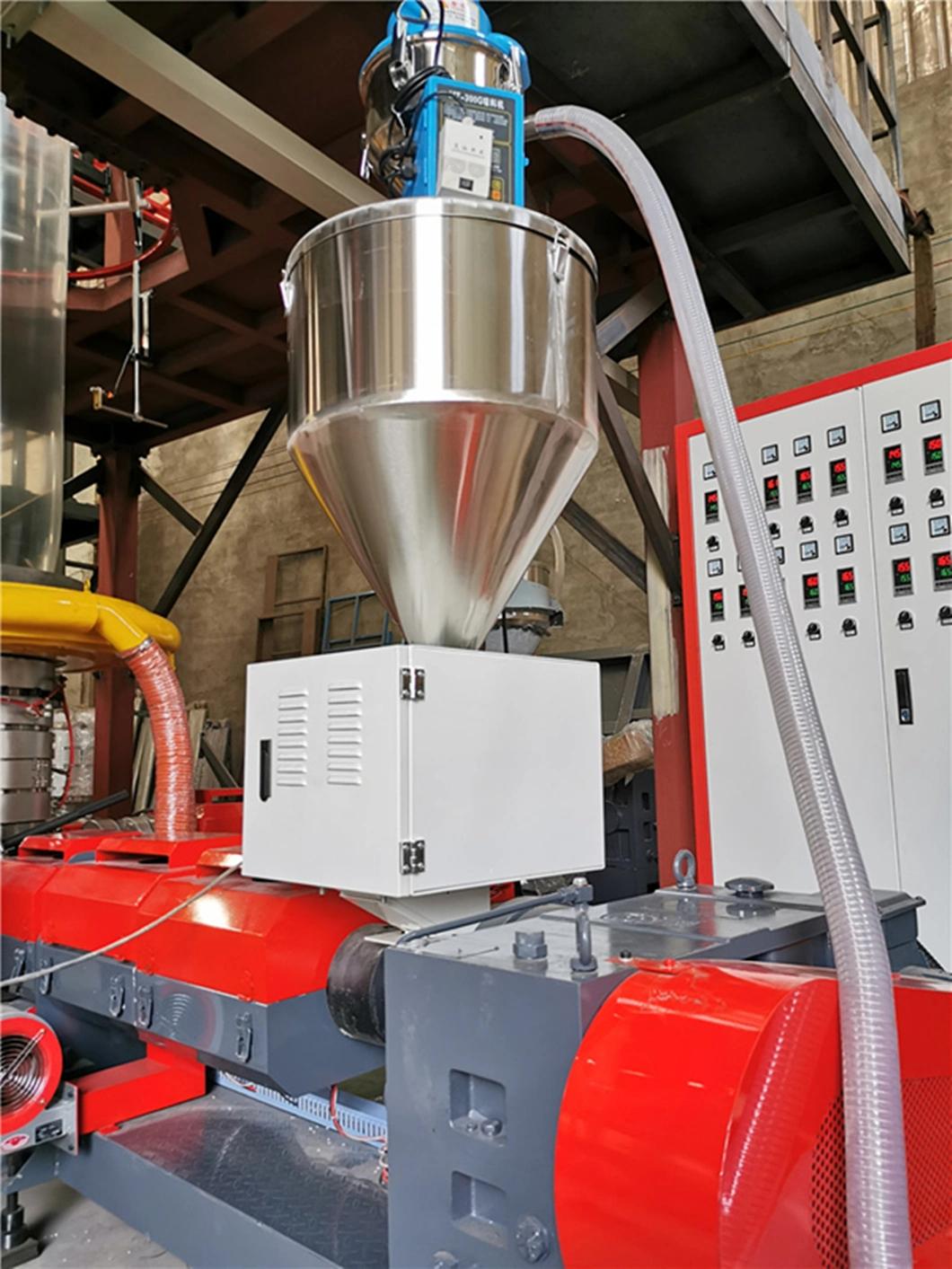

Machine Details
ABOUT  US
RUIAN TPLAST MACHINE FACTORY is located in the south of Zhejiang, founded in 2001. We are a professional producer of film blowing machines, bag making machines, printing machines and plastic recycling machines.

We have a good team for R&D, design and sale. Our engineers have more ten years of experience in Plastic Industry. We can design the machines according to our clients' requirement.

Our markets are South America, Africa, Middle East, EU and Southeast Asia. More than 98% of our products are exported to overseas markets. Exported to USA, Mexico, Greece, Crotia, Columbia, Dominican Republic, Nigeria, Ethiopia, South Africa, Saudi Arab, Israel Etc.
CERTIFICATE

PACKING AND SHIPPING

FAQ
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others

2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.

3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.

4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.



Welcome to contact with us. We will provide Excellent Price and High Quality Machine.
