• Model NO.：JDHP-SH1200
• Screw Diameter：52
• Screw Speed：0-300r,Min
• Injection Weight：420g
• Injection Rate：65g,Min
• Screw Stroke：160mm
• Mold Thickness Incressed：200mm
• Space Between Tie Bar：510*330mm
• Heating Power：10.2kw
• Top Height：70mm
• Weight：3.3t
• Transport Package：Shanghai
• Trademark：Sunway
• Origin：Jiangsu, China
• Production Capacity：10 Set,Month

Basic Info.

Model NO. JDHP-SH1200 Screw Diameter 52 Screw Speed 0-300r/Min Injection Weight 420g Injection Rate 65g/Min Screw Stroke 160mm Mold Thickness Incressed 200mm Space Between Tie Bar 510*330mm Heating Power 10.2kw Top Height 70mm Weight 3.3t Transport Package Shanghai Trademark Sunway Origin Jiangsu, China Production Capacity 10 Set/Month

Product Description

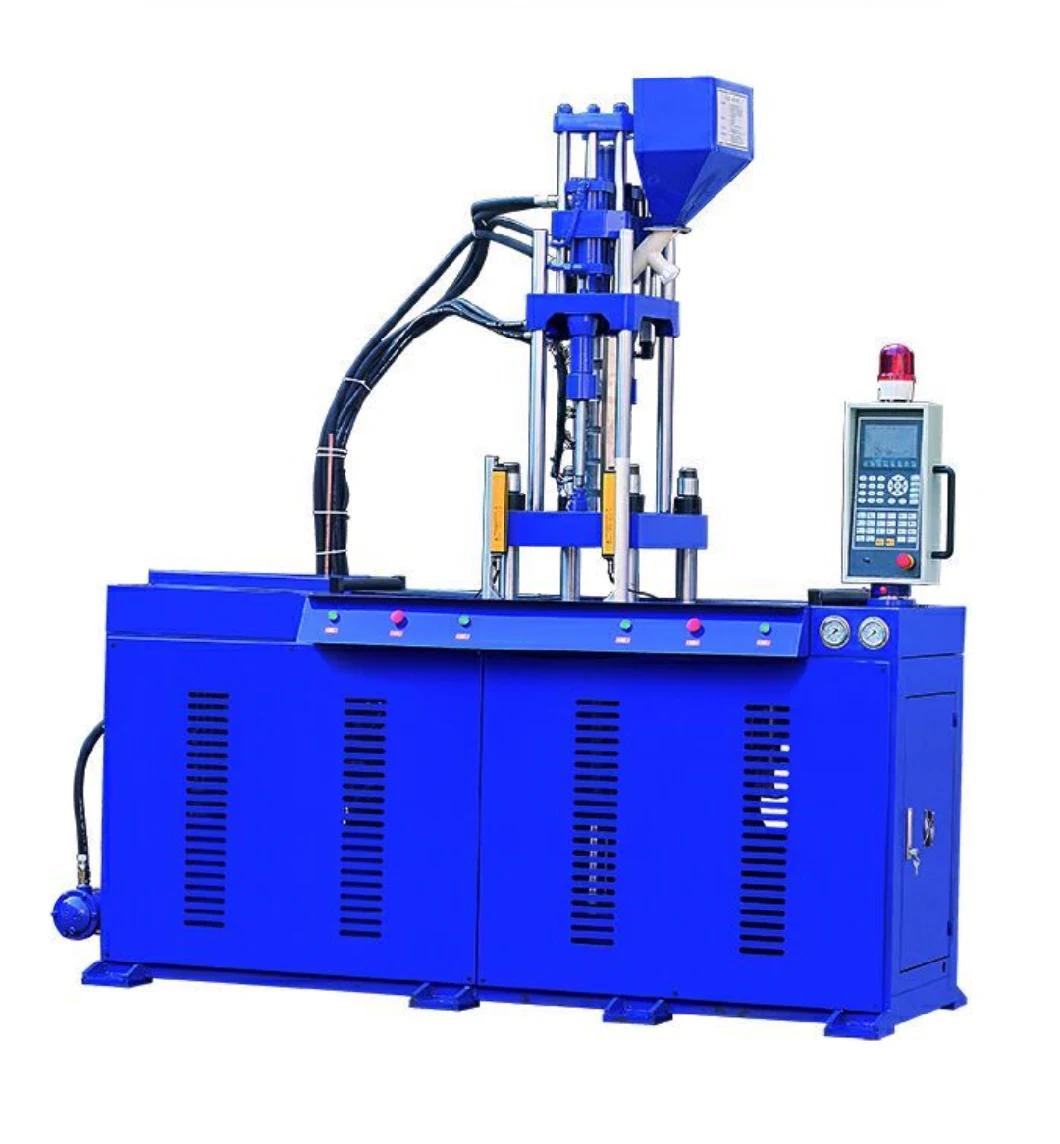

                             Aluminum Plastic Tube Head Molding Machine

Product Discription

Mould Size Diameter (mm): 12.7, 16, 19, 22, 25, 28, 30, 32, 35, 38, 50, 60 (Oval& round for choice)

Main Features

1) Double-mode alternate forming
2) Screw pre-plasticization, fixed and limited feeding, full hydraulic fast and slow mold closing
3) High  mold clamping force
4) Smooth mold movement
5)Electric interlocking
6)Small floor space, easy mold assembly and dissembly
7) Named-brand parts and best body-building metal materials

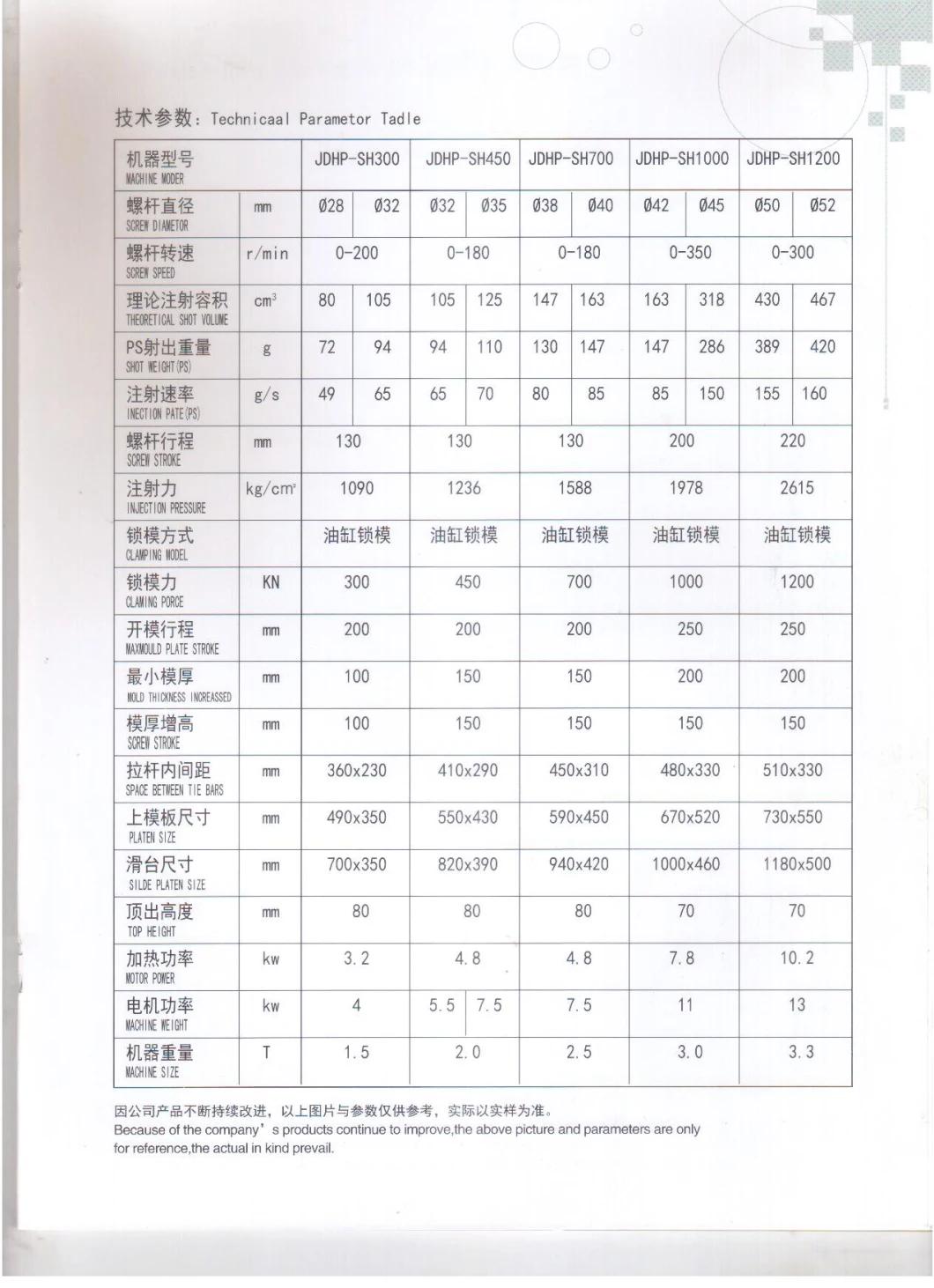

Main Parameters:

Our Service

Pre-sales services                                                              After-sales services

* Inquiry and consulting support.                                                        *Provide layout drawing

*Video conference to see our products                                              * Training how to install and use the machine
* View our Factory.                                                                             * Engineers available to serve aboard

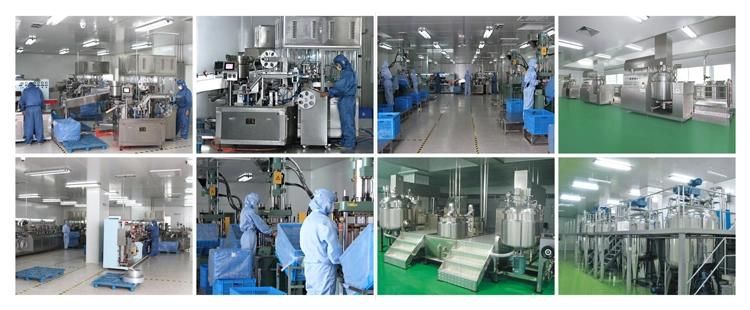

Our Factory                                                                                    *Offer one-stop service

FAQ
Q1:Are you manufacturer? Can we visit your factory?
Answer: Yes, we are a manufacture, and we have an international trading center in Shanghai. And of course welcome to our factory.
Q2: How about your prices?
Answer: Our prices are competitive in our field and also negotiable according to your order quantity.
Q3: How's your products?
Answer: Parts of named-brand, best metals of machine boy are used to assure you of the best quality.
Q4: What's your advantage?
Answer: Compared with our competitors,  we can offer you one-step service.The whole production line including machines, raw material, even toothpaste, cosmetic formulas for free are available.
And more? Please feel free to contact us.
