Plastic Machinery

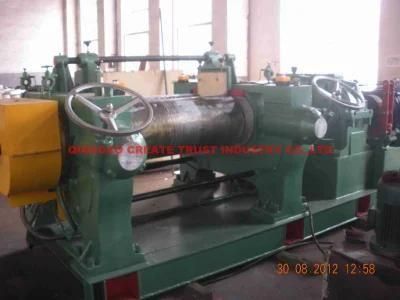

High Technical PVC Mixing Mill (TOP QUALITY)

Qingdao Create Trust Industry Co., Ltd.
  • Roll Design:Casted Alloy,Chrome Plated,Mirror Polish
  • Heating System:Mold Temperature Controller-Oil Heating
  • Reducer:Hardened Gear, Submerged Lubrication
  • Lubrication:Grease or Oil,Automatic by Pump
  • Bearing:High Precision Bearing ,SKF Brand
  • Customized:Customized

Base Info

  • Model NO.:XSK400
  • Transport Package:Wooden Case Safety Packing
  • Specification:CE, ISO9001: 2008
  • Trademark:CX
  • Origin:China
  • HS Code:8477800000
  • Production Capacity:30 Sets,Month

Description

ModelXK-160XK-250XK-360XK-400XK-450XK-550XK-560XK-660
Roll diametermm160250360400450550560-510660
Roll working length 32062090010001200150015302130
Front roll linear speedm/min916.316.719.321.822.527.228
Speed ratio of rolls 1:1.351:1.11:1.251:1.271:1.271:1.21:1.21:1.24
Max roll spacemm4.5810101216150.5-15
Compound feeding capacitykg1-210-1520-2518-355050-6550-65165
Motor powerkW5.518.530455511090240
Dimensions
 Lmm11332722420049205405664662707280 Wmm9201115178017801740273622823400 Hmm13941345176018001790210520002530Gross weightt~2~3.2~6.5~8~11.4~22~22.5~49

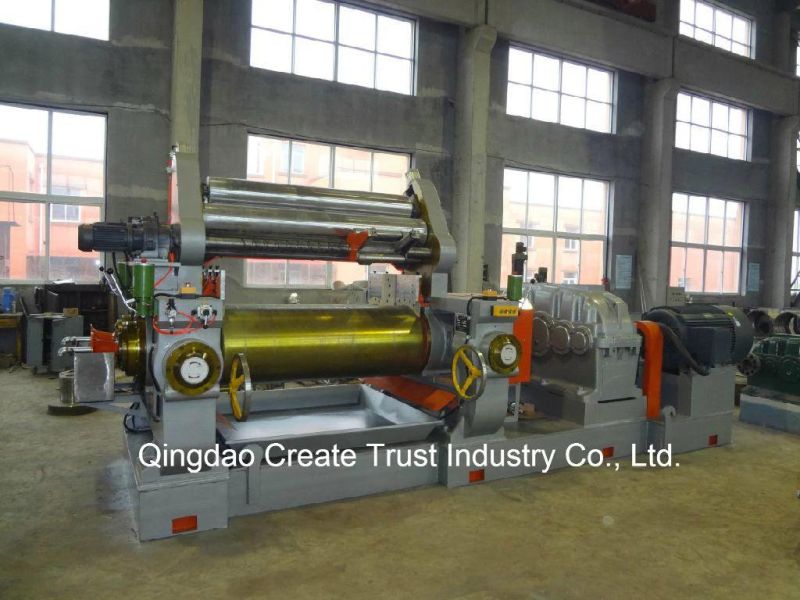

High Technical PVC Mixing Mill (TOP QUALITY)
Service of us:

The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.

All we do is for longterm cooperation , " CREATE TURST" !
