• Trademark：OULIN
• Model NO.：51,105
• Origin：China
• HS Code：84779000
• Production Capacity：500-700 Sets Per Year

Basic Info.

Model NO. 51/105 Trademark OULIN Origin China HS Code 84779000 Production Capacity 500-700 Sets Per Year

Product Description

Detail Information For Bimetal Quality SKD61 Liner 51/105 Twin Conical Screw Barrel for PE PVC WPC Sheet Profile:

Application: bimetal quality, produce WPC sheet& profile

Customer's Requirement: good abrasive resistance.

Screw's quality: 38CrMoAlA as base steel, screw's extrude zone will be weld with alloy layer, 10%-20% tungsten carbide powder will be added into alloy layer.

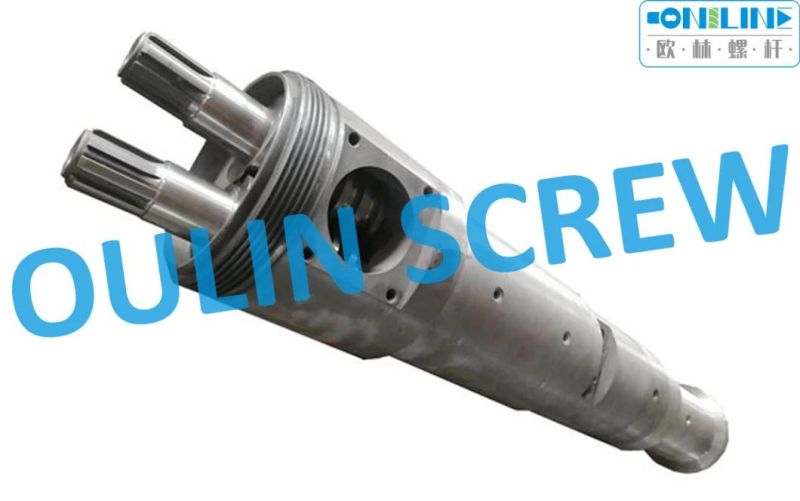

Barrel's quality: barrel will be made into two parts, SKD61 liner will be pushed into extrude zone, this part's abrasive resistance is excellent, the rest part is made by 38CrMoAlA.


Detail Information For All Brand Twin Conical Screw and Barrel:

Application:
For the production of pipes, profiles, sheets, such as SPC floor, PVC wall board, PVC wood plastic, PE wood plastic, high molecular sheet, baking-free brick plate, high calcium plate, high calcium pipes, high calcium profiles, soft PVC sheet, PVC foam board, PP, PE, ABS, PVC, granulation and etc.

Specification:
24/52, 35/76, 45/90, 45/100, 50/105, 51/105, 55/110, 55/120,58/124, 60/125, 65/120, 65/132, 68/143, 70/135,70/140, 75/150, 80/143, 80/156, 92/188, 105/213,110/220 and others.

1: Factory can produce twin conical screw and barrel according to your drawings.
2: Engineer can be sent to your factory for measurement, company can produce screw and barrel for most extrusion brand.

Quality:
1: Nitriding quality------ base material: 38CrMoAlA(JIS SACM645)
2: Bimetallic quality-----Good abrasive& corrosive resistance.

Heat treatment:
Advance hardening and tempering
Nitriding treatment

Technical Parameters:
Nitriding depth: 0.50mm-0.80mm
Nitriding hardness: HRC56-58
Surface roughness: Ra 0.4
Screw straightness: 0.015mm
Alloy layer depth: 2mm-3mm
Alloy layer hardness: HRC56-64

OULIN SCREW:  YOUR LOYAL PARTNER FOR SCREW AND BARREL
