• Model NO.：PPD-Y800

Basic Info.

Model NO. PPD-Y800

Product Description

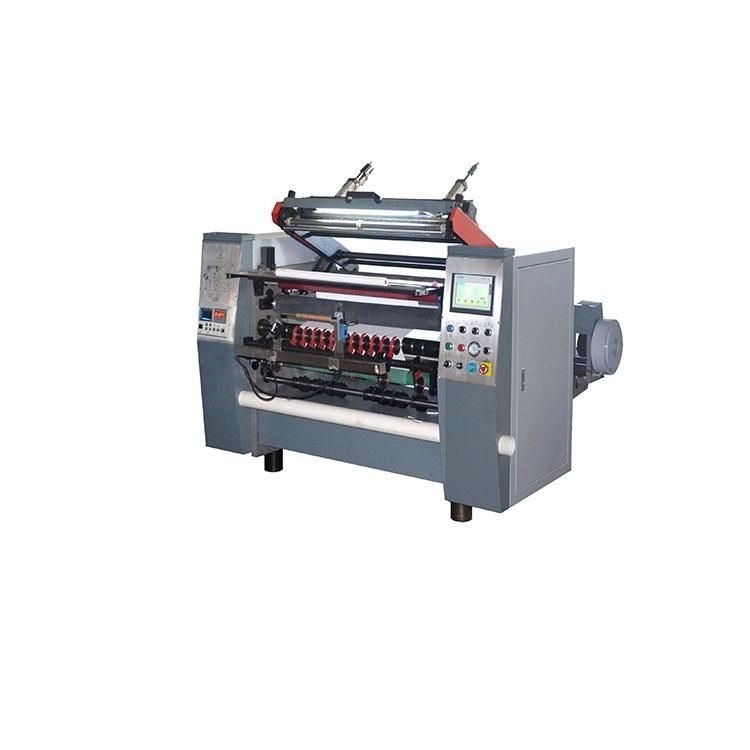

Automatic paper roll slitter rewinder is mainly for making slitting roll of all kinds of small paper rolls.
It is with automatic core loading machine,easy to change of the cutting kinves,automatic chain loading of the jumbo roll,automatic slitting machine to make the production very faster,user friendly.
The machine adopts Simens PLC and Touch screen for ensure the quality standard.all electronics parts are high standard sleection.

Main specifications:
Machine name:Automatic paper roll slitter rewinder
Model:PPD-Y800
Mother roll width:Max 800 mm
Mother roll max diameter:1200mm
Mother roll inner core diameter:76mm/3inch
Slit roll width:20mm minimum
Slit roll inner core diameter:12.7/15/18mm etc
Slit roll outer diameter:max 180mm or customized
Speed:max 150m/min
Power:4kw
Voltage:220/380/415/450v option
NOTE:Different sizes can be customized.

Paper Products:
1.Thermal Paper Rolls,POS - Electronic Cash Register Rolls.
2.ATM - Bank Rolls,Bank Tele printer Rolls.
3Receipt Ticketing Machine Rolls,Medical Report Rolls.
4.Electronic Credit Card Slip Rolls,NCR Rolls.
5.Bond Paper Rolls,All Type Of Small Paper Rolls.
