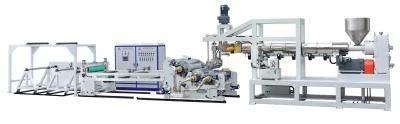

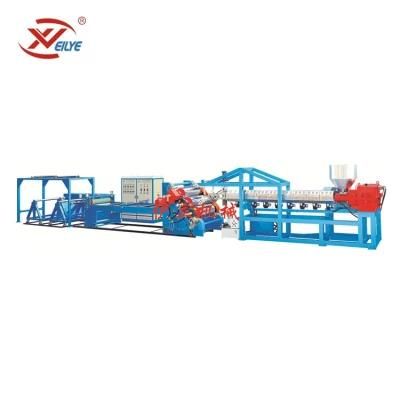

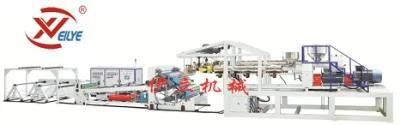

Top Seller Plastic PP PS Sheet Extruder/PP PS Sheet Roll Production Line
Shantou Elite Machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Sheet Extruder
- Plastic Processed：PP
- Product Type：Plastic Sheet Extruder
- Feeding Mode：Multiple Feed
Base Info
- Model NO.：SLSE110-900
- Assembly Structure：Separate Type Extruder
- Screw：Single-Screw
- Automation：Automatic
- Material：PP, PS, PE, HIPS
- Sheet Width：Within 750mm
- Sheet Thickness：0.2-2.0mm
- Screw L/D：33:1
- Motor Power：75-110kw
- Output：200-350kg,H
- Inverter：Taiwan Delta
- Contactor, Button：Schneider
- Temperature Meter：FUJI
- PLC：Siemens
- Touching Screen：Siemens
- Extruder Speed Reducing Box：Jc Duoling
- Roller Speed Reducer and Motor：Guomao
- Specification：13000X2000X2500mm
- Trademark：EILYE
- Origin：China
- Production Capacity：10 Sets Per Month
Description
PP,PE,HIPS,PSSheet thickness mm 0.3~2.5 Sheet thickness tolerance mm ±0.01 Screw specification φ110×33 Sheet efficient width mm ≤850 Adjustable Max. extrusion kg/h 280 Speed m/min ≤20 Power kw 120 In fact, about 60% Dimension L×W×H mm 13000×2000×2500
2,Composing
3. Application
Plastic extrusion Machine are mainly produce plastic sheets like PP PS PET PE materials, etc.
2,Composing
| No. | Designation | Unit | Qty. | Remark |
| 1 | φ110extruder | set | 1 | |
| 2 | Hydraulic net-change device | set | 1 | |
| 3 | Die | set | 1 | |
| 4 | Inclined rolling device | set | 1 | |
| 5 | Cooling and cutting device | set | 1 | |
| 6 | Traction device | set | 1 | |
| 7 | Collection device | set | 1 | |
| 8 | Controlling cabinet | set | 1 |
3. Application
Plastic extrusion Machine are mainly produce plastic sheets like PP PS PET PE materials, etc.
