HDPE LDPE Plastic Extrusion Film Blowing Machine
RUIAN YUNBANG MACHINE CO., LTD.- Warranty：One Year
- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1200mm
- Screw Diameter：65mm
- Automation：Automatic
Base Info
- Model NO.：SJ
- Computerized：Computerized
- Machine Weight：2t
- Certification：CE, ISO9001:2008
- Film Thickness：0.005-0.08mm
- Output：60-70kg,H
- Main Motor：22kw
- Screw L/D：30:1
- Transport Package：Film Package or Wooden Case
- Specification：SGS
- Trademark：YUNBANG
- Origin：China
- HS Code：84773090
- Production Capacity：15 Sets,Month
Description

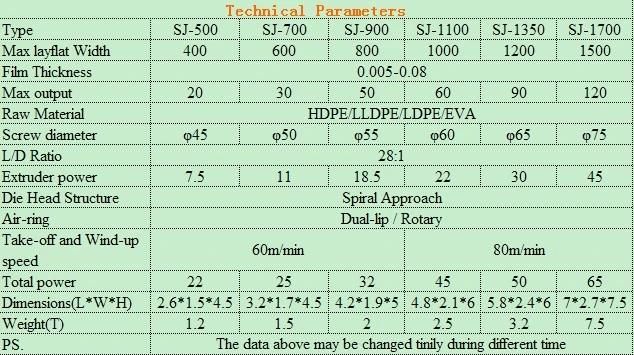

SJ-60-1100
60
1000
60
HDPE/LLDPE/LDPE/EVA
Film Thickness(mm)
0.005-0.08
0.005-0.08
0.005-0.08
0.005-0.08
0.005-0.08
0.005-0.08
Screw Max.
Rotation Speed
10-80r/min
10-80r/min
10-80r/min
80r/min
120r/min
120r/min
Screw L/D Ratio
28: 1
28: 1
28: 1
28: 1
28: 1
28: 1
Extruder Driving power(kw)
5.5-7.5
7.5-11
15-18.5
18.5
22
37-45
The way of screen
changing of extruder
Hydraulic/pneumatic/manual
twin-station changing screen quickly(as customer request)
Die structure
Spiral Approach
Air-ring structure
singl lip or double lip
Take-off wond-up speed
10-60m/min
10-60m/min
10-60m/min
10-80m/min
10-80m/min
10-80m/min
Overall Dimensions(LxWxH)M
2.6x1.5x4.5
3.2x1.7x4.5
4.2x1.9x5
4.8x2.1x6
5.8x2.4x6
7x2.7x7.5
Weight(T)
1.2
1.5
2
2.5
3.2
7.5
Other size of this machine avaible
