• Condition：New
• Motor：Siemens Brand
• Inverter：ABB Brand
• Contactor：Schneider
• Temperature Controller：Omron,FUJI,Rkc Brand
• Transport Package：Film, Container
• Origin：China
• Production Capacity：20sets Per Month

Basic Info.

Condition New Motor Siemens Brand Inverter ABB Brand Contactor Schneider Temperature Controller Omron/FUJI/Rkc Brand Transport Package Film, Container Origin China Production Capacity 20sets Per Month

Product Description

Detail description:
PVC pipe production line, we can supply different machines for diameter from 16mm to 800mm .

For different diameter range pipe,will be equipped with corresponding different production lines.
we can supply PVC pipe production lines for diameter:
16mm,20mm,25mm,32mm,40mm,50mm,63mm,
75mm,90mm,110mm,125mm,160mm,200mm,250mm,280mm,315mm,355mm,400mm,
450mm,500mm,550mm,630mm,710mm,800mm.

for those small diameter pipe,such as not more than 32mm pipe, can 4 cavity;
such as not more than 110mm diameter pipe, can 2 cavity.
for those big diameter pipe, such as more than 110mm, will be single cavity.

16-32mm is small diameter pipe, generally settle four cavity machine(produce 4 pipe at same time),
also can settle two cavity machine(produce 2 pipe at same time).

4 cavity pvc electric conduit pipe making machine with SJSZ65/132 as main extruder, specially designed for PVC electrical tube, water supply pipe extrusion .

Four cavity PVC pipe production line is composed with main conical twin screw 65/132 extruder , 4 cavity mould, 4 cavity cooling calibration tank, 4 station haul off, 4 station cutter and 4 station stacker ,

which can extrude four pipes at same time on one machine, increasethe capacity a lot and reduce production time, so it can save investment cost in factory building and production.

Pipe Diameter range: 16mm, 20mm, 25mm, 32mm. Four Pipe Outlets.

the 16-32mm complete 4outles PVC pipe production line will include:
1,DTC-600 screw conveyor;
2,SRL-Z200/500 PVC powder hot/cold mixer unit;
3,ZJF300 spring conveyor;

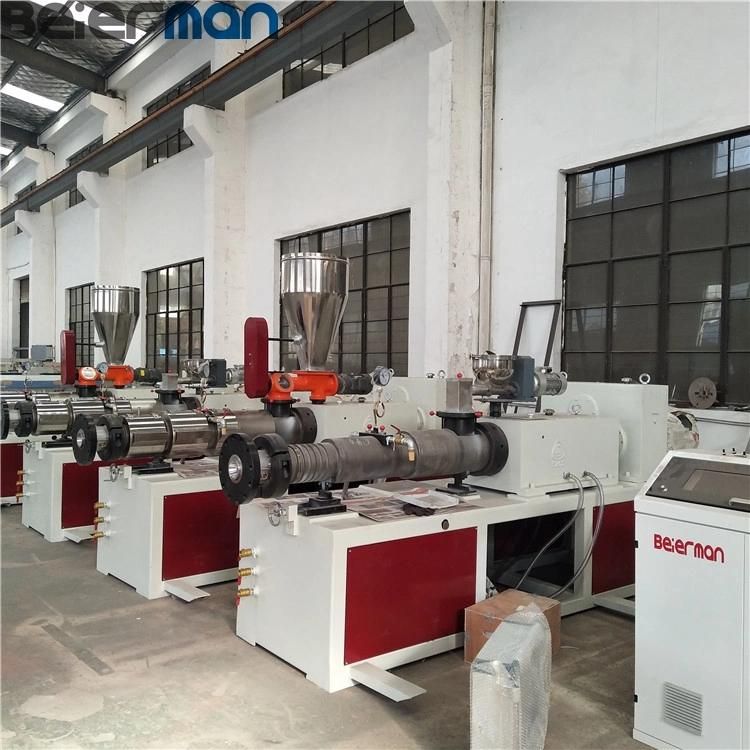

4,SJSZ65/132 conical twin screw extruder;

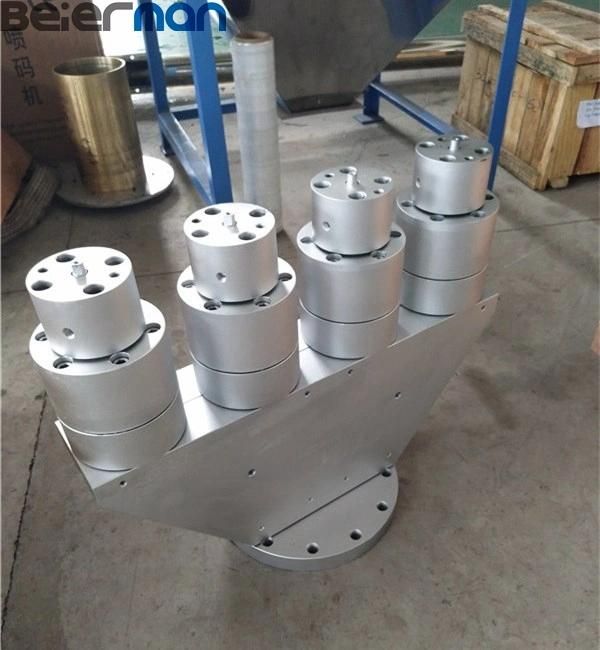

5,mould for 16-32mm diameter, :16mm,20mm,25mm,32mm. four cavity

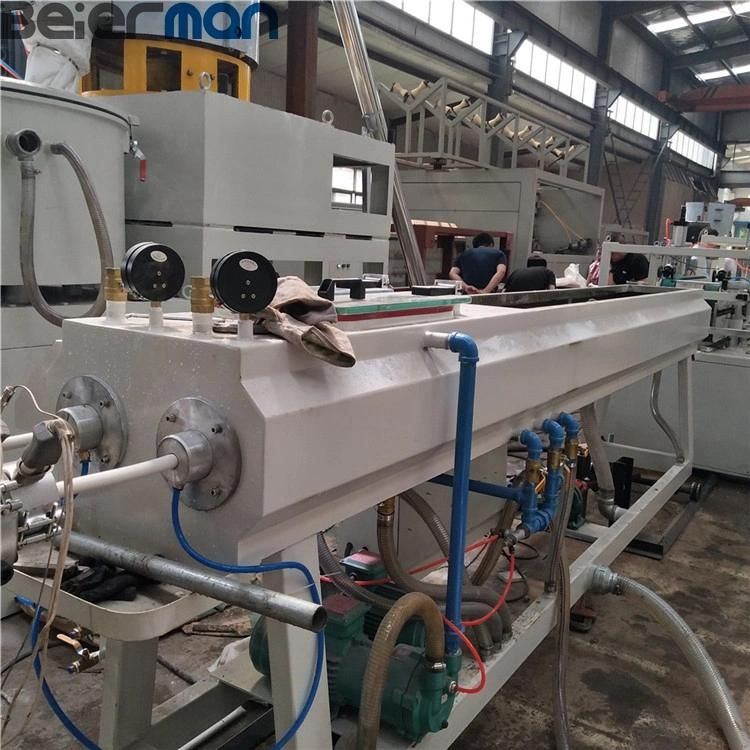

6,vacuum forming tank,four cavity

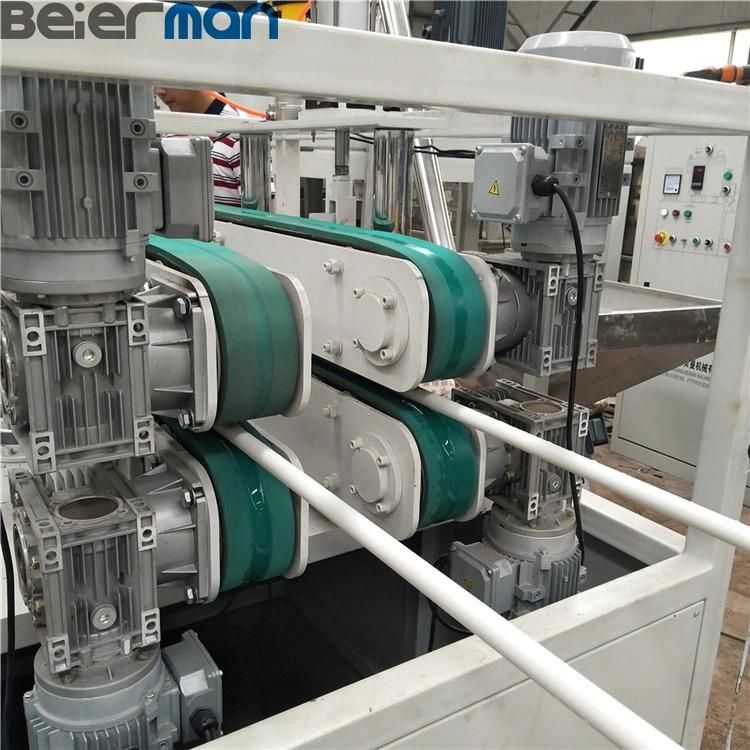

7,haul off-cutting machine,four cavity
8, stacker(or belling machine,up to customer's choice)

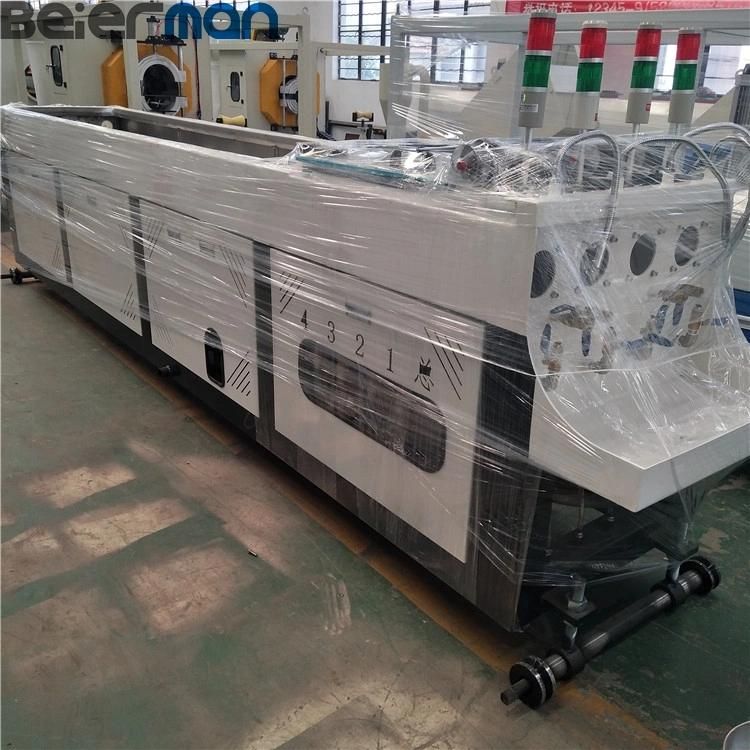

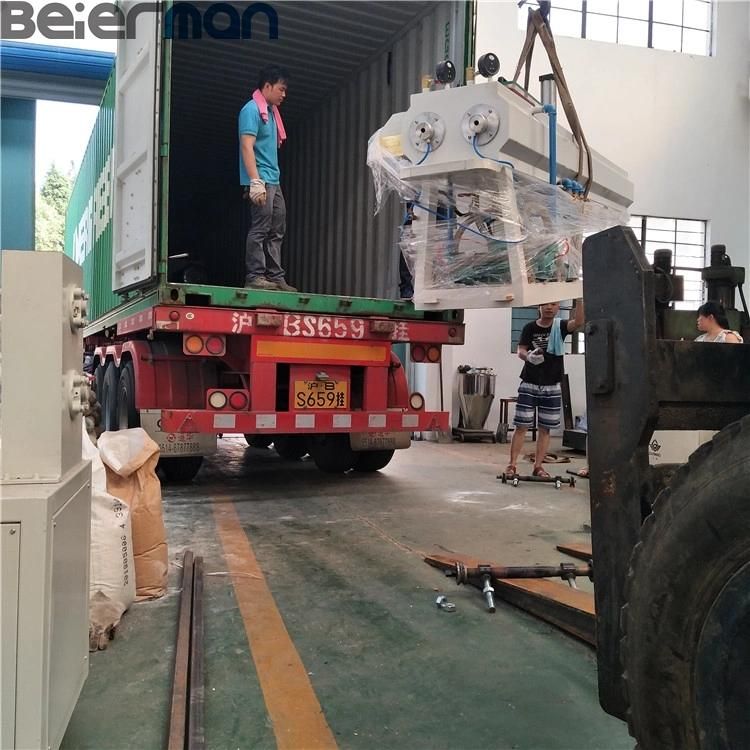

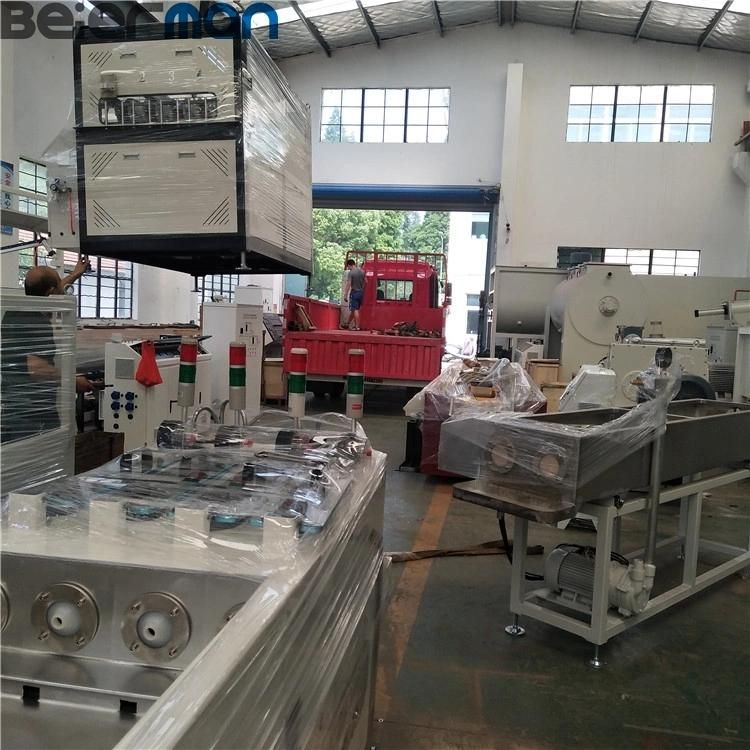

Packaging and shipping:

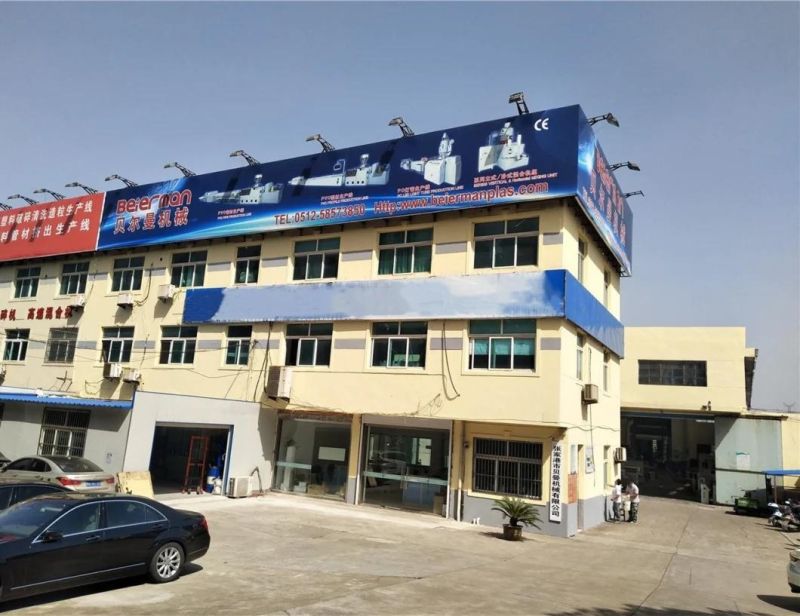

Company introduction:

- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.

- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairmen.

- we have already get CE certificate for our machines and factory, which ensured the high quality level of all machines we are producing

- we will attend several home and abroad plastic machines industry fairs to show the customers our quality, machines and services.

- there will be 1-2 new produced machines will be showed to the customers every year.

- we already established cooperation with the customers from Middle East, Southeast Asia and south America countries.

Pre-sales services:

we will take customers to visit our factory and check the machines quality from airport/bus station/train stations

- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method

After-sales services:

we will offer electric diagram, installation diagram, usage manual

- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services.

- we will offer customers spare parts at cost prices all life long of the machines.

Exhibition:

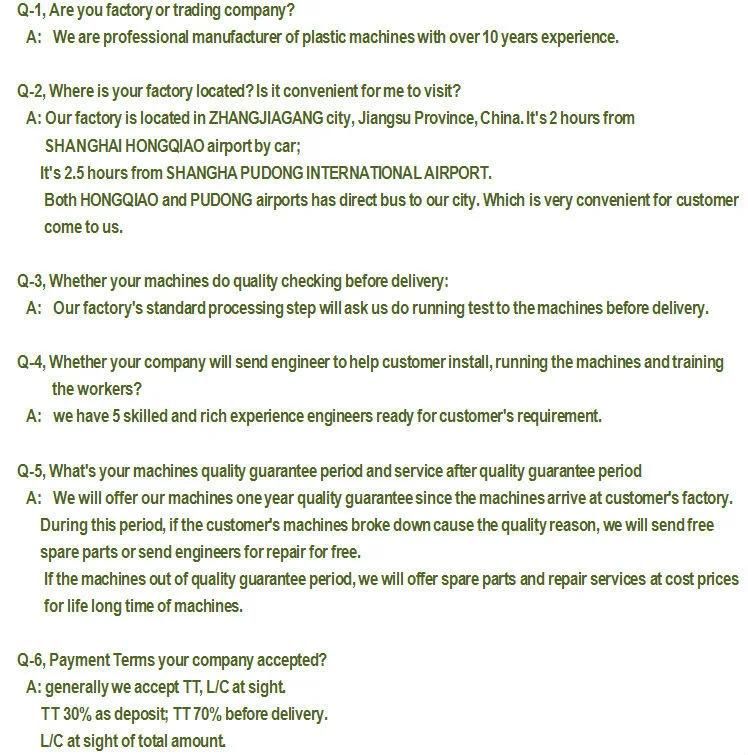

FAQ:
