• Model NO.：PL
• Engagement System：Intermeshing
• Screw Channel Structure：Non Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Non-Computerized
• Raw Material：Pet Flakes
• Inverter：ABB Brand
• Temperature Controller：Japan Rkc
• Strap Width：12,16,18,19mm
• Strap Thickness：0.8,0.9,1.0mm
• Name：Pet PP Strap Extrusion Production Line
• Product Name：PP Strapping, Pet Strapping
• Machine Warranty：One Year
• Machine Color：Customized
• Main Extruder：Single Screw Extruder
• Extruder Diameter：65mm, 90mm
• Motor Brand：Siemens Beide
• Strapping Thickness：0.6-1.8mm
• Strapping Width：9-32mm
• Keywords：PP Pet Strapping Production Line
• Transport Package：Wood Package
• Specification：depends
• Trademark：Plastar
• Origin：China
• HS Code：8477800000
• Production Capacity：100sets,Year

Basic Info.

Model NO. PL Engagement System Intermeshing Screw Channel Structure Non Deep Screw Exhaust Exhaust Automation Automatic Computerized Non-Computerized Raw Material Pet Flakes Inverter ABB Brand Temperature Controller Japan Rkc Strap Width 12/16/18/19mm Strap Thickness 0.8/0.9/1.0mm Name Pet PP Strap Extrusion Production Line Product Name PP Strapping, Pet Strapping Machine Warranty One Year Machine Color Customized Main Extruder Single Screw Extruder Extruder Diameter 65mm, 90mm Motor Brand Siemens Beide Strapping Thickness 0.6-1.8mm Strapping Width 9-32mm Keywords PP Pet Strapping Production Line Transport Package Wood Package Specification depends Trademark Plastar Origin China HS Code 8477800000 Production Capacity 100sets/Year

Product Description

PET PP Strap Extrusion Production Line

PET PP packing strap production is a new model of packing material machine, applying to advanced technology overseas. PET packing strap is the best replacement for old packing material, and is accepted in word packing industry. Nowdays, the PET PP packing strap hasebeen widly used in many industry such as paper steel, chemical fiber, cotton, printing wood and so on.

Descripition:

This machine is mainly used to make PET strap ,PP packing strap.

Our machines adopts the PLC control to realsize the whole line auotmatic production.

Using the melting pump and pressure sensor ensure the production stable and strap quality control.

The raw material can be 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.



Advantage:

1.Use 100% Recycled PET/PP Flakes to reduce the cost.

2.Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping.

3.Special design hot forming tensile tank to make good forming ,equal width,straight strap.


Function

 1) PP PET raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;

2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;

3) With the multi-purpose machine, produce the PP PET straps in different specifications directly and dont need to change the mould head;

4) Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade;

5) Low Energy consumption, but high production capability;

6)Easy to operate, save the manpower and two persons for one production line on average.

Machine parameter:

Model	Capacity (kg/h )	Strap size (mm)	Installed Power (KW)	Manpower	Machine size (L*W*H m)
SJ65/33 Single strap	50~60	9~19	85	1~2	35*4*5
SJ75/33 Single strap	80~100	9~19	100	1~2	38*4*6
SJ75/33 Double strap	80~120	9~19	110	1~2	40*4*6
SJ90/33 Double strap	120~150	9~19	150	1~2	45*5*7
SJ120/33 Double strap	150~200	9~19	220	1~2	45*5*7

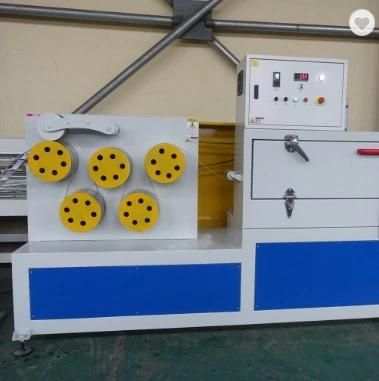

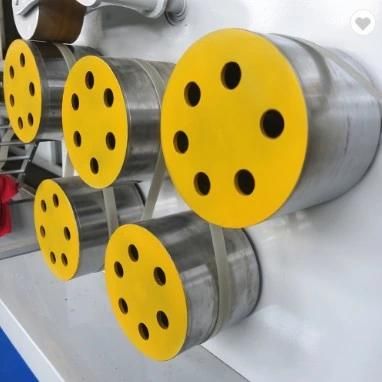

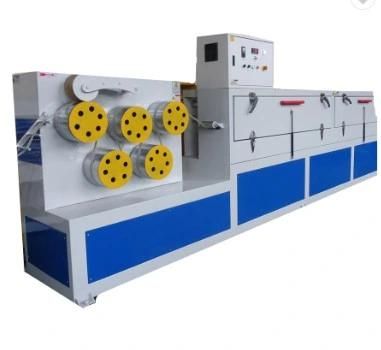

Machine pictures for reference:
