Industrial Double Shaft Shredder with Replaceable Blade Is Used to Crush Domestic Waste

Qingzhou Aoerheng International Trade Co., Ltd.
  • After-sales Service：Lifelong
  • Warranty：2years
  • Type：Cutting Shredder
  • Raw Material：Domestic Garbage
  • Structure：Top Feed
  • Knife Classification：Piece Knife Crusher

Base Info

  • Model NO.：HEHA-2S0308
  • Knife Roll：Solid Knife Roller
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008, QS, UL, GMP
  • Moving Knife Material：Special Alloy Steel
  • Fixed Knife Material：Special Alloy Steel
  • Bearing Pedestal：Split Type
  • Crushing Case Body：Steel Plate Welding
  • Blade Thickness：15-35(mm)
  • Motor Power：18.5*2(Kw)
  • Tear Cavity Size：800*620*330(mm)
  • Transport Package：Wooded Box and Bulk
  • Specification：Shredder with capacity of 0.8-1.6 T , h
  • Trademark：Aoerheng
  • Origin：China
  • HS Code：84778000
  • Production Capacity：50000 Sets , Year

Description

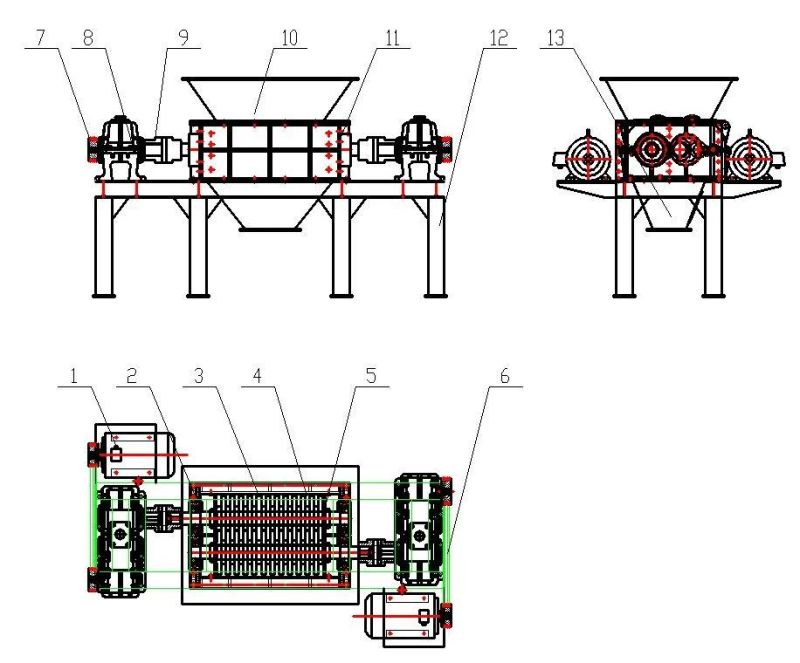

Waste paper, plastic, metal, cloth2.Kitchen WasteFood such as leftovers, bones, vegetable roots and leaves3.Harmful WasteWaste batteries, waste fluorescent tubes, waste mercury thermometers, expired drugs4.Other wasteIncluding bricks, tiles, ceramics, muck, toilet waste paper and other wastes that are difficult to recycle in addition to the above types of wastes3.structure drawing and name:

Industrial Double Shaft Shredder with Replaceable Blade Is Used to Crush Domestic Waste1Electrical motor 2Lock nut 3Moving cutter head
4Fixed knife 5Mainly axis6V-belt
7Belt pulley 8Reducer9Coupler 10Feed Hopper11Bearing seat12Steel frame13Out hopper

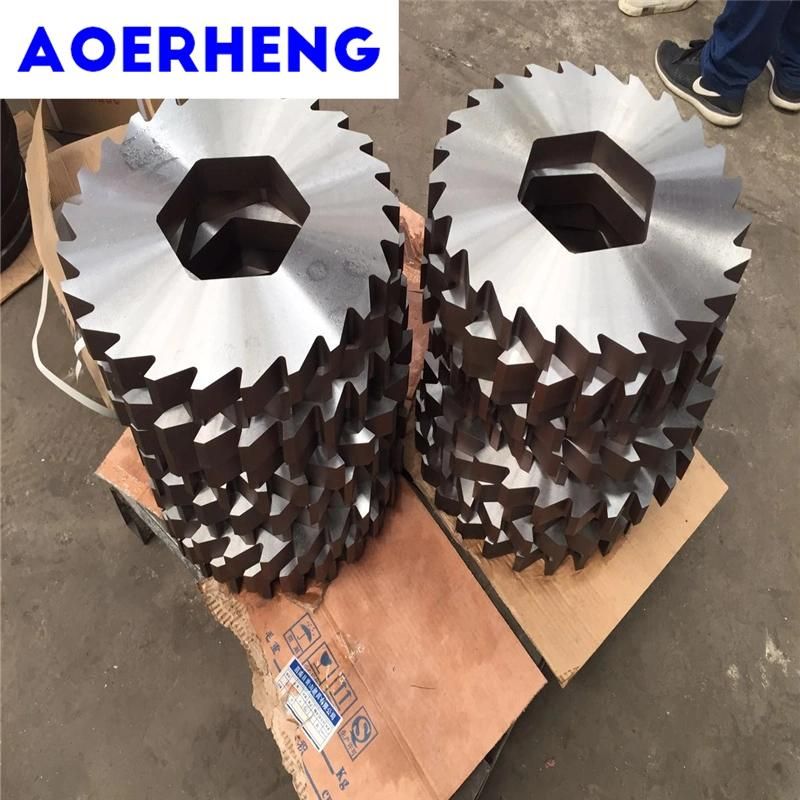

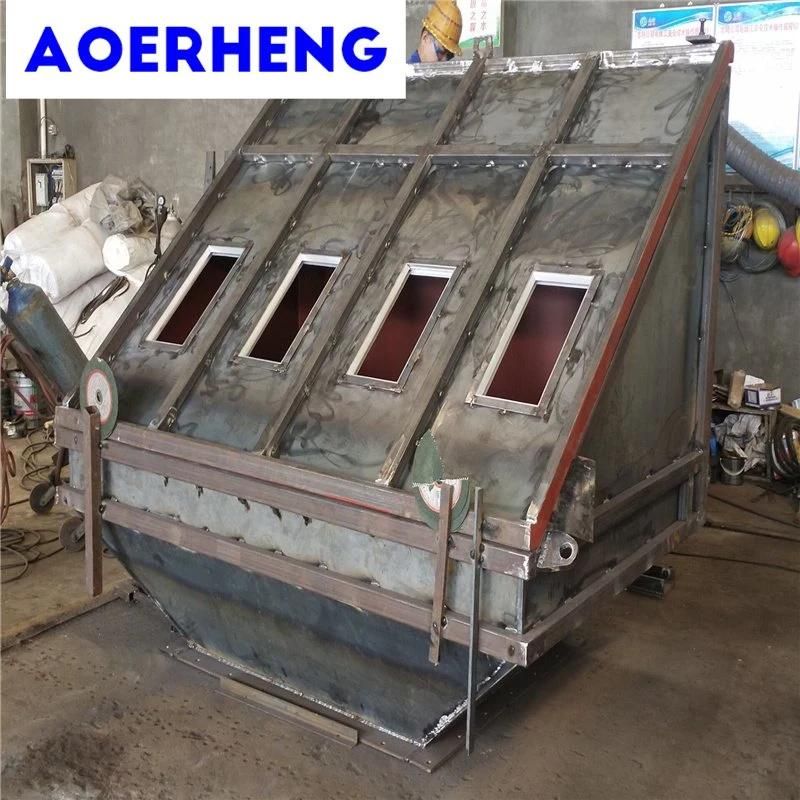

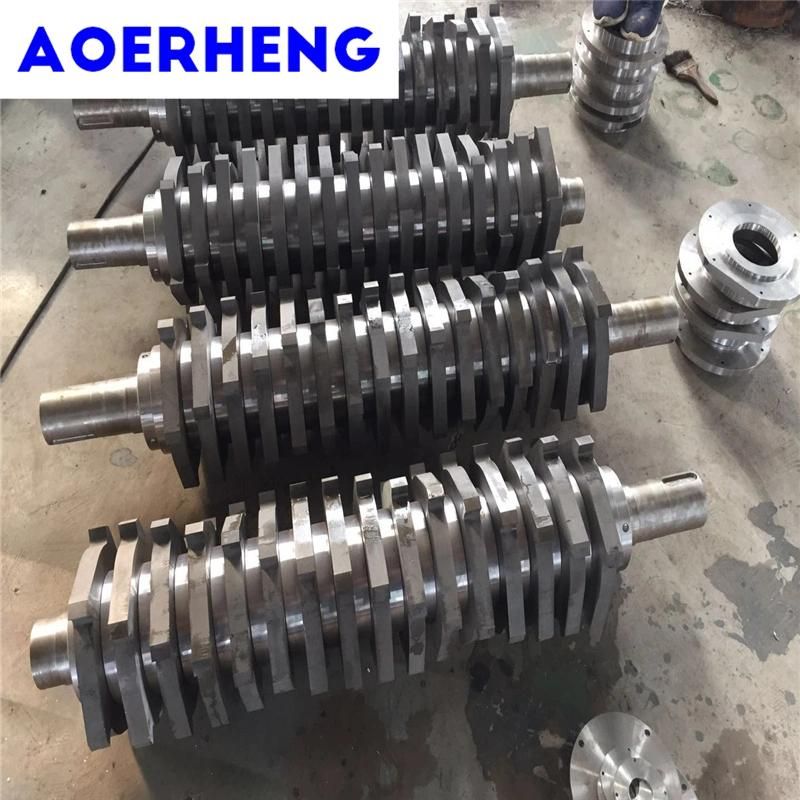

4.Mainly part picture:
 Industrial Double Shaft Shredder with Replaceable Blade Is Used to Crush Domestic WasteIndustrial Double Shaft Shredder with Replaceable Blade Is Used to Crush Domestic WasteIndustrial Double Shaft Shredder with Replaceable Blade Is Used to Crush Domestic Waste
5.Shredder Structure component:
 1        The whole equipment of double shear shredding machine includes motor,.reducer. cutter shaft. frame component (cutter shaft and frame composed of crushing chamber). inlet and outlet hopper. bracket. electrical control cabinet and so on. It through the crushing chamber of the two groups of cutter shaft opposite rotation. cutter disc opposite cross rotation. shear. tear. extrusion and other effects on the material to reduce the size of the material. Excellent crushing effect for hard materials. for difficult to handle tough materials. such as carpets. mattresses. tires and other materials can also be easily torn.2
 The machine has a very high crushing efficiency. the capacity per hour can choose from 0.3 tons to 50 tons. the particle size of crushed materials can choose from 8mm to 300mm.3


   According to different materials and handling capacity. zt provides specific blade design and cutter tooth design as well as heat treatment and surface treatment process of cutter head to achieve the desired crushing effect and production efficiency.

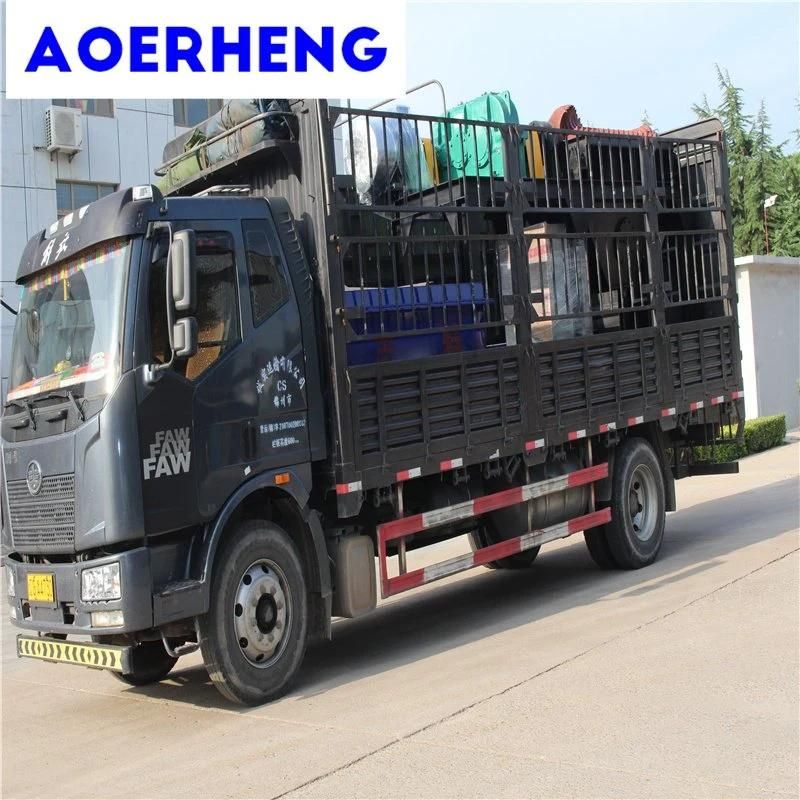

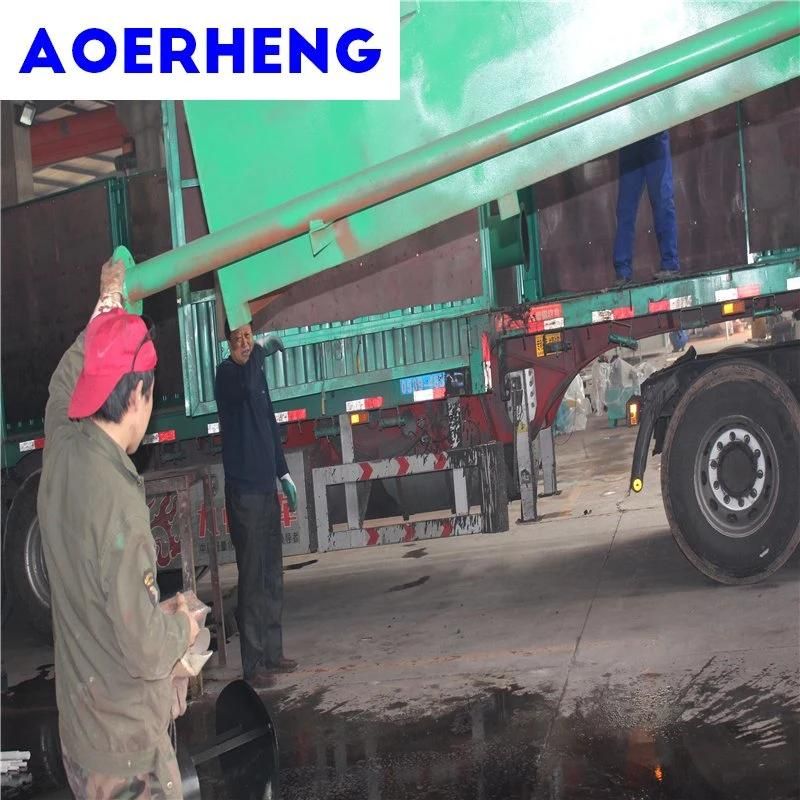

 6.Shredder packing and transportation:

Industrial Double Shaft Shredder with Replaceable Blade Is Used to Crush Domestic WasteIndustrial Double Shaft Shredder with Replaceable Blade Is Used to Crush Domestic Waste7.Our customer:
 Industrial Double Shaft Shredder with Replaceable Blade Is Used to Crush Domestic WasteIndustrial Double Shaft Shredder with Replaceable Blade Is Used to Crush Domestic WasteIndustrial Double Shaft Shredder with Replaceable Blade Is Used to Crush Domestic Waste
8.Our service:



    For most of the machines, the quality is guaranteed for one year since the date of shipment except wearing parts. we supply the

on-line service for all the machines, and also supply the spare parts all the time with cost price. for some complicated machine or

plant. we can send our engineer overseas too
.
