Plastic Washing Line Dewateringmachine Plastic Flake Dryer
GUANGZHOU PANYU QIANGYE MACHINERY CO., LTD.- After-sales Service：Video Support
- Warranty：1 Year
- Material Processed：Plastic Flakes
- Plastic Type：PE
- Screw：Single-Screw
- Automation：Automation
Base Info
- Model NO.：VE-420
- Computerized：Non-Computerized
- Certification：CE
- Name：Plastic Dewatering Machine
- Transport Package：Warp Film
- Specification：Machine Size: 2240*960*2440mnm
- Trademark：QIANGYE
- Origin：Guangdong, China (Mainland)
- HS Code：8421191000
- Production Capacity：800-2000kgs,Hr
Description

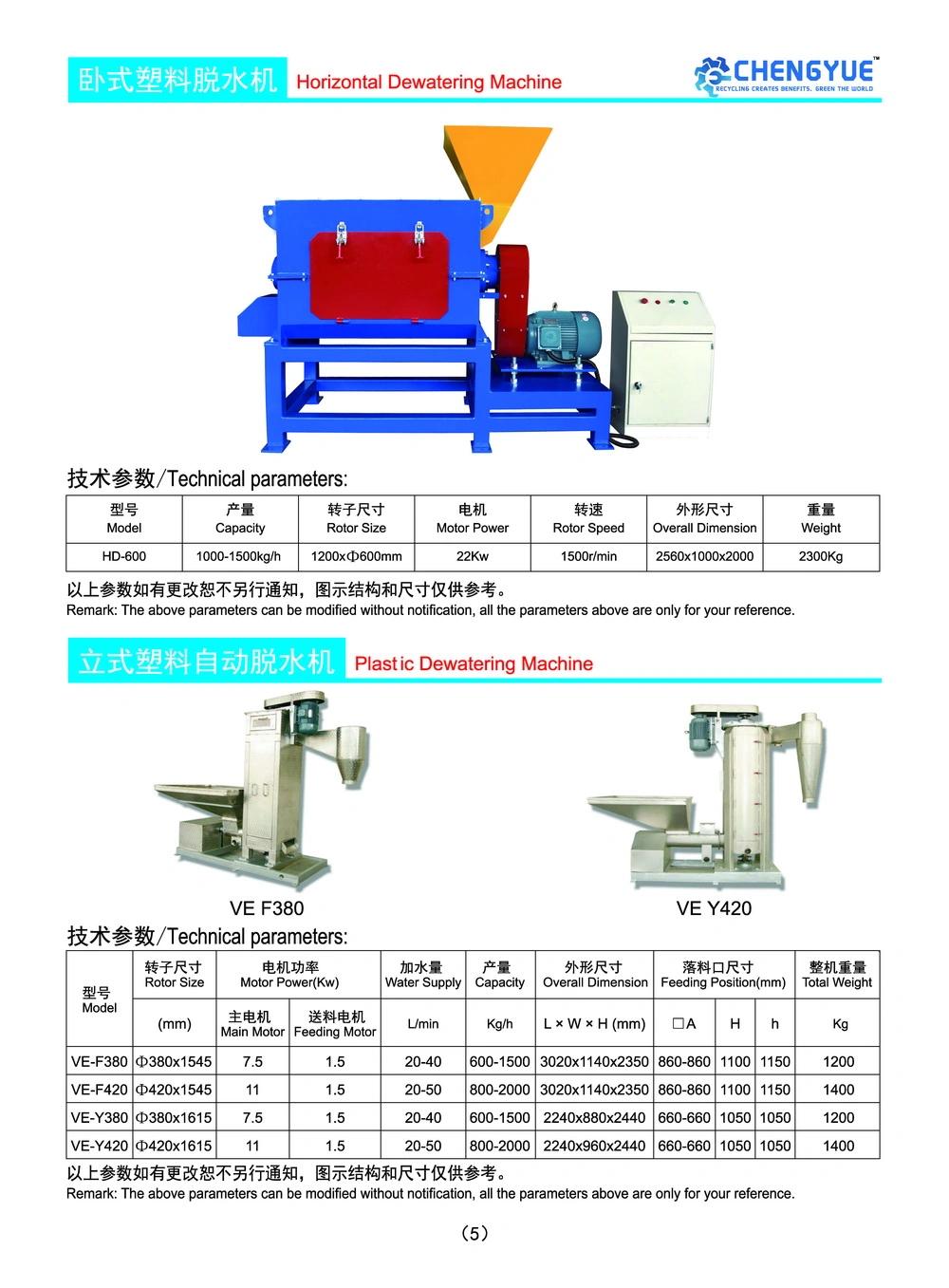

ModelRotor size
(mm) Main motor
(KW) Feeding
Motor
(KW) Water supply
(L/Min) Capacity
(KG/H) Dimension
L*W*H (mm) Feeding position (mm) Total weight
(KG) A H H VE-F380 Φ380X1545mm 7.5kw 1.5kw 20-40 L/min 600-1500 3020X1140X2350 860X860 1100 1150 1200kg VE-F420 Φ420X1545mm 11kw 1.5kw 20-50 L/min 800-2000 3020X1140X2350 860X860 1100 1150 1400kg VE-Y380 Φ380X1615mm 7.5kw 1.5kw 20-40 L/min 600-1500 2240X880X2440 660X660 1050 1050 1200kg VE-Y420 Φ420X1615mm 11kw 1.5kw 20-50 L/min 800-2000 2240X960X2440 660X66 1050 1050 1400kg
(mm)
(KW)
Motor
(KW)
(L/Min)
(KG/H)
L*W*H (mm)
(KG)
