• Model NO.：SJZ65,132
• Condition：New
• Transport Package：Foam+Film
• Specification：22*3*3M
• Trademark：SKR
• Origin：China
• HS Code：8477800000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. SJZ65/132 Condition New Transport Package Foam+Film Specification 22*3*3M Trademark SKR Origin China HS Code 8477800000 Production Capacity 30 Sets/Month

Product Description

                                                                               Product information

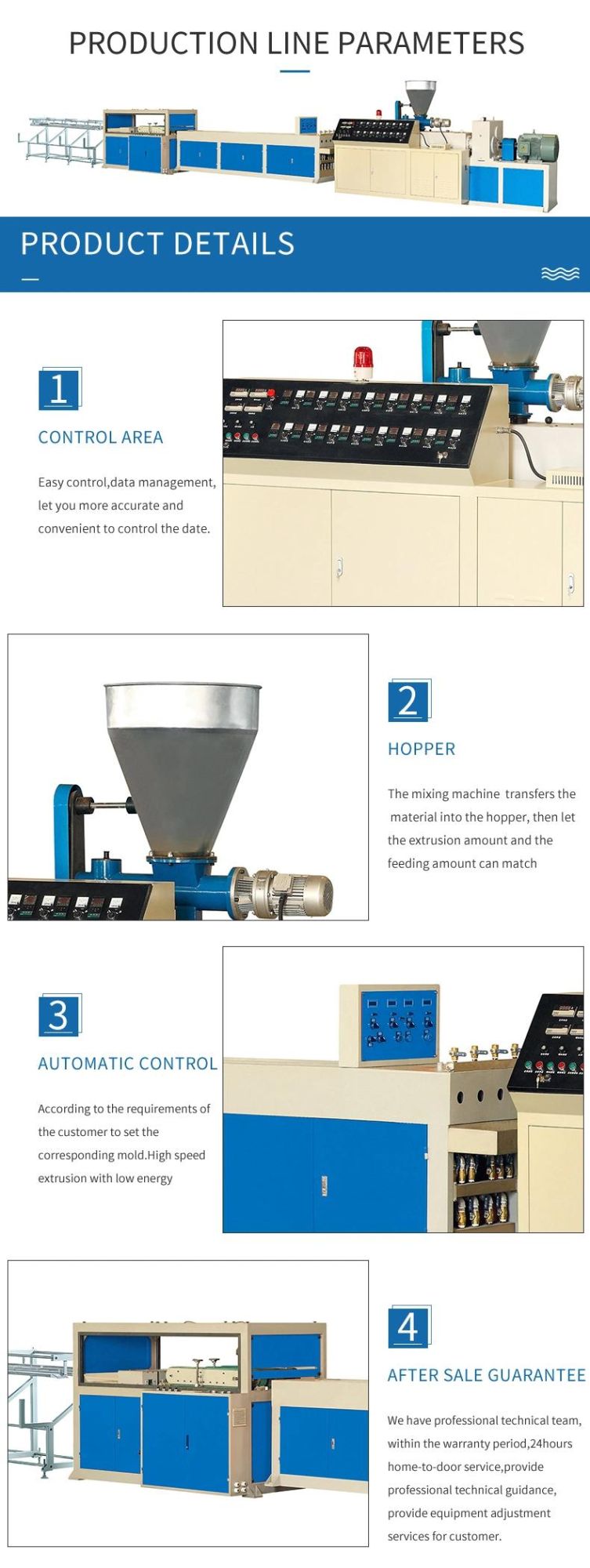

This extrusion line composed of the machines as below:
1.SJZ65/132 conical twin screw extruder;
2.Four-cavities die mould;
3.Four-cavities vacuum calibration tank;
4.Auto moving printer;
5.Haul-off machine;
6.Chipless  cutting machine;
7.Stacker.
                                                                 Main parameter

Host model	Max capacity(kg/h)	Traction speed(m/min)	Main motor(kw)	Die mould	Pipe range(mm)	Total power(kw)	Cover L/W(M)
SKR-SJZ65	250	0.5-15	37	Four cavities	Ø16-32	97	22/4

1,High speed extrusion,high yield and low energy consumption.
2,Equipped with a quantitative feeding device to match the extrusion volume and the feedvolume to ensure stable extrusion.
3,The gearbox is equipped with a powerful thrust bearing,with high torque output and low noise,equipped with a cooling  circulation system.
4,The barrel is heated withcast aluminum electric heater,which has long service life and convenient assembly and disassembly.

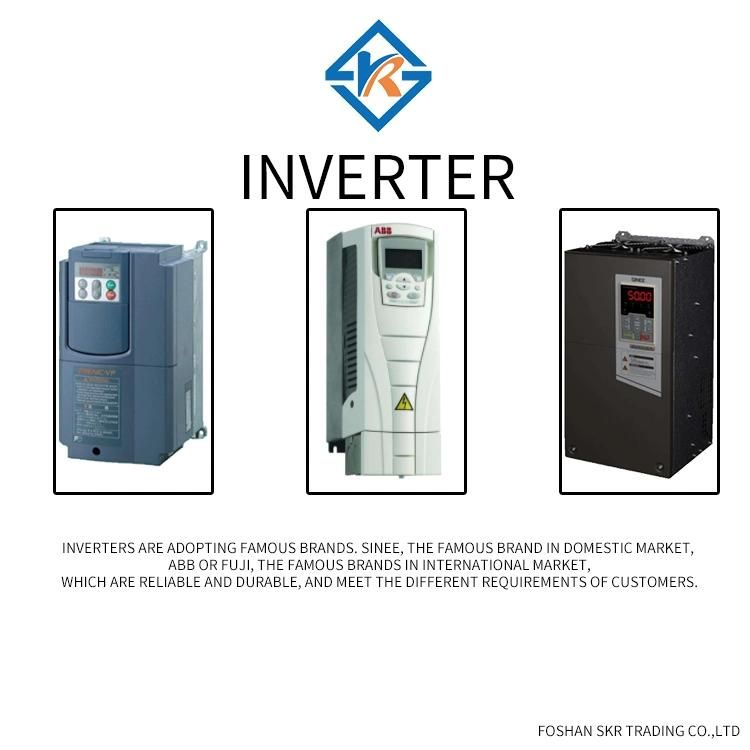

5,Use AC frequency conversion speed regulating device to make the main motor stepless speed regulation,convenient speed regulation.
6,SIEMENS PLC control chipless cutting,high effciency,accurate cutting length to 0.3%


















                                                                                          Remark
1.Price termLFOB Foshan price
2.Payment terms:TT30% as deposit,after machine inspection in seller's factory,70%balance payment should be paid before delivery
3.After delivery:For the installation and training, the buyer should afford the air tickets,security,board and loading fee,transportation,tranlation fee for the technicists, and be charged by 100USD per day per person.
4.Product quality warranty 1 year,easily damaged  parts for there months upon from the B/L on board day

                                                                           Service we provide
*Analysis and consulting the of the project
*Provide product information
*Turn-key project
*Training the operation for the customer
*Provide  quality assurance for the product
*Door to door service
*Receiving customers visit and investigation
*Product lifetime service

                                                                                      Company advantages1. Our company has strong technology development strength, able to quickly tailor to a variety of marketable products for domestic and foreign customers.
2. Our supply is sufficient to guarantee the customers' demand.
3. Our products can be OEM, meet your special needs.
4. Our advantages and quick delivery. Competitive price, high quality and long-term service to our customers.
5. We will provide the best after-sale service for the guests which try my best to meet the requirement of the guests.
