• Model NO.：MT200
• PVC Ceiling Production Line：WPC Profile Production Line
• Ceiling Machine：PVC Ceiling Machine
• Material：Ceiling Machine
• Transport Package：Wood
• Specification：sgs
• Trademark：middle tech
• Origin：Zhangjiagang City
• HS Code：84772090
• Production Capacity：300kg,Hr

Basic Info.

Model NO. MT200 PVC Ceiling Production Line WPC Profile Production Line Ceiling Machine PVC Ceiling Machine Material Ceiling Machine Transport Package Wood Specification sgs Trademark middle tech Origin Zhangjiagang City HS Code 84772090 Production Capacity 300kg/Hr

Product Description

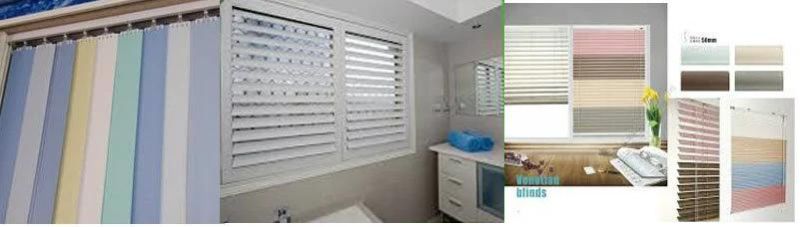

 Plastic PVC colorful blind sheet/window curtain profile making machine



Through market combination and our technology innovation, Midtech pleased to provide
-special plastic formulation support (colorful layer)
-specia cooling type (fan blower cooling without water),
-high lineal speed (8m/min),
- Various width based on customer request (93mm,73mm, 55mm,)
Plastic Extruder and PVC colorful blind sheet/window curtain profile making machine;


Process Flows:
Plastic(PVC) + additives
high speed heating mixer --- PVC extruder-- colorful co-extruder--- sheet blower table---haul off--- pneumatic cutter --- stacker



Technical Parameter

Feeder	• To feed material into extruder;

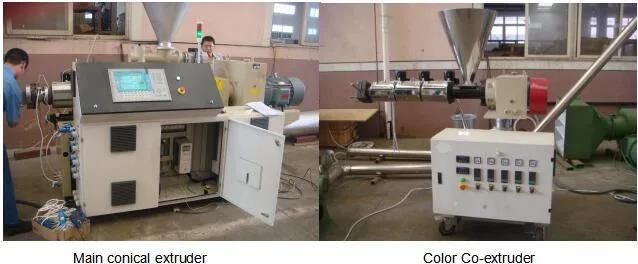

Extruder	•World famous brand electrical component: Siemens,Schneider, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.

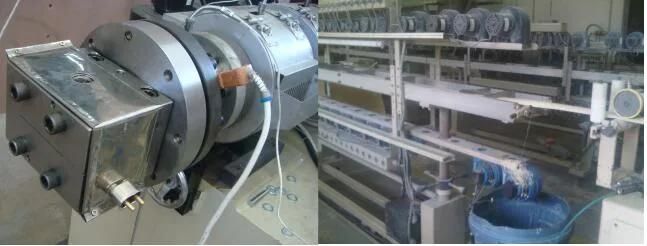

Die head	• 3Cr13/3Cr17 material • Straight extrusion sheet die
Fan blower	• Calibration mould • Fan blower • Length: 6000mm
Haul off	• Upper/lower caterpillar driven separately and speed control by inverter
Cutter	• Pneumatic cutter
Stacker	• Stainless steel304 as touching material • Discharge driving by air cylinder
Co-extruder	• Decorative pattern and different color
