Insulating PVC Cable Tray Trunking Extrusion Making Machine
Foshan Kebeln Plastic Machinery Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PVC
- Product Type：Profile Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
Base Info
- Engagement System：Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Power：63kw
- Capacity：150-180kg,H
- Transport Package：Standard Packing
- Specification：16X16-40X40mm
- Trademark：kebeln
- Origin：China
- HS Code：8477209000
- Production Capacity：150-180kg,H
Description
Basic Info.
Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Power 63kw Capacity 150-180kg/H Transport Package Standard Packing Specification 16X16-40X40mm Trademark kebeln Origin China HS Code 8477209000 Production Capacity 150-180kg/HProduct Description

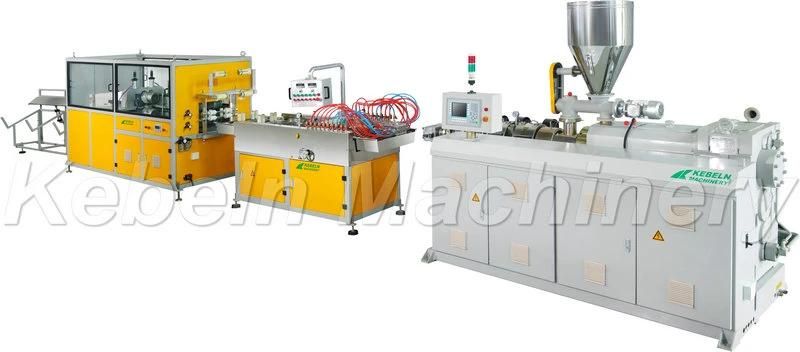

PVC cable trunking extrusion machine
MACHINE INTRODUCITON:
This extrusion line is developed with the advanced extrusion technology by KEBELN. The main machine is the Conical Twin-screw Extruder, which is suitable for PVC trunking or PVC pipe extrusion. The accessorial machines of this profuction line are Vacuum Forming Table, Traction machinem Cutter and Stacker.
Techncial specification:
| item | PVC double pipe/trunking extrusion line | PVC single pipe/trunking extrusion line |
| Capacity(kg/h) | 150-180kg/h | 150-180kg/h |
| Vacuum forming table length | 3500mm | 3500mm |
| Haul off speed | 0-12m/min each | 0-10 m/min |
| Installation power | 63kw | 62kw |
| Total length | 18m | 19m |
1. KBL55/113 Conical Twin Screw Extruder

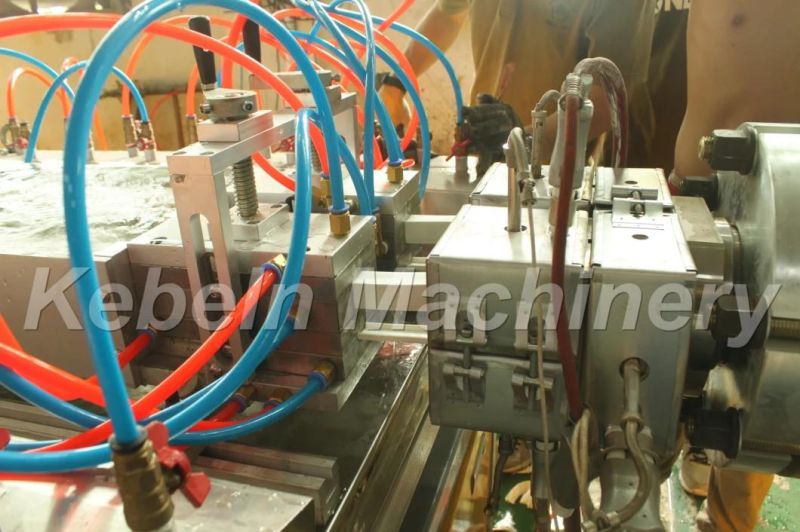

2. Extrusioin Die
3. Vacuum Calibration cooling Tank
4. Haul-off Machine
5. Cutting Machine
6. Stacker.
