• Model NO.：JWZ-BM30 blow molding machine
• Die Head Structure：Accumulating Type
• Product Volume：15-30
• Oil Pump Motor Power：15kw
• Main Screw Diameter：80mm
• Max Plasticizing Capacity (PE)：120 Kg
• Output System：Take out Robot
• Motor：AC Motor Made in China
• Driving Motor：37kw
• Hydraulic System：Servo Control
• Loader Type：Auto Loader
• Blowing System：Blowing Pin Device
• Parison Controlle：Moog100,B&R300
• Accumulating Volume：5.2L
• Max. Mold Size：740*740mm
• Transport Package：Exported Standard Packing
• Trademark：JWELL
• Origin：China
• HS Code：84774010
• Production Capacity：1pieces

                           Accumulating typeMain screw diametermm80Max plasticizing capacity (PE)kg/h120Driving motorKw37Accumulating volumeL5.2Oil pump motor powerKw15Clamping forceKN280Space between platenmm400-900Platen size W*Hmm740*740Max. mold sizemm550*650Heating power of die headKw20Machine dimension L*W*Hm4.3*2.2*3.5Machine weightT12Total powerKw95Note: Information listed above are for reference only, the production
line can be designed by customer's requirements.

Control system

rts name	country	Brand
PLC and touch screen	Germany/Austria	SIEMENS/B&R
Inverter	China/Germany	JWELL/Rexroth
Parison control system	Japan/Austria	MOOG100/B&R 300
Pneumatic valve	China	Air TAC
Hydraulic Control System	China	Famous brand
hydraulic valve	China	Taiwai Yuken
Take out robot	China	JWELL
Accumulate type Die head	China	JWELL
Driving motor	Germany	SIEMENS-Beide MADE IN CHINA
Gearbox	China	Famous brand
Screw and Barrel	China

1.Control system

SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.




Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.



B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.

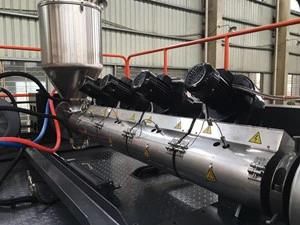

2.Extrution & Die head

The extruder uses screw and barrel, which is a famous brand

 all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.




JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.

3.Blowpin system

Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)

4.Output system



Take out robot

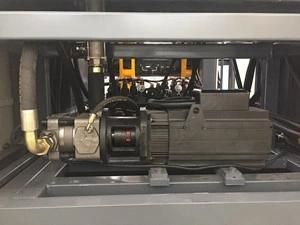

5.Hydrulic system



Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.



Hydraulic system adopts Servo motor-oil pump control technology, Servo controller, SUMITOMO low-noise gear pump, it has the features of quick response and energy saving. This controller can save more than 50% energy than common ones.

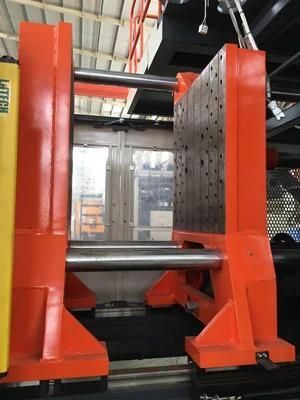

6.Open&Closing system






Common three platen and three tie bar struction


7.Lubrication system

This auto-lubrication system can lubricate the system with a set cycle automatically.

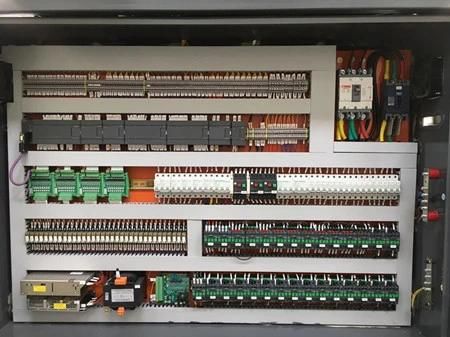

8.Electric system

1. SIEMENS CPU unit
2. SIEMENS temperature-control unit
3. SIEMENS digital-output unit
4. SIEMENS analog-output unit
5. MITSUBISHI CPU unit
6. JWELL invertor revolving speed-control
