• Model NO.：SJ-
• Computerized：Computerized
• Machine Weight：3t
• Certification：CE, ISO9001:2008, UL, QS, GMP
• The Film Thickness：0.01-0.20mm
• The Film Max Width：1200mm
• Diameter of Screw：75mm
• Main Motor：37kw
• Transport Package：N,a
• Specification：CQC, ISO9001, CE, SGS
• Trademark：YUNBANG
• Origin：China
• HS Code：84773000
• Production Capacity：50kg,H

Basic Info.

Model NO. SJ- Computerized Computerized Machine Weight 3t Certification CE, ISO9001:2008, UL, QS, GMP The Film Thickness 0.01-0.20mm The Film Max Width 1200mm Diameter of Screw 75mm Main Motor 37kw Transport Package N/a Specification CQC, ISO9001, CE, SGS Trademark YUNBANG Origin China HS Code 84773000 Production Capacity 50kg/H

Product Description

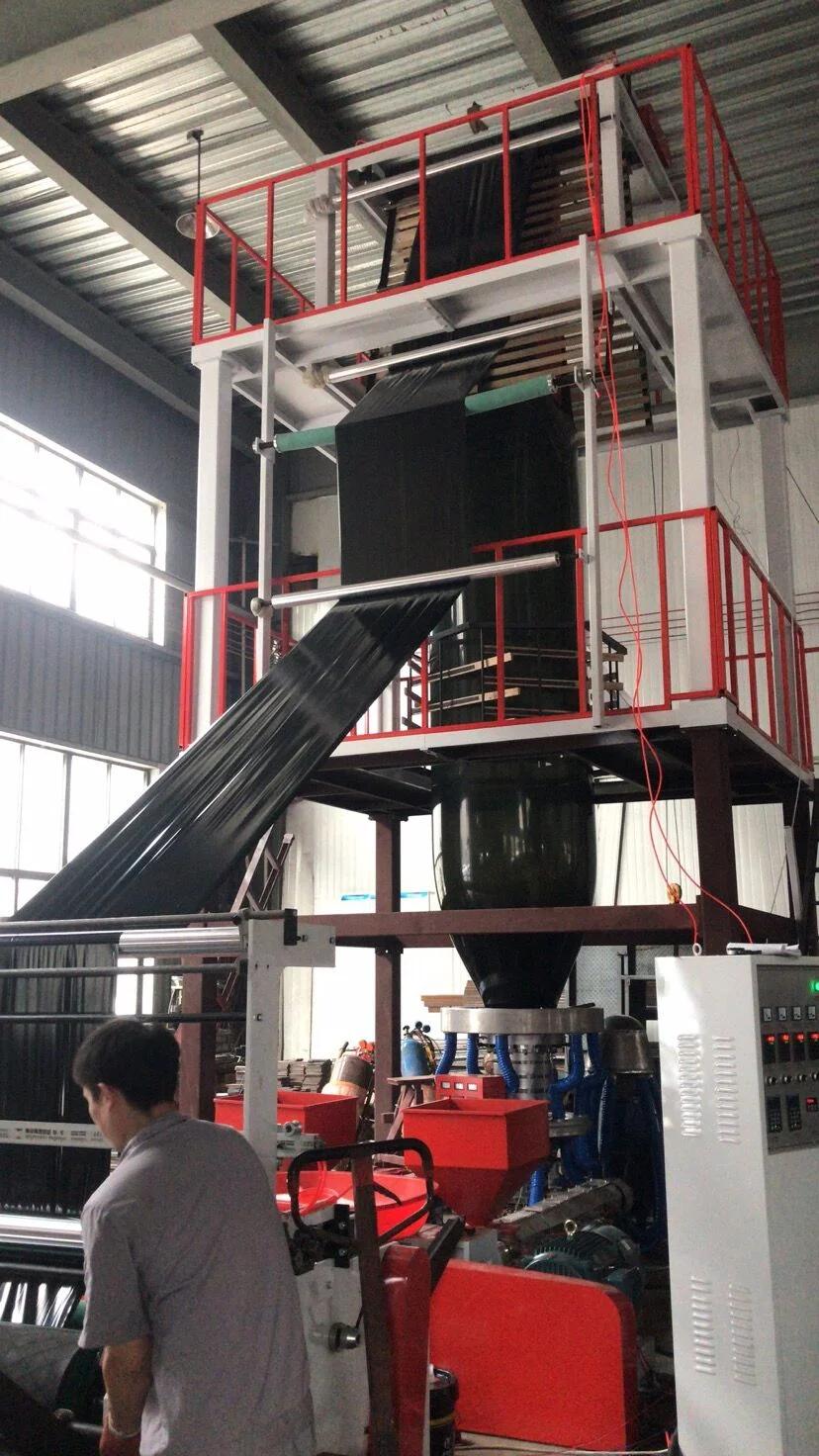

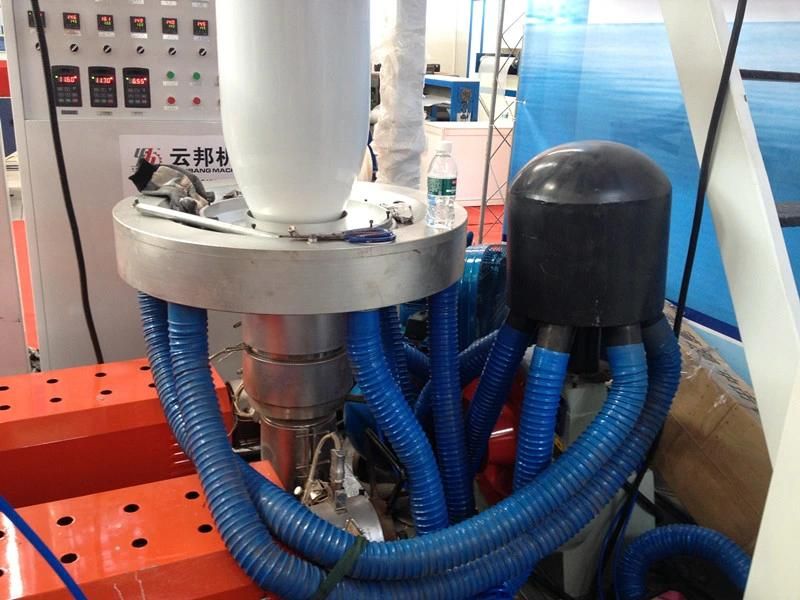

ABA extruder

• Stronger, higher film resistance: Comparing to mono layer film products with the same thickness
• Cost saving: Virgin material is applied mainly on the outer (thin) layers which is relatively a very small percentage of the film composition
• Better material mixing: With co-extrusion to produce better quality film

Main Usage & Application of ABA extruder

• For the production of T-shirt bags, garbage bags and shrink film (for bottle wrapping)
• 60% CaC3 compounds or recycled material can be used in the middle layer
• Thin outer layers with virgin material to cover the film surface so that it still looks good and shinny despite the usage of secondary grade material in the middle layer

TECHNICAL PARAMETER

Model	600	800	1000	1200
Max.Width (mm)	550	750	950	1150
Max.Length (mm)	950	950	1200	2000
Speed (pc/min)	30-130	30-100	30-100	30-80
Power(kw)	0.75	1.5	2.2	3
Weight(kg)	750	800	900	1000
Dimension(mm) (L*W*H)	2900*1350*1650	2900*1450*1550	3200*1550*1750	3400*1750*1850
