• Model NO.：QF-70+35 , QF-80+40
• Engagement System：Non-Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Warranty Period：12 Months
• Heating System：Electric
• Customized：Customized
• Precision：Precision
• Voltage：380V
• Power：3p 380V 50Hz
• Place of Origin：Guangdong
• PLC Brand：Siemens
• Touch Screen：Kunlun
• Motor Brand：Siemens

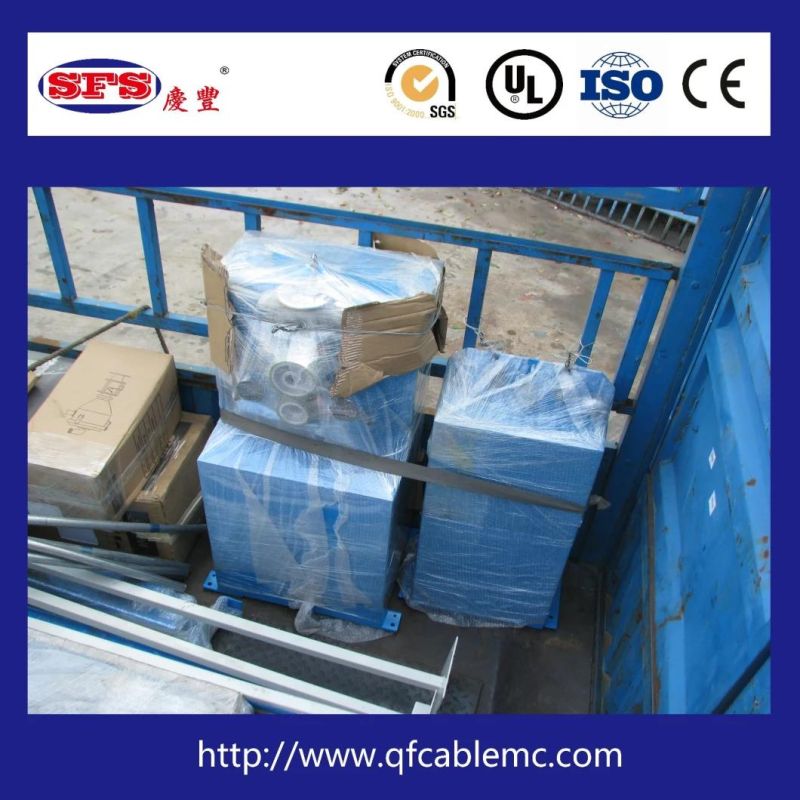

• Transport Package：Shipment or Wooden Box (Required by Yours)
• Specification：CE, SGS, RoHS
• Trademark：SFS
• Origin：Dongguan, Guangdong Provice
• Production Capacity：30

Basic Info.

Model NO. QF-70+35 / QF-80+40 Engagement System Non-Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Warranty Period 12 Months Heating System Electric Customized Customized Precision Precision Voltage 380V Power 3p 380V 50Hz Place of Origin Guangdong PLC Brand Siemens Touch Screen Kunlun Motor Brand Siemens Transport Package Shipment or Wooden Box (Required by Yours) Specification CE, SGS, RoHS Trademark SFS Origin Dongguan, Guangdong Provice Production Capacity 30

Product Description

Application
   Applied for all kinds of international standard automotive wires such as AV, AVS, AVSS.

Equipment compositions
Pay-off stand
Tension stand
Copper preheater
Main extruder
Main electrial control box
Laser diameter tester
Accumulator
Capstan machine
Speak tester
Meter counter
Take-off machine

Main techinical parameters of extrusion line

       Model  : QF-70+35
1.    Screw diameter  : Φ70mm.
2.    Screw  L/D ratio : 25:1.
3.    Extrusion output (Max.)  : 150kg/hr.
4.    Extrusion outlet diameter  : Φ1.5mm - Φ12mm.
5.    Line speed (Max.)  : 300m/min.
6.    Pay-off type  : Shaftless magnetic power tension pay off
7.    Main motor power  : 22kw.
8.   Temperture control  : 6 segment.
9.   Cooling water trough  : "U" type single layer trough.
10.  Capstan power  : 7.5kw.
11.  Accumulate length (Max.)  : 200m.
12.  Accumulate type : level way.
13.  Take-up type: Double axis
14.  Take-up bobbin diameter  : Φ400mm - Φ630mm.

       Model  : QF-80+40
1.    Screw diameter  : Φ80mm.
2.    Screw  L/D ratio : 25:1.
3.    Extrusion output (Max.)  : 150kg/hr.
4.    Extrusion outlet diameter  : Φ3.0mm - Φ15mm.
5.    Line speed (Max.)  : 300m/min.
6.    Pay-off type  : Shaftless magnetic power tension pay off
7.    Main motor power  : 30kw.
8.   Temperture control  : 7 segment.
9.   Cooling water trough  : "U" type single layer trough.
10.  Capstan power  : 11kw.
11.  Accumulate length (Max.)  : 200m.
12.  Accumulate type : level way.
13.  Take-up type: No-axis, double axis
14.  Take-up bobbin diameter  : Φ800mm - Φ1250mm.

Equipment characteristics
1.  Applied for PLC controller, professional data control software, industrial computer
     control and storage display. It can modify technological parameters adjustable and
     monitor state of extrusion line.
2.  Equipped with detecting system, auto-control feedback system, precise diameter and
     capacitance detecting feedback unit, entirely process control wire or cable insulation
     diameter and eccentricity parameter to insure the technological requirements.
3.  The production line is applied for advanced special automatic cross head and dies for
     ensuring insulated thickness and eccentricity degree.

Sales net
 USA, Italy, Korea, Vietnam, Thailand, Indonesia, Turkey, Iraq, Japan etc.

After-sales service
1.   We provide installation knowledge, machine testing knowlege and training operator freely.
2.   We track maintenance service regularly for solving the problems in practice.
3.   We provide the lifelong parts and technical support for our customer all the time.
4.   We provide an all-rounded solution to wiring harness processing area for customer.
