Decorating Board PVC Wall Panel Plastic Plate Extrusion Line

ZHANGJIAGANG RETECH MACHINERY CO., LTD.
  • Product Type：PVC Board
  • Board Layers：Multilayer
  • Screw No.：Double-screw
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：TESJ45~95
  • Customized：Customized
  • Condition：New
  • After-Sale Service：Engineers Available to Service Overseas
  • Electric Grid：3p 220~440V 50 or 60Hz
  • Delivery Time：50 Days After Getting Deposit
  • Warranty：12 Months
  • Color：Could Be Customized
  • Operating Manual：Available with Machines
  • Eelectric Diagram：Available with Machines
  • Workers Needed：1~2 People
  • Transport Package：by Wrap Film and Wooden Case
  • Specification：TESJ45~95
  • Trademark：TopMachinery
  • Origin：China
  • HS Code：8477800000
  • Production Capacity：200 Sets Per Year

Description

Iiems             ModelSJSZ-51SJSZ-65SJSZ-80SJSZ-92Screw dia(mm)51/10565/132(120)80/156(143)92/188Effective length of screw(mm)1050144018002500Screw speed (r/m)1-321-34.41-381-32.9Extruder  motor153755/75110Heating power (kw)7.9243645Out put50-15080-250100-400200-800Center height (mm)1000100010001000
PVC/WPC Board Extrusion Line

Applying specially-designed SJSZ conical twin screw extruder, this production line is mainly used for production of construction board, wide door panel, cabinet board, indoor/outdoor decoration material, etc. The whole production line includes conical twin screw extruder, vacuum calibration table, haul-off unit, cutting unit, stacker, as well as other optional auxiliary units. With powerful chiller to guarantee the calibration effect of the door panel, the extrusion output of this line can reach 600kg/h up to 1250kg/h.
International brand speed governor, bearing the advantages of wide governing range, high temperature control precision, convenient and reliable operation, etc.
Caterpillar haul-off unit adopts precision reduction motor, with speed controlled by inverter. It has the advantages of reasonable structure, large traction power, stable hauling, etc.
Cutting unit bears the advantages of reliable working, high-precision cutting, etc. PLC programming control or famous domestic brand controlling system is adopted for the auxiliary units, which is stable and reliable.

Main Parts of  a Plastic PVC Board Extrusion Line:

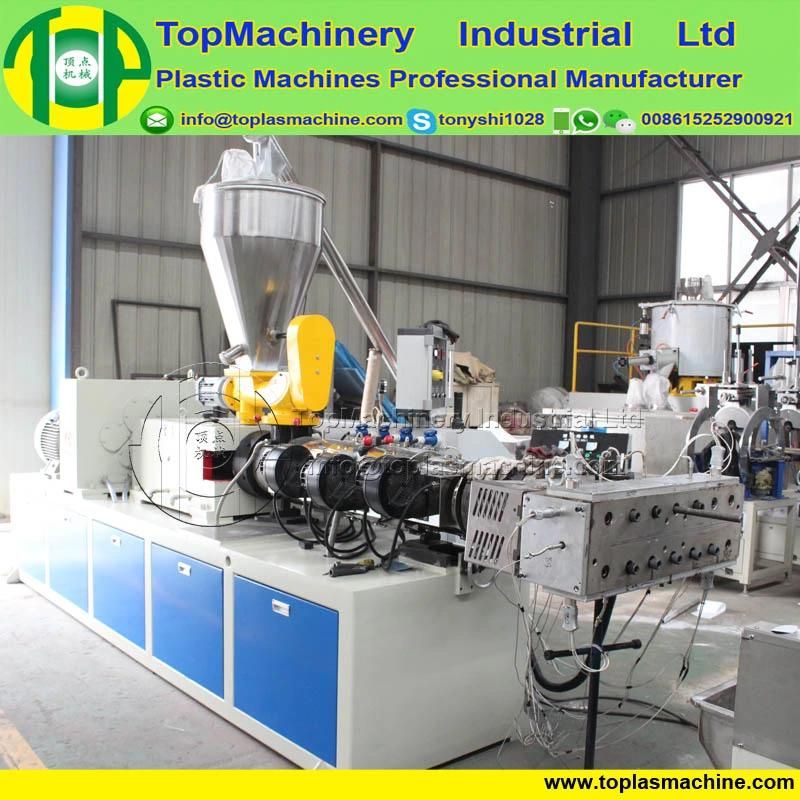

Extruder:

Decorating Board PVC Wall Panel Plastic Plate Extrusion Line

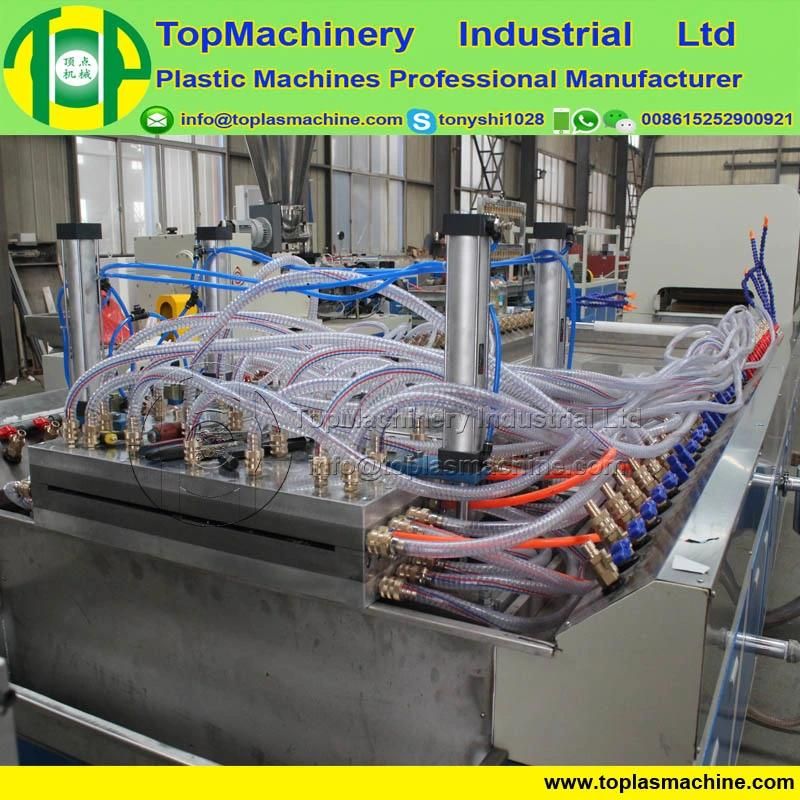

Mould and Calibrator::

Decorating Board PVC Wall Panel Plastic Plate Extrusion Line

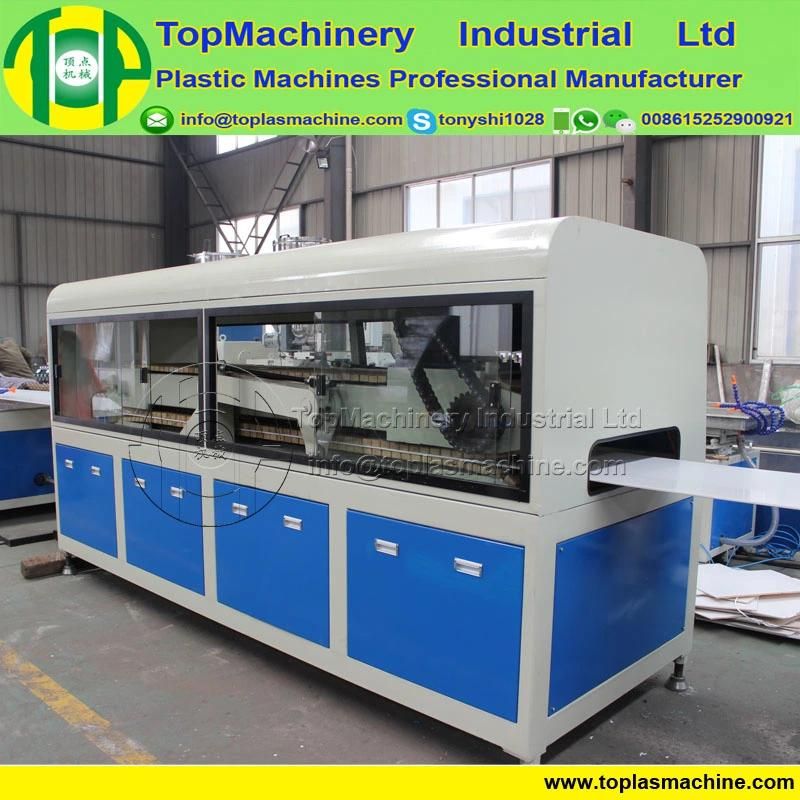

Haul Off Machine:

Decorating Board PVC Wall Panel Plastic Plate Extrusion Line

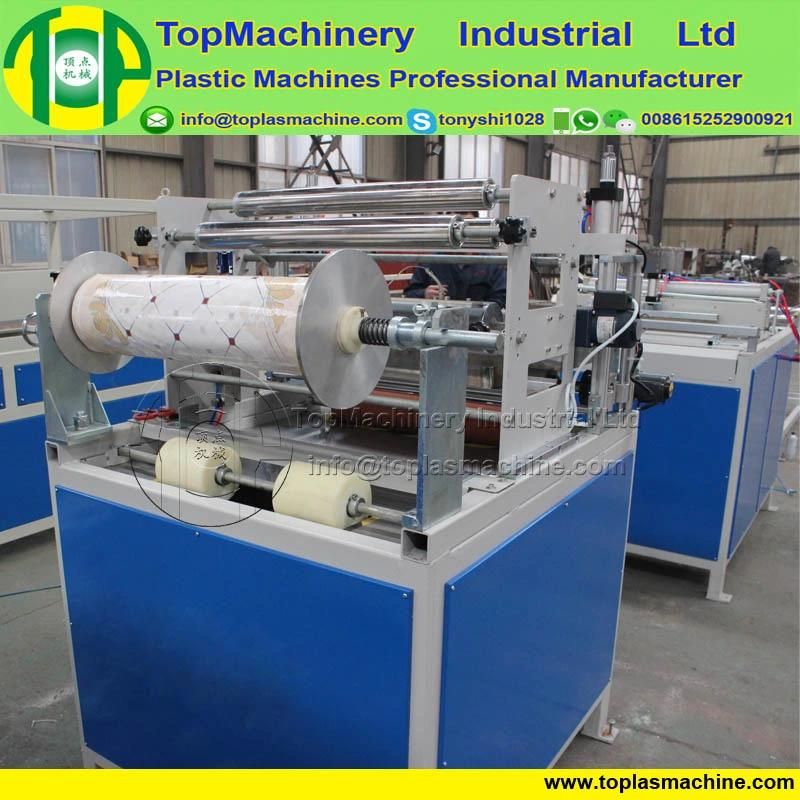

Sticker Film Laminator:

Decorating Board PVC Wall Panel Plastic Plate Extrusion Line

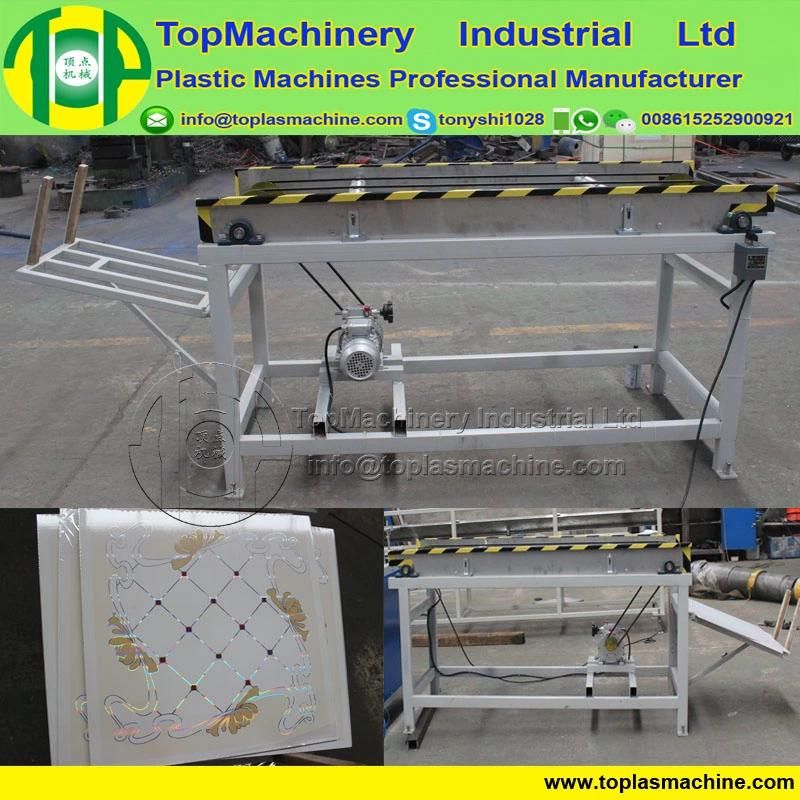

Cutter and Stracker:

Decorating Board PVC Wall Panel Plastic Plate Extrusion Line


If you are interesting more details of our products, please contact with us no hesitation!
