HDPE Pipe Production Line/ Pipe Extruder/HDPE Pipe Making Plant/ PE Pipe Making ...
ZHANGJIAGANG QING CHEN YU MACHINERY CO., LTD.- Type：Pipe Extruder
- Screw：Single-Screw
- Automation：Automatic
- Computerized：Computerized
- HDPE Pipe Production Line：63-1200mm
- Transport Package：Wooden
Base Info
- Specification：International
- Trademark：XJG
- Origin：China
- HS Code：8477800000
- Production Capacity：Uncertain
Description
Basic Info.
Specification International Trademark XJG Origin China HS Code 8477800000 Production Capacity UncertainProduct Description

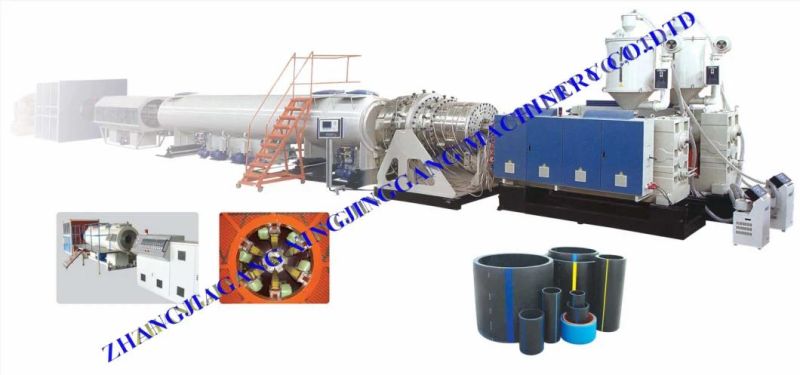

HDPE water supply and Gas supply Pipe Extrusion Line used in producing HDPE water, gas supply pipe.Its features compact structure, highly automation and stable performance.Screw of extruder is equipped with barrier unit and mixing structure and the barrel owns new style grooves.Vacuum sizing tank can ensure the stability of size and rounedness, speed controllers are used in extruder,haul-off to offer stability and precision performance.Whole line adopts PLC performance control system and large liquid screen, which makes the operation very convenient.The line can be equipped with another extruder used for extruding the mark line.
| Mode | PE75 | PE125 | PE250 | PE630 |
| (MM) Max Diam. | Φ 75 | Φ 125 | Φ 250 | Φ 630 |
| Extruder | SJ65/28--SJ65/30B | SJ90/28--SJ90/30B | SJ90/32---SJ90/32B | SJ120/30B |
| Power(KW) | 40/90 | 60/132 | 90/132 | 280 |
| Motor type | Direct current model | Direct current model | Direct current model | Direct current model |
| Output(KG/H) | 85/210 | 130/300 | 300/450 | 900-1000 |
| Speed(M/MIN) | 1.5-10 | 0.6-6 | 0.4-4 | 0.1-1 |
| Max. traction(N) | 9800 | 15000 | 19500 | 39000 |
| Cutting type | Disc type cutting | type cutting | Planet model with cut angle funcation | Planet model with cut angle funcation |
| Measurement(MM) | 28000× 35000× 3000 | 30000× 35000× 3000 | 38000× 35000× 3500 | 45000× 35000× 4000 |
