• Model NO.：SJZ65,132
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Plastic Machine：Qingdao PVC Wall Panel Making Machine
• Raw Material：PVC
• Output Capacity：180-260 Kg, Hr
• Production Line Speed：1-5m,Min
• Total Installed Power：90kw
• Actual Energy Consumption Power：About70kw
• Overall Dimension：About 22m*1.6m*2.6m
• Gross Weight：About 8t
• Operator：1-2 Persons Per Shift
• Power Supply：380V 3phase 50Hz or as Your Demand
• Transport Package：1. Mold Package: Wooden. 2. Outside: Stretch Film
• Specification：SJZ65,132
• Trademark：Deerma
• Origin：Qingdao
• HS Code：8477209000
• Production Capacity：180-260 Kg, Hr

ModelYF180YF300YF600YF800YF1000Max.width of product(mm)1803006008001000Extruder modeSJZ51/105SJZ65/132SJZ80/156SJZ80/156SJZ92/188Extrusion capacity(kg/h)150180360360600Motor power(kw)18.5375555110Total length(m)1822262832

Machine List as beow

ItemQuantity1.SJSZ- XX Twin Screw Extruder with Automatic Feeding SystemOne set2.Die Mold & Stock MoldOne set3.Vacuum Calibrarion TableOne set4.Haul-off and Cutter UnitOne set5.StackerOne set6.Electric Control SystemOne set

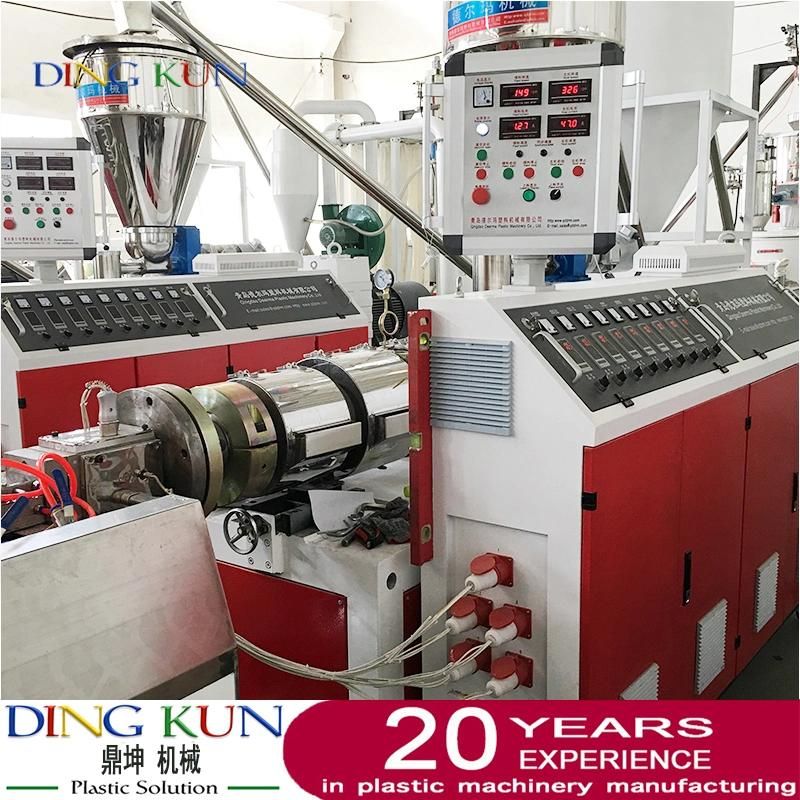

1.Twin screw extruder with Automatic feeding system -- SJSZ series conical twin screw extruder: (The model according to the sizes of final products to choose ) The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.

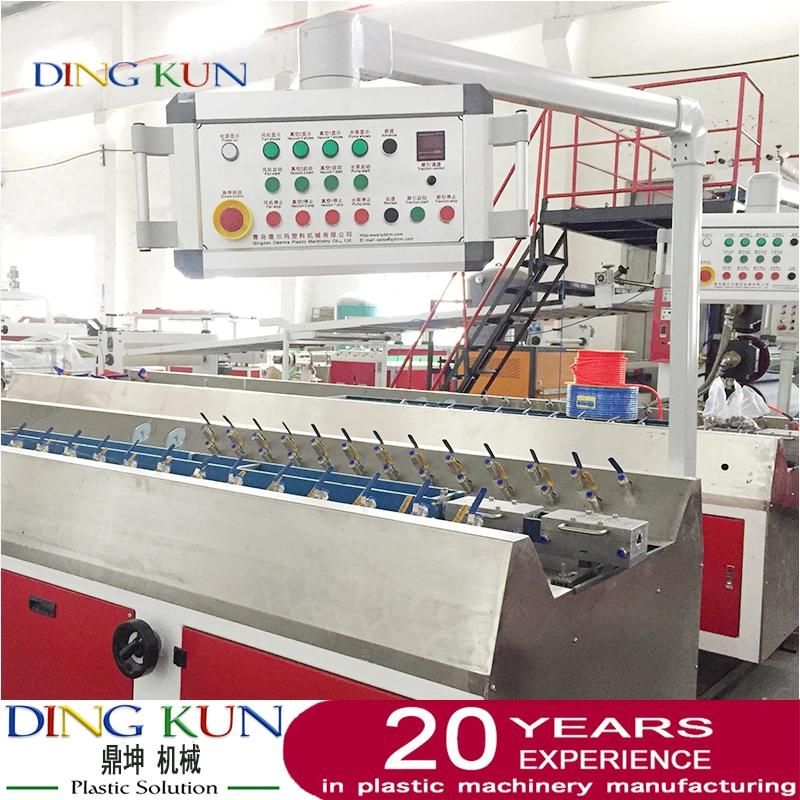

2.Vacuum calibration table
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.

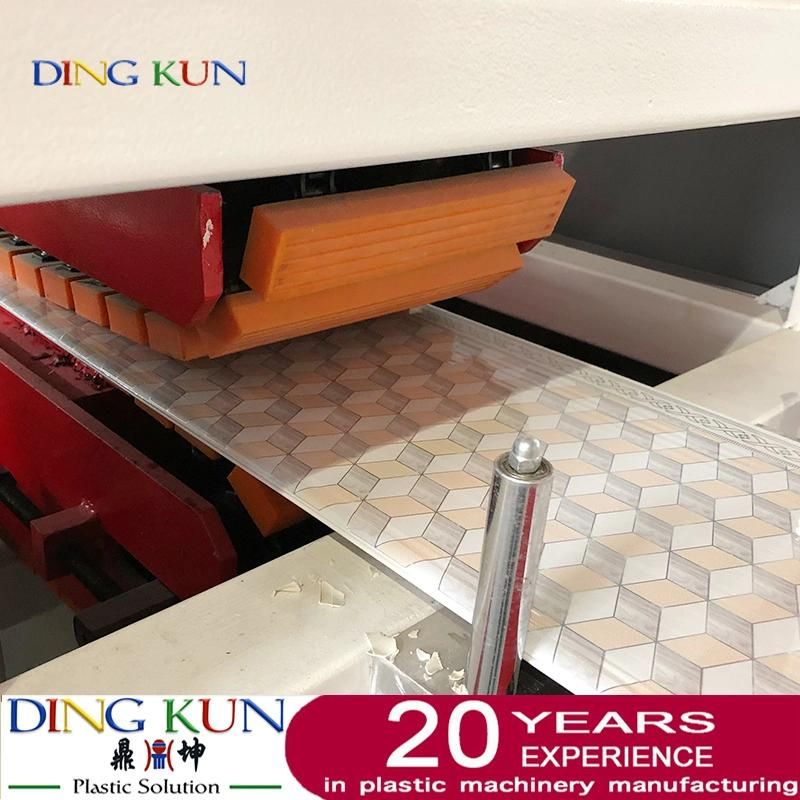

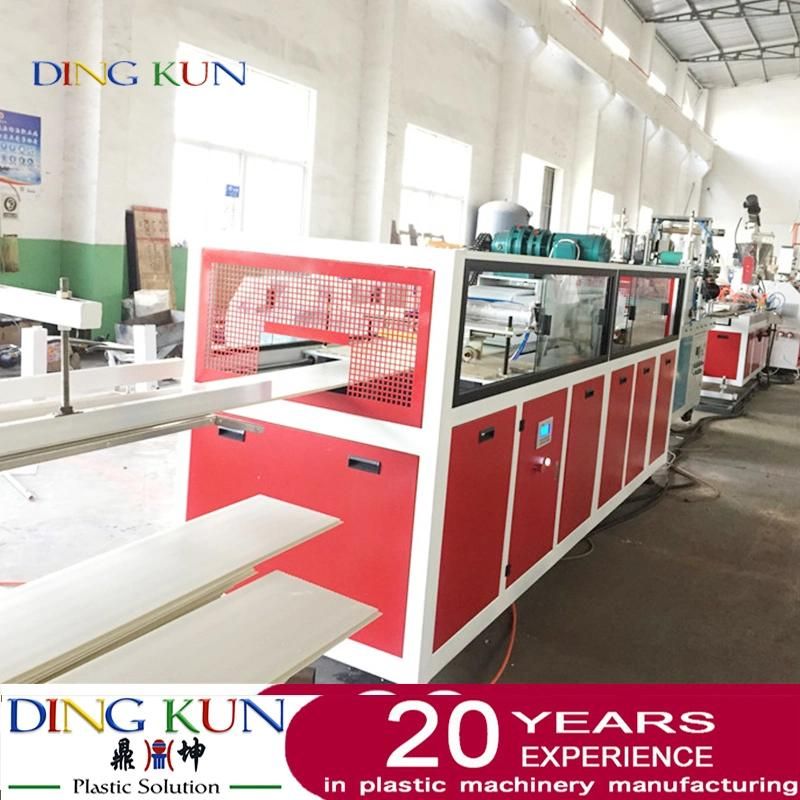

3.Haul-off unit and cutting unit

Max traction speed1-5m / minTractor motor seed controlFrequency ControlTractor motor power3kwCutter motor power1.5kw

4.Stacker
The stainless steel kneading board processing becomes, the air operator turn over, using with the cutter, automatically pushes the material, decides long cuts.

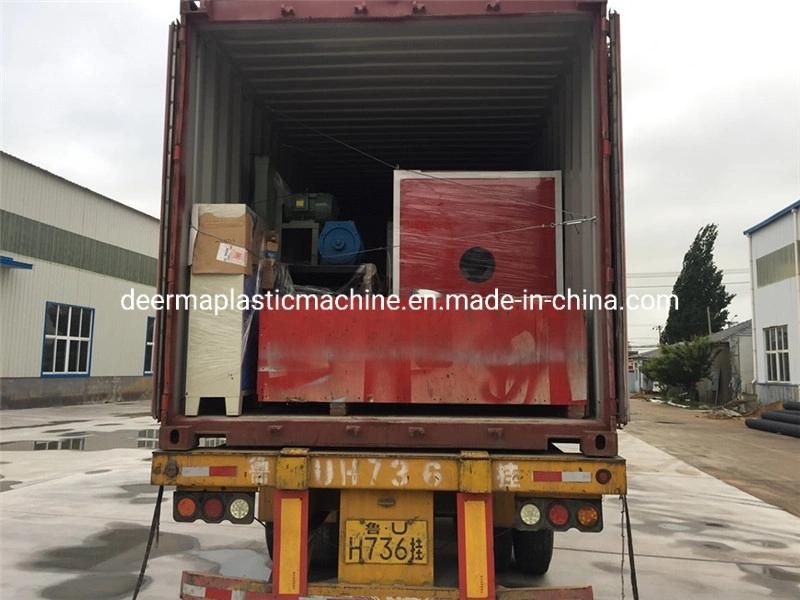

DELIVERY


DEERMA - CERTIFICATION

CertificationCertified ByCertificate No.Business Scope Expiry DatISO 9001:2008Beijing Hangxie Certification
Center Co., Ltd.,
CNAS
03413Q21640R1MDesign and Production of
Single-Screw Plastic Extruders
and Conical Twin-Screw
Plastic ExtrudersCEEuropeanInspection and
Certification
Company S.A.CN.CE.0680-10/10Plastic Extrusion Machinery &
SJ-30, SJ-45, SJ-65, SJ-90,
SJ-120, SJ-150, SJ-180,
SJ-200, SJSZ-51/105,
SJSZ-65/132, SJZS-80/156,
SJSZ-92/188TUVTÜV Rheinland7467484_P+TProduction & Trade AssessmentMain Product Lines Verification ReportTÜV Rheinland7467487_P+TMain Product Lines VerificationSGS

SGS-CSTC Standards Technical Services Co.,Ltd
Focus Technology Co., LtdQIP-ASR155278Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine

After-Sales Service

1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers' requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer's locale in time when we provide service for client again.

Why Choose us

1.We are China Leading Plastic Machine Manufacturer.

2.Alibaba Assessed 7 years Domestic Supplier .

3.Inspected by the Inspection Institution of SGS Certification.

4.100% QC inspection Before Shipmeng.

5.Best Quality & Best Service with Competitive price.
