• Model NO.：SJ
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Film Thickness：HD: 0.01-0.06mm
• Max Output：120kg,H
• Driving Motor：15kwx22kw Siemens
• Gearbox：#146
• Air Blower：5.5kw Taiwan
• Transport Package：Film Require
• Specification：CE. SGS
• Trademark：YunBang
• Origin：China
• HS Code：8477309000
• Production Capacity：15 Sets,Month

Basic Info.

Model NO. SJ Machine Weight 4T Certification CE, ISO9001:2008 Film Thickness HD: 0.01-0.06mm Max Output 120kg/H Driving Motor 15kwx22kw Siemens Gearbox #146 Air Blower 5.5kw Taiwan Transport Package Film Require Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 15 Sets/Month

Product Description

ABA Film Blowing Machine
Use:

It is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.


Technology Parameter


MODEL	HDABA45X45X1000	HDABA45X50X1000	HDABA50X55X1300
SUITABLE MATERIAL	HDPE, LDPE,LLDPE	HDPE, LDPE,LLDPE	HDPE, LDPE,LLDPE
LAYER NUMBER	3-ABA	3-ABA	3-ABA
FILM THICKNESS	HD: 0.008-0.05MM	HD: 0.01-0.06MM	HD: 0.01-0.06MM
MAX OUTPUT	100KG/H	120KG/H	150KG/H
MAX FILM WIDTH	900MM	900MM	1200MM
SCREW DIAMETER	Φ45X45	Φ45X50	Φ50X55
SCREW L/D RATIO	30/1	30/1	30/1
SCREW MATERIAL	BIMETALLIC	BIMETALLIC	BIMETALLIC
BARREL MATERIAL	BIMETALLIC	BIMETALLIC	BIMETALLIC
BARREL THERMO CONTROL	3X2	3X2	3X2
BARREL COOLING FAN	200WX3X2	200WX3X2	200WX3X2
SCREEN CHANGER	STANDARD	STANDARD	STANDARD
DRIVING MOTOR	15KWX15KW  SIEMENS	15KWX22KW  SIEMENS	18.5KWX30KW  SIEMENS
GEARBOX	#146	#146	#180
DIE	HDABAΦ60/80	HDABAΦ80/100	HDABAΦ100/120
DIE TYPE	FIXED	FIXED	FIXED
AIR RING	DUAL LIP	DUAL LIP	DUAL LIP
AIR BLOWER	5.5KW, CHUANFAN TAIWAN	5.5KW  TAIWAN	5.5KW  TAIWAN
BUBBLE CAGE MATERIAL	WOODEN	WOODEN	WOODEN
TOP NIP MATERIAL	WOODEN	WOODEN	WOODEN
TAKE UP ROLL MATERIAL	HIGH TEMP RUBBER	HIGH TEMP RUBBER	HIGH TEMP RUBBER
TAKE-UP ROLLER LENGTH	1000MM	1000MM	1300MM
GUSSET	INCLUDED	INCLUDED	INCLUDED
TAKE-UP MOTOR	1.5KW GEAR MOTOR	1.5KW GEAR MOTOR	1.5KW GEAR MOTOR
TAKE-UP SPEED	10-80M/MIN	10-80M/MIN	10-80M/MIN
PINCH PATTERN	PNEUMATIC	PNEUMATIC	PNEUMATIC
WINDING TYPE	SINGLE MANUAL WINDER	SINGLE MANUAL WINDER	SINGLE MANUAL WINDER
WINDING ROLLER LENGTH	1000MM	1000MM	1300MM
WINDING SHAFT	STOPPER SHAFTX2	STOPPER SHAFTX2	STOPPER SHAFTX2
BANANA ROLLER	WITHIN	WITHIN	WITHIN
MAX DIA.OF WINDED ROLL	800MM	800MM	800MM
WINDING MOTOR	TORQUE MOTOR WITH INVERTER(DALTA) TAIWAN DESIGN	TORQUE MOTOR WITH INVERTER(DALTA) TAIWAN DESIGN	TORQUE MOTOR WITH INVERTER(DALTA) TAIWAN DESIGN
SPEED CONTROL	SPEED CONTROLLER	SPEED CONTROLLER	SPEED CONTROLLER
TEMP. CONTROLLER	OMRON	OMRON	OMRON
WORKING VOLTAGE	380V,50HZ/60HZ	380V,50HZ/60HZ	380V,50HZ/60HZ
INVERTER BRAND	DELTA (TAIWAN)	DELTA (TAIWAN)	DELTA (TAIWAN)
HEATING SYSTEM	ACR+PID (ENERGY SAVING)	ACR+PID (ENERGY SAVING)	ACR+PID (ENERGY SAVING)

                                                                                <<   Details Information   >>

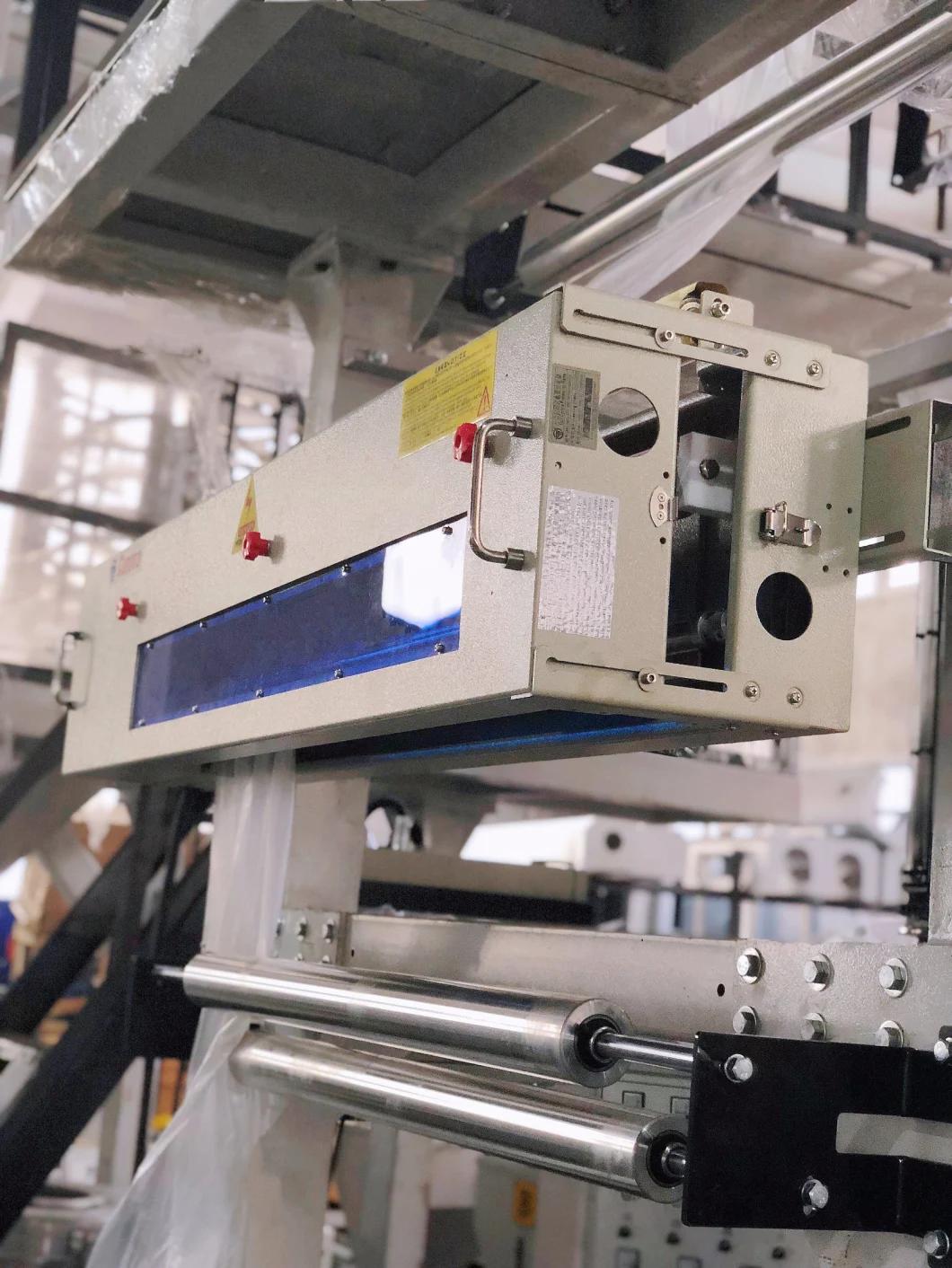

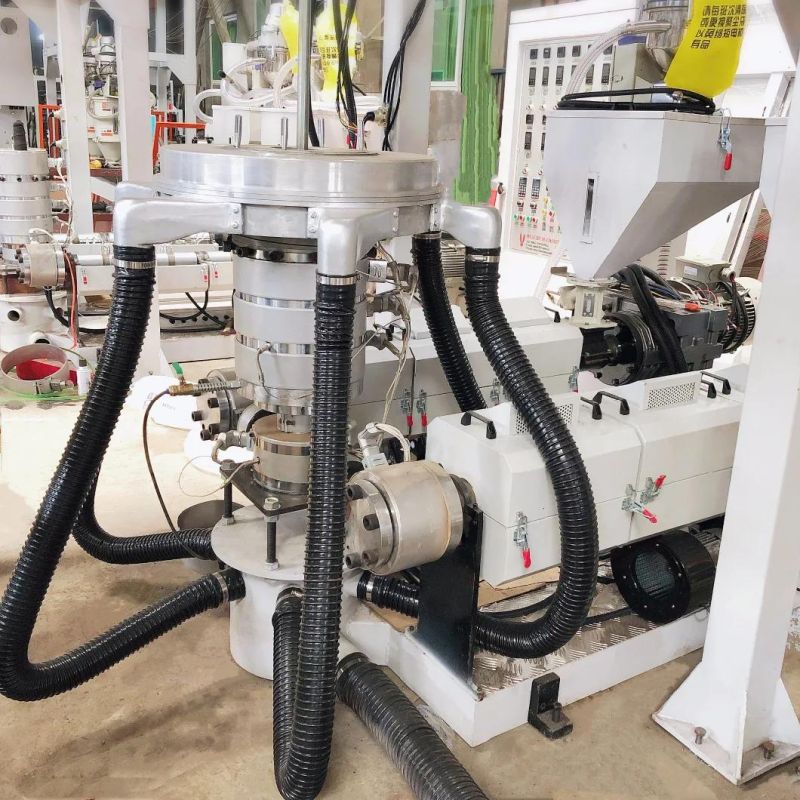

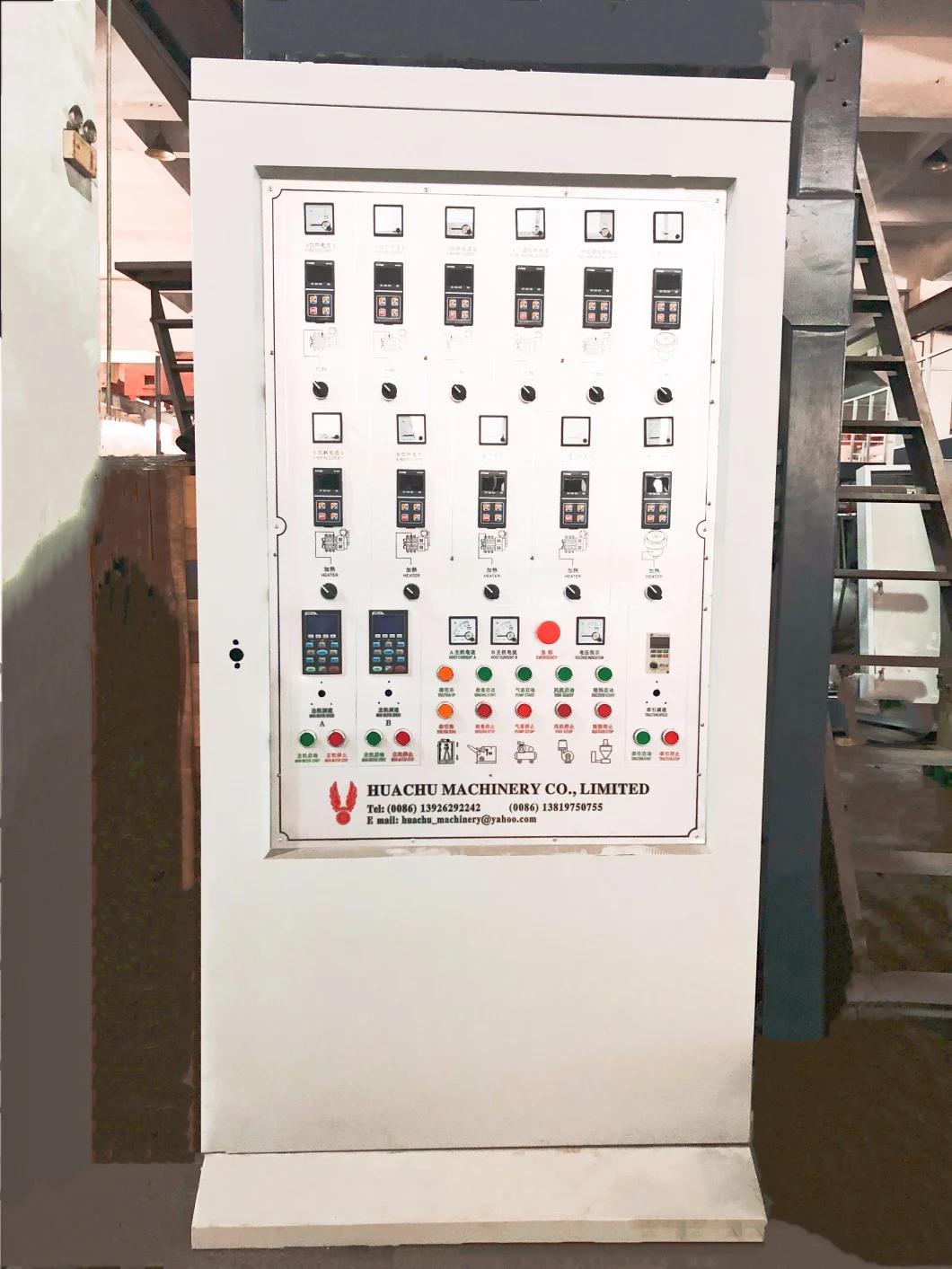

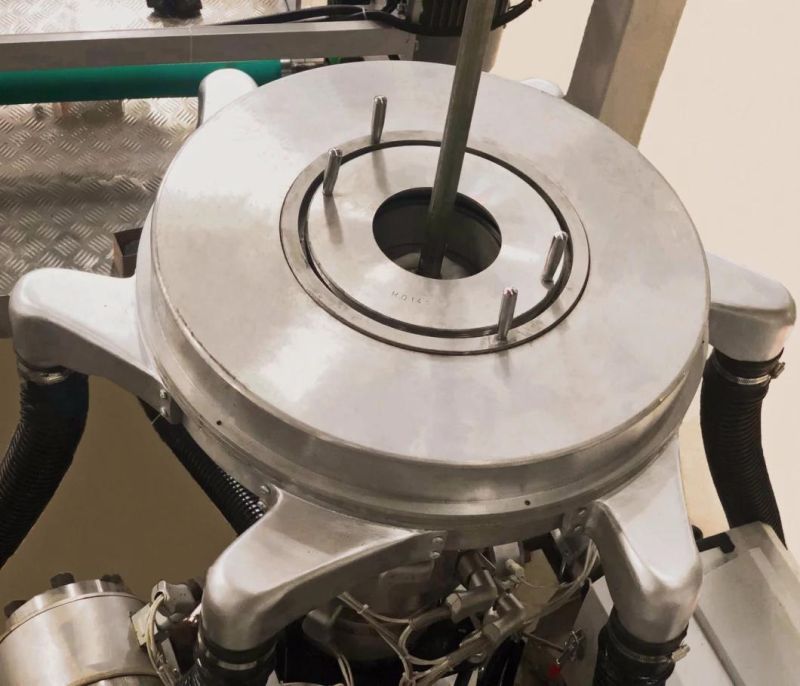

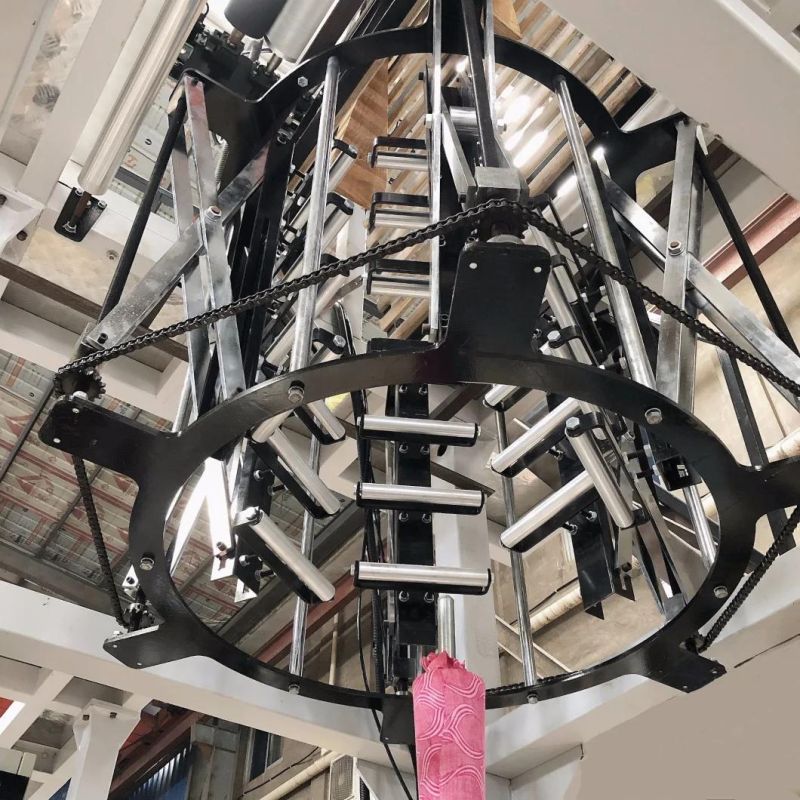

                                                                              <<   Machine Parts   >>
