High Speed Rotary Die Head HDPE LDPE LLDPE PE Film Blowing Machine Plastic Extruder ...

RUIAN YUNBANG MACHINE CO., LTD.
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：800mm
  • Screw Diameter：55mm
  • Automation：Automatic

Base Info

  • Model NO.：SJ-
  • Computerized：Computerized
  • Machine Weight：1.5t
  • Certification：CE, ISO9001:2008
  • Main Motor Power：15kw
  • Speed of Screw：150 Rpm
  • Max.Layflat Width：800mm
  • Screw L/D Ratio of Screw：28:1
  • Transport Package：Film Package or Wooden Case
  • Specification：SGS
  • Trademark：YUNBANG
  • Origin：China
  • HS Code：84773090
  • Production Capacity：20 Sets,Month

Description

Type4550556070808590110110-2Diameter of Screw(mm)Φ45Φ50Φ55Φ60Φ70Φ80Φ85Φ90Φ110Φ110L/D ration of screw30:1Specification of Die HeadΦ40 -100Φ60 -130Φ70 -160Φ90 -200Φ110 -250Φ200 -300 350Φ200 -350Φ400 -500Φ400 -600Φ400 -900Thickness of Products(mm)0.004-0.08/0.025-0.15Folding width of Products(mm)100 -600100- 800100- 1100100- 1200200- 1500200- 1600200- 1800200- 2000200- 2500200- 4000Main power(kw)121822222230-3737-4537-4555-7575× 2Max. Output(kg/h)303550608070-100100-130180280450Weight(T)≈1.6≈1.8≈2.0≈2.2≈4≈4.5≈5≈6≈6.5≈8Overall Dimensions(L× W×H) )(m )3.6× 1.5 × 3.54×1.9×3.84.1×2×4.34.2×2.2×4.55× 2.7× 5.55.3× 2.9× 66× 3.1 × 77× 3.3× 7.58× 3.8 × 99× 3.5× 15

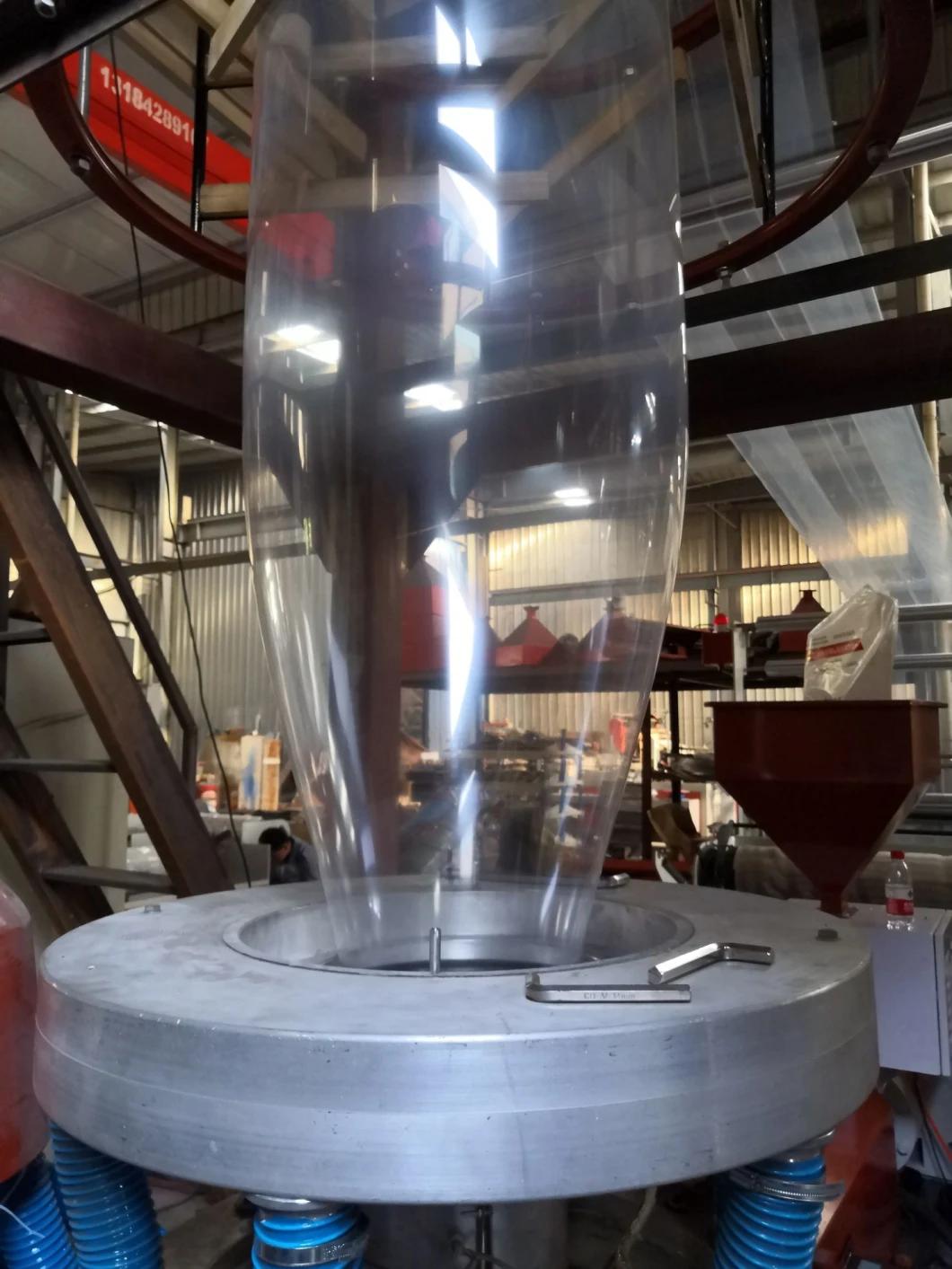

Rotary Die Head Part:

High Speed Rotary Die Head HDPE LDPE LLDPE PE Film Blowing Machine Plastic Extruder Biodegradable Plastic Blown Film Blowing Extrusion Machinery

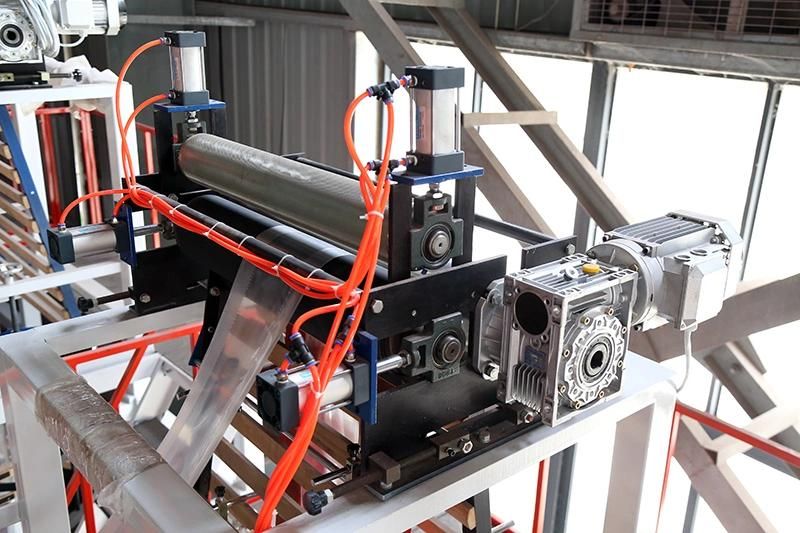

Take -Up Part :

High Speed Rotary Die Head HDPE LDPE LLDPE PE Film Blowing Machine Plastic Extruder Biodegradable Plastic Blown Film Blowing Extrusion Machinery

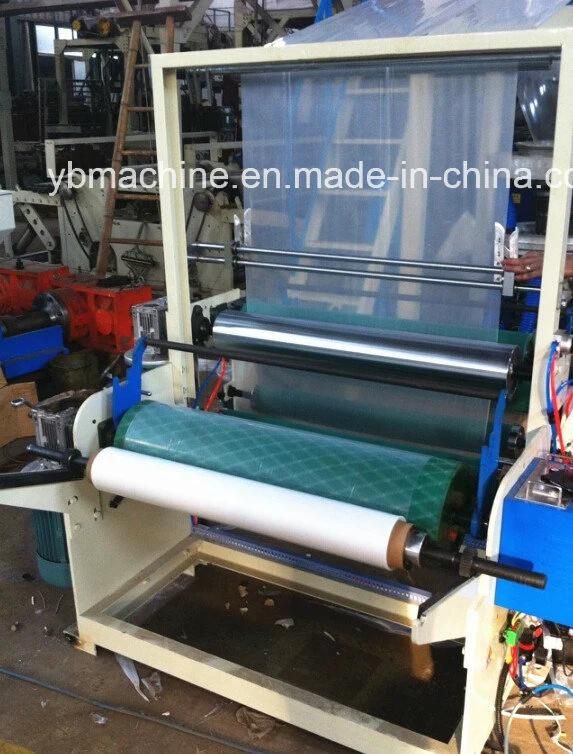

Rewinding Part:

High Speed Rotary Die Head HDPE LDPE LLDPE PE Film Blowing Machine Plastic Extruder Biodegradable Plastic Blown Film Blowing Extrusion Machinery
