• Model NO.：SJZ65,132 SJZ80,156 SJZ92,188
• Customized：Customized
• Condition：New
• After-sales Service：Yes
• Main Motor：Siemens Beide
• Inverter：ABB
• Main Electrics：Siemens
• Temperature Control：Omron
• Machine Color：White, Grey or According to Requirement
• Transport Package：Wooden Case, Film Packing
• Specification：20-630mm
• Trademark：Sunrise Machinery
• Origin：China
• HS Code：84778000
• Production Capacity：100 Set ,Year

Basic Info.

Model NO. SJZ65/132 SJZ80/156 SJZ92/188 Customized Customized Condition New After-sales Service Yes Main Motor Siemens Beide Inverter ABB Main Electrics Siemens Temperature Control Omron Machine Color White, Grey or According to Requirement Transport Package Wooden Case, Film Packing Specification 20-630mm Trademark Sunrise Machinery Origin China HS Code 84778000 Production Capacity 100 Set /Year

Product Description

Sunrise Machinery Co., Ltd. is a professional manufacturer for kinds of plastic pipe machines, PVC profile and panel machines, and plastic recycling machines, etc. We could supply PVC UPVC pipe production line and HDPE PP PPR pipe production line in different diameters.

The plastic pipe machine could produce pipes for water supply, water drainage, Gas supply and conduit wiring application, etc.

PVC & UPVC Pipe Production Line is used to produce PVC & UPVC Pipe with different diameter and thickness which is widely used in agricultural water supply, drainage pipe, electric conduit pipe and so on.

Feature of Machines:

1- PLC control, high degree of automation2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining

Produce process:

 PVC powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker

Technical Parameters:


Diameter(mm)	16-40dual	20-63dual	20-63	75-200	160-315	315-630
Extruder mode	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power (kw)	18.5AC	37AC	18.5AC	37AC	55AC	110DC
Max lineal speed (m/min)	0.5-10	0.5-15	0.5-10	0.5-8	0.5-6	0.5-4
Max capacity (kg/h)	120	250	80-120	180-250	280-350	500-600

Main Composition of PVC Pipe Making Machine:


No.	Item	Quantity
1	SJSZ series conical twin screw extruder (Equipped with automatic feeding unit)	one set
2	Die and Mold	One set
3	Vacuum calibration water tank	One set
4	Haul-off unit	One set
5	Cutter Unit	One set
6	Stacker	One set
	Optional auxiliary machines in production for your choice
A	Printer	one set
B	Mixer	one set
C	Crusher	one set
D	Milling machine	one set
5	Belling machine	one set



FOR HDPE pipe machines, we will use single screw extruder to produce. The process is mixing PE material with color, and feed into extruder for production. There are color line extruder to mark 1 or 2 or 4 color lines according to your requirement. For different diameters, we will use different model machines.

Services:

1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
2. Our machine has one year guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.
3. If the buyer has any problem during the operation, we will offer technical solutions.

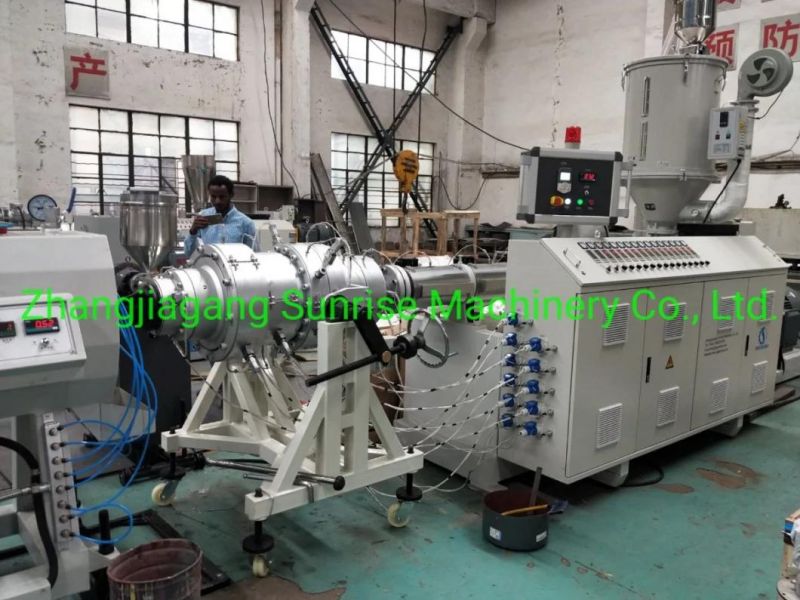

Sinlge Screw Extruder for PE Pipe:

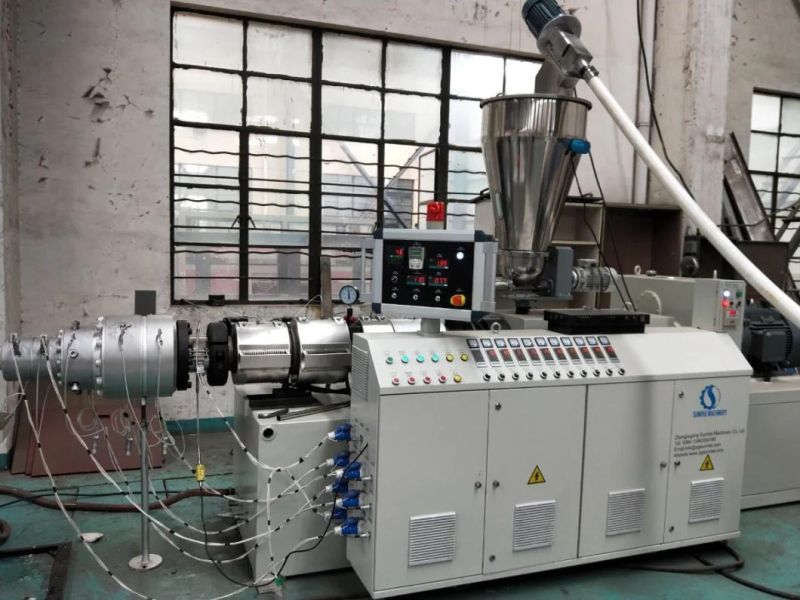

Conical Twin Screw Extruder for PVC Pipe:

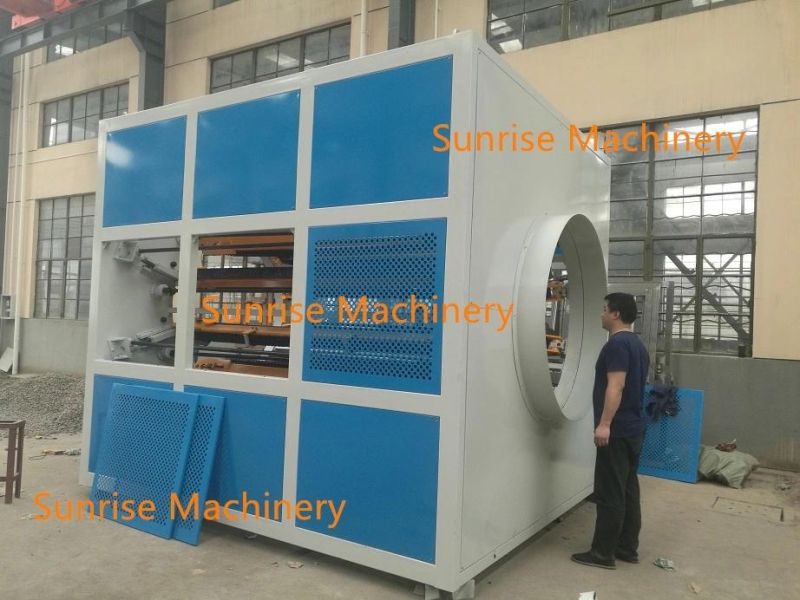

10 Claw Haul Off Machine for 1400mm diameter PE Pipe:




Winding Machine for 75-110mm HDPE Pipe:

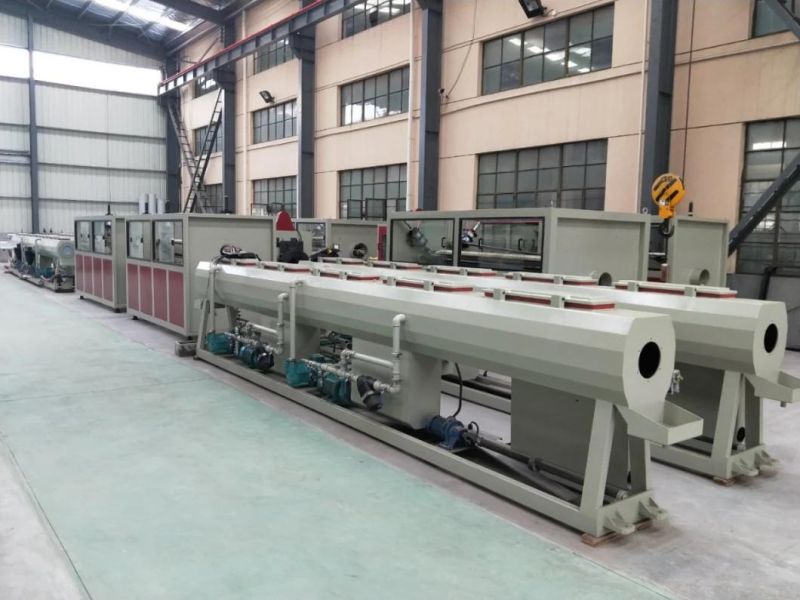

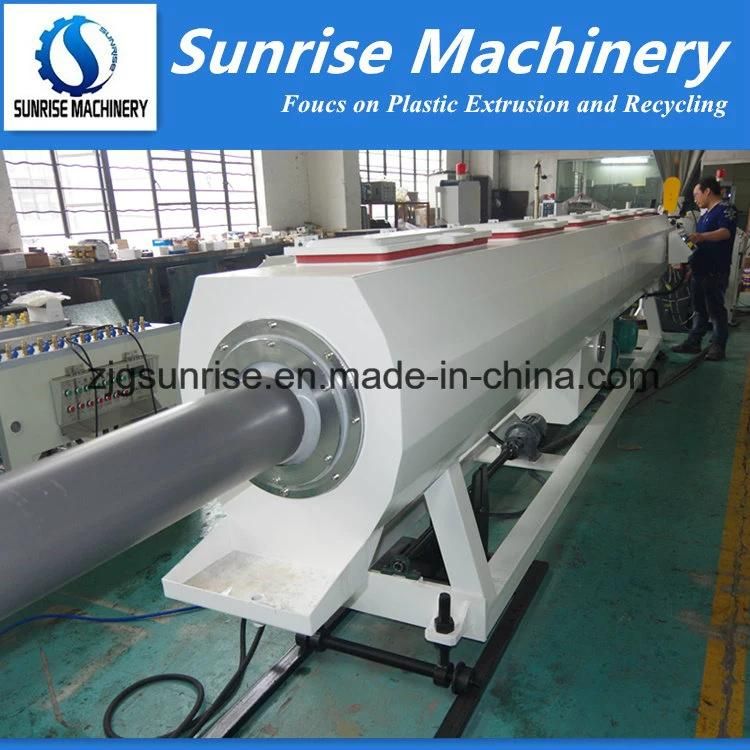

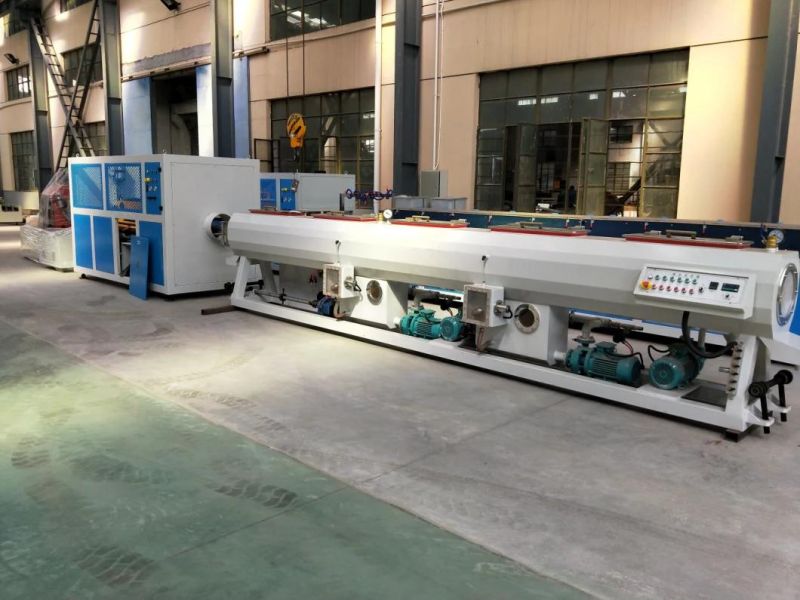

Vacuum Calibration Tank:

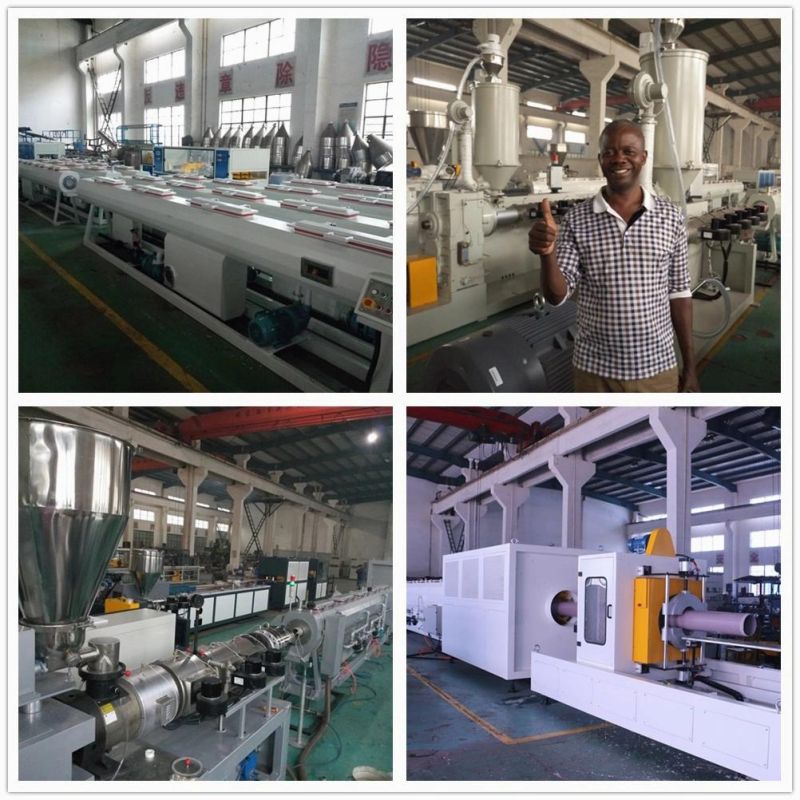

Customers

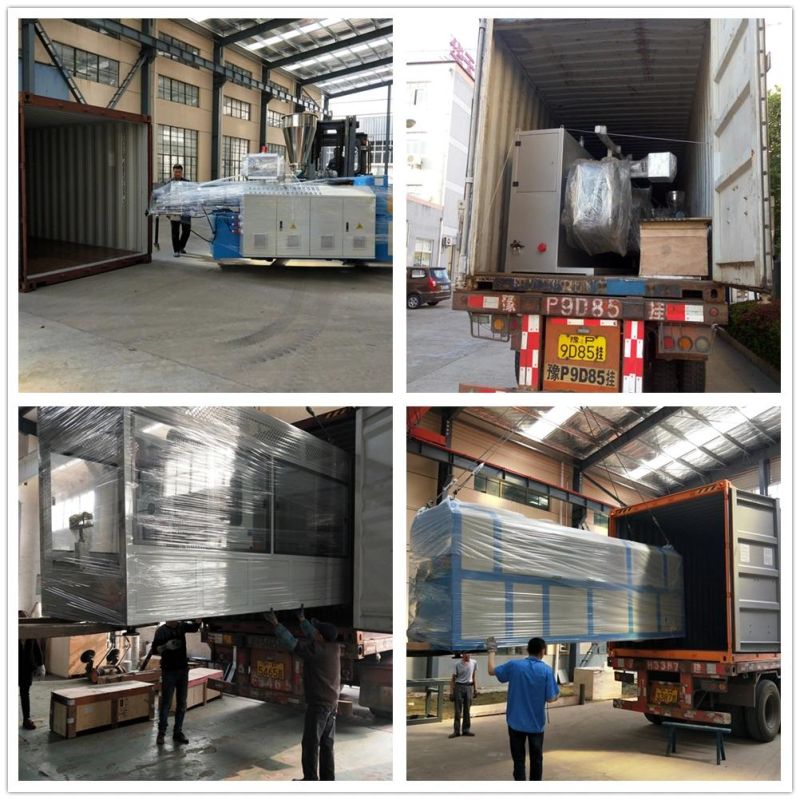

Loading Containers:



Welcome to contact us to find suitable plastic pipe machines for you.

FAQ:

1.Are you manufacturer or trading company?
We are manufacturer for plastic pipe machines, PVC profile machines and plastic recycling machines.

2.Why choose us?
We have 15 years experience for producing plastic machine. Experienced engineers and skilled workers with
good raw material to build the machines with heart and honesty to guarantee the performance of the machines.

3.Delivery time:
40-60 working days.

4.Payment terms:
30% of total amount should be paid by T/T as down payment, the
balance (70% of total amount) should be paid before delivery by T/T or irrevocable
L/C(at sight).

5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.

6.Warranty:
12 month

7. How to send an inquiry?
Plase tell us what kind of plastic pipe and diameters you want to produce, we will prepare proposal for you.


You just tell me what machine you want,let us do the rest work:

1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to
our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Installation and commissioning;
(2) Training your workers;
(3)  Maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
