Automatic Blowing Machine for Pet Bottles

Jiangsu Faygo Union Machinery Co., Ltd.
  • Type：Stretch Blow Molding Machine
  • Automatic Grade：Automatic
  • Cavity Number：4
  • Hourly Outpu：7200bottles,Hour(@500ml)
  • Working Power：26kw
  • High Pressure Require：4m3,30bar

Base Info

  • Model NO.：4 cav
  • Motors：Servo Motor Control
  • Blowing Valve：American Parker
  • Electrical Element：Mistubishi,Siemens
  • Raw Material：Pet
  • Making Method of Parison：Stretch Blow
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008
  • Transport Package：Wooden
  • Specification：CE
  • Trademark：Faygo
  • Origin：China
  • HS Code：1902110000
  • Production Capacity：100PC

Description

TypeFG4Specifications of bottleMould number(piece)4maxi volume (mL)2000maxi height (mm)328maxi diameter (mm)105Square bottle for max diagonal length (mm)115preform SpecificationsSuitable inner bottle neck (mm)20-25preform max length (mm)150Capacity (bottles / hour) at 17 g 500mL7200ElectricityInstall power (kw)51Heating oven total power (kw)46Heating oven actual power consumption (kw)26Voltage / frequency (V / Hz)380v,50hzAllowed voltage fluctuation±10%HP AirPressure(bar)30Capacity(m³/min)4Cooling WaterMold waterpressure(bar)4-6Suitable temperature range (ºC)6-13Flow (L / min)45Oven waterpressure(bar)4-6Suitable temperature range (ºC)6-13Flow (L / min)22Machine Specificationhost machine dimension (m)
length × width × height3.3*1*2.3Weight (Kg)3200Automatic Blowing Machine for Pet BottlesAutomatic Blowing Machine for Pet BottlesAutomatic Blowing Machine for Pet Bottles
Automatic Blowing Machine for Pet Bottles

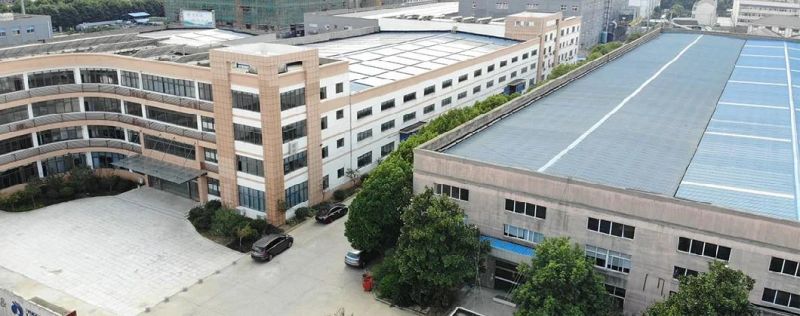

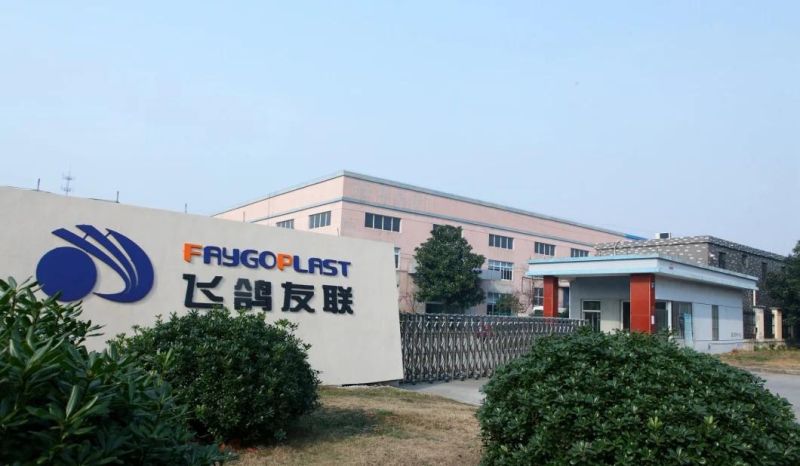

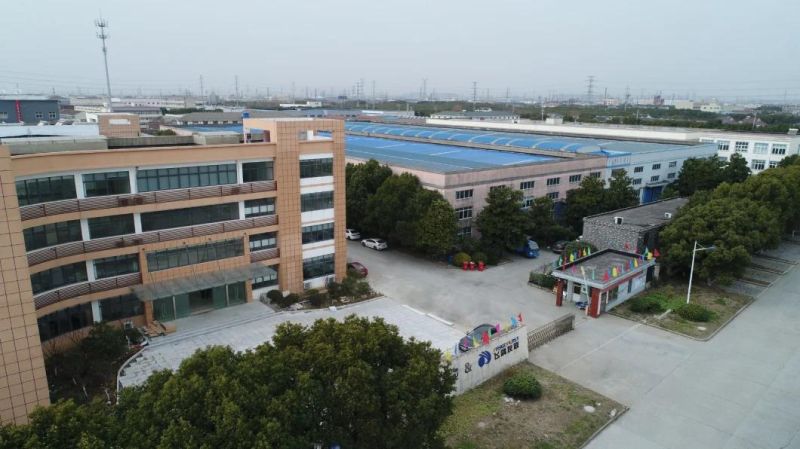

Welcome to visit our factory, in Zhangjiagang city, not far from Shanghai.
