Plastic Machinery

Home > Product > Plastic Crusher

Shaft Shredder Serve The Functions of Shearing, Tearing When in Work Mode

Jiangsu Turui Machinery Co., Ltd.
  • Type：Double Shaft
  • Automation：Automatic
  • Certification：CE
  • Condition：New
  • Weight (T)：3000kg
  • Power：37kw

Base Info

  • Model NO.：Plastic crusher
  • Warranty：1 Year
  • Blades Material：SKD-11
  • Electric：Siemens
  • Key Selling Points：High Productivity
  • Power(W)：37000
  • Applicable Industries：Manufacturing Plant
  • Weight：3000kg
  • Dimension(L*W*H)：Depend on Model
  • Voltage：Requirements
  • Shaft Design：Double
  • Capacity：100-1000kg,H
  • Crush Chamber：540*410-1500*110mm
  • Transport Package：Wooden Case and Plastic Films
  • Specification：540*410-1500*110mm
  • Trademark：TURUI
  • Origin：Jiangsu, China

Description

SKD-11Size of feed port800*900900*11001100*13001400*16001600*1800Rotate the diameter220260300400400Rotate Speed(RPM)1616161616Output(t/h)0.6-11-1.51.5-1.82-2.53-4The blade material22*222*222*230*233*2Motor Power7.5kw*218.5kw*230kw*237kw*245kw*2Boundary Dimension2.4*1.3*1.62.8*1.5*1.93.8*1.4*1.94.2*1.6*24.6*2.6*2.9Weight22.85.46.513

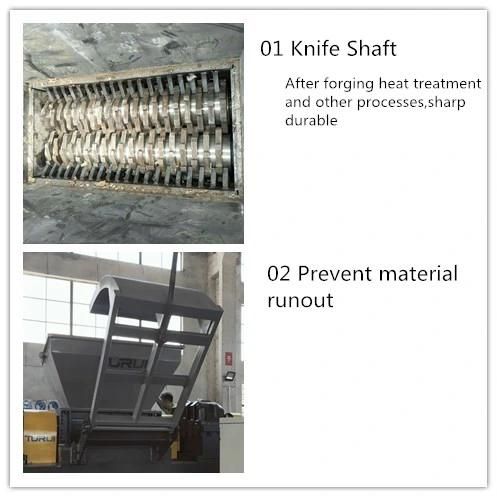

Machine structureShaft Shredder Serve The Functions of Shearing, Tearing When in Work Mode

Characteristics of double shaft shredder:

1. Thick and heavy moving knife, high crushing efficiency, cutting tools are cast in alloy steel, solid service life is long.

2. The frame plate is thick, can resist high torque, and is very strong.

3. The microcomputer (PLC) automatic control is adopted, and the functions of start, stop, reverse and overload automatic reverse control are set up.

4. The equipment has the characteristics of low speed, large torque, low noise and dust can reach the standard.

5. Easy to adjust, low maintenance cost, economic and durable.

6. The thickness of the tool and the number of claws can be replaced according to different materials.

Shaft Shredder Serve The Functions of Shearing, Tearing When in Work Mode
ApplicationShaft Shredder Serve The Functions of Shearing, Tearing When in Work Mode

Double shaft shredder is widely used in the crushing and recycling of rubber, plastic, metal and wood.

The materials suitable for crushing by two independent shaft shredder are as follows:

All kinds of hollow containers: plastic beverage cans, plastic buckets, iron buckets, packing boxes, packaging buckets.

Waste household appliances: TV sets, washing machines, refrigerator shells.

Pipe: large pipe, pipe fittings, PE pipe.

Waste formwork: wooden tray, plastic tray, forklift truck support board.

Used tires: car tires, truck tires.

Waste metal: car shell, aluminum alloy, waste aluminum castings, engine shell, lead and steel plate with thickness below 5mm.

Kitchen waste, domestic waste, animal corpses, RDF derivatives, medical waste, biological orange poles, garden waste.

Rubber head material, paper mill hanging rope.

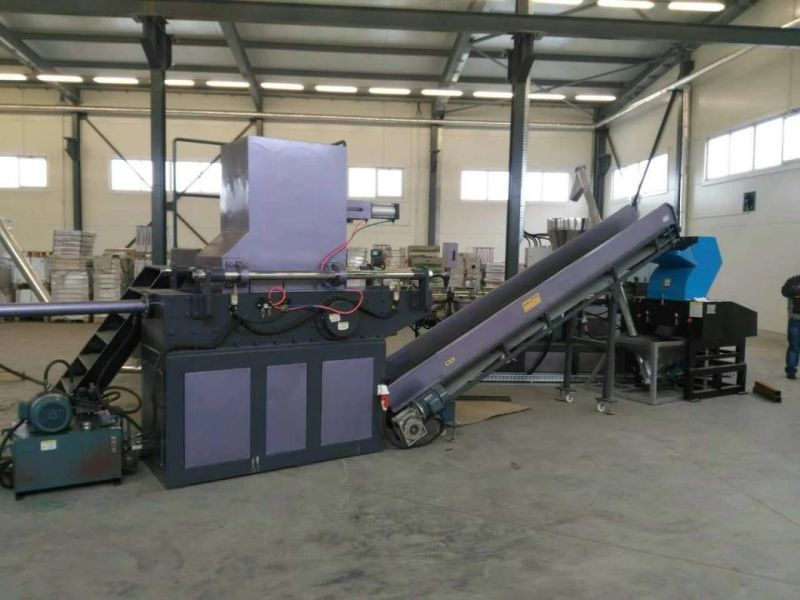

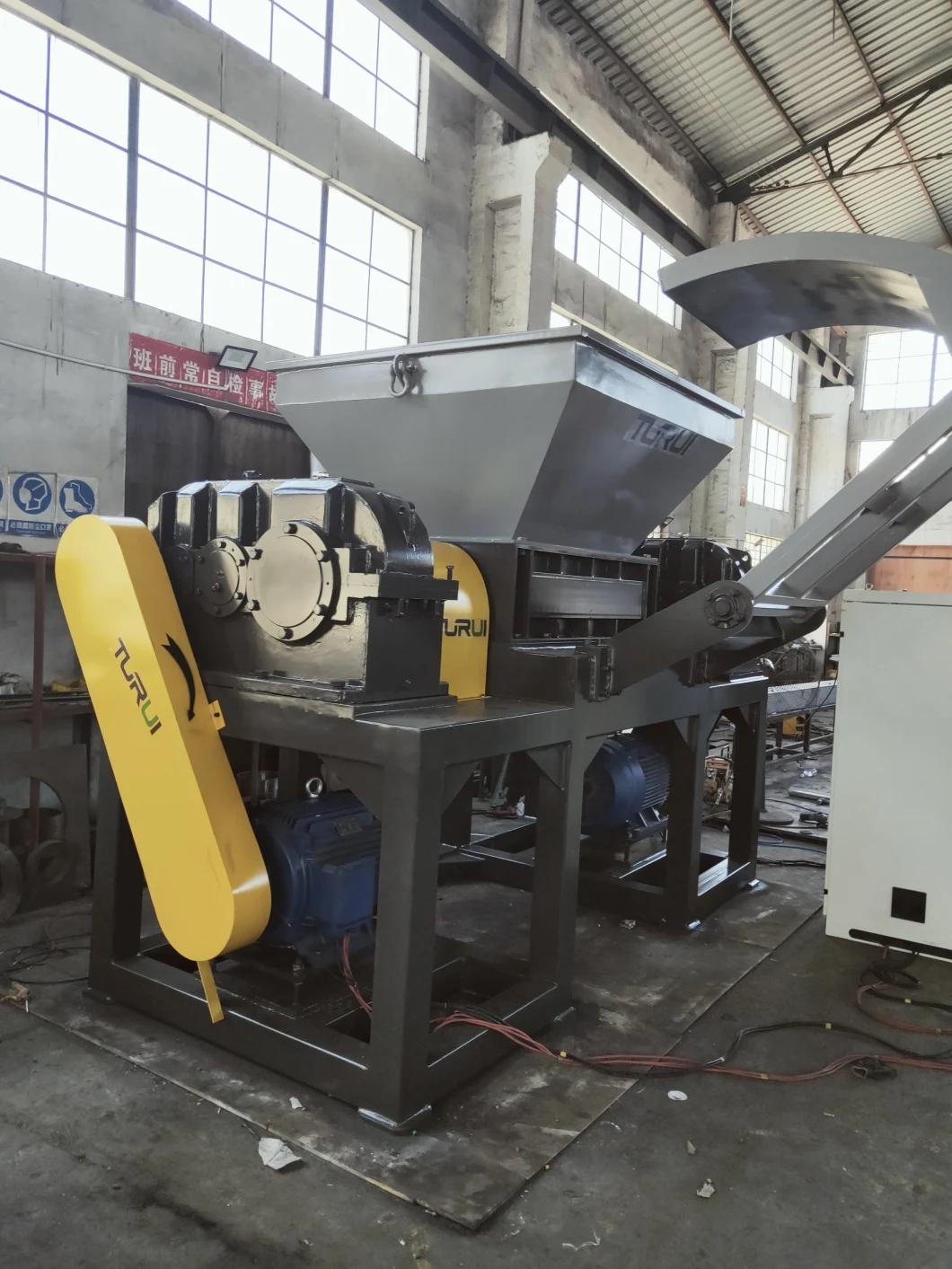

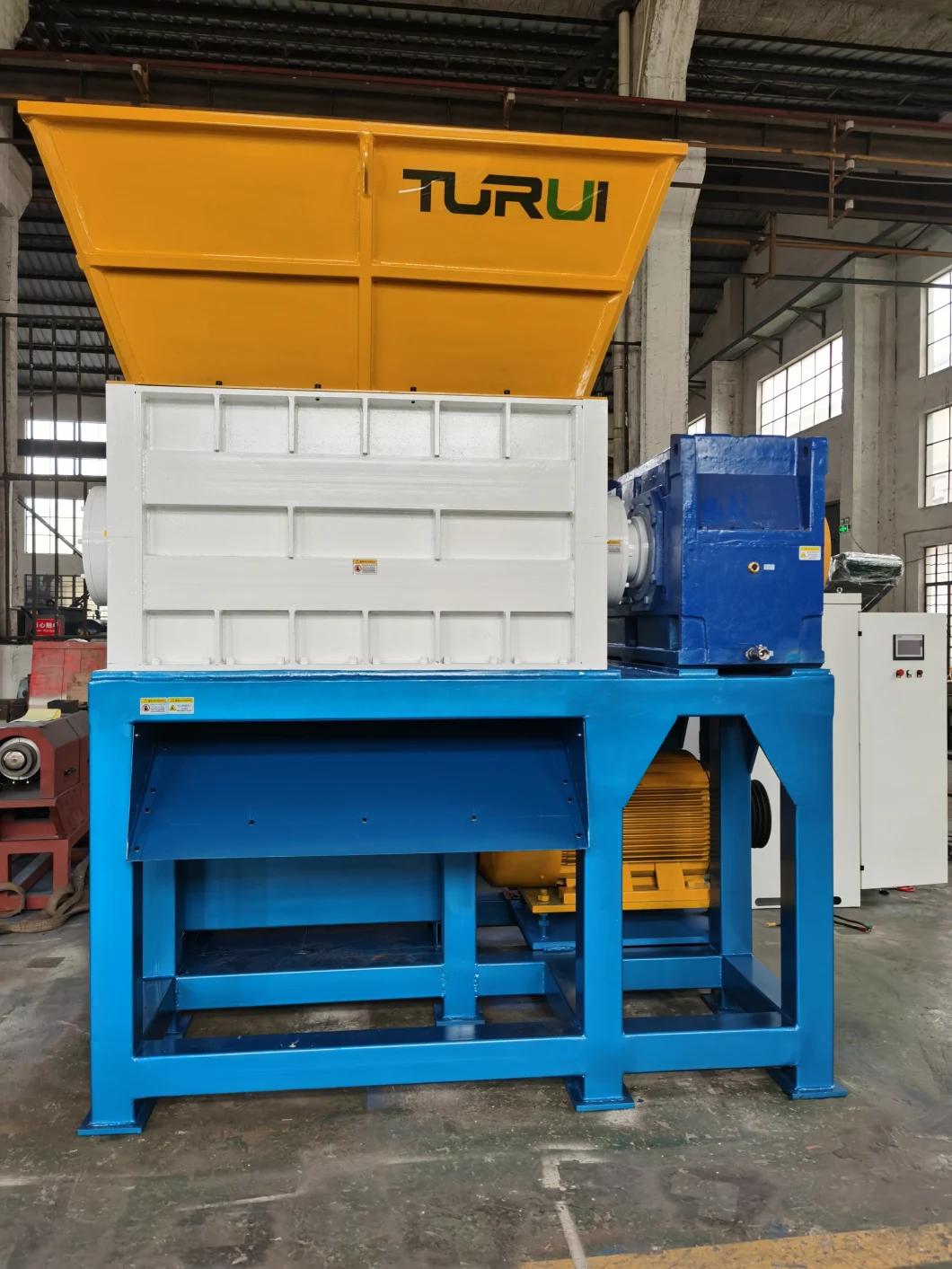

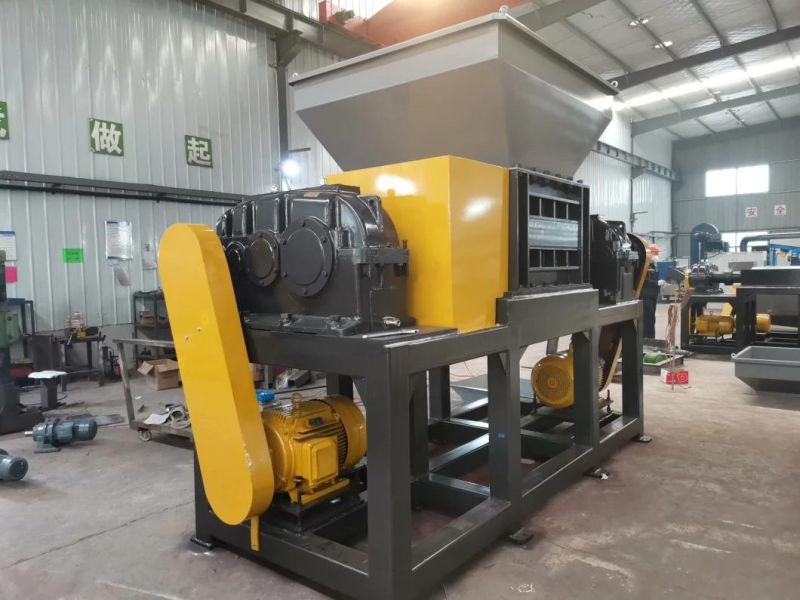

Product Diagram
Shaft Shredder Serve The Functions of Shearing, Tearing When in Work ModeShaft Shredder Serve The Functions of Shearing, Tearing When in Work ModeShaft Shredder Serve The Functions of Shearing, Tearing When in Work ModeShaft Shredder Serve The Functions of Shearing, Tearing When in Work Mode
