• Customized：Customized
• Certification：CE, ISO9001:2008
• Condition：New
• Item 1：Hot-Cutting Pellets Production Line
• Item 2：Face-Cutting Pellets Production Line
• Item 3：PP Pellets Production Line
• Item 4：PE Pellets Production Line
• Item 5：Pet Pellets Production Line
• Item 6：ABS Pellets Production Line
• Item 7：Mould Cut Pellets Production Line
• Screw Number：Single Screw
• Extruder Model：Sj45, 65, 75, 90, 120, 150, 200, 250 for Optional
• Capacity：30-1000kgs
• Motor：Xi′an Sima
• Inverter Brand：ABB Inverter
• Temperature Controller：Omron , Goldkey
• Contactor：Delixi , Siemense ,Schneide
• Color：White and Dark Grey
• Transport Package：Wooden Case
• Specification：International Standard
• Trademark：chenxing
• Origin：Zhangjiagnag of China
• HS Code：84779000
• Production Capacity：30, 000sets,Year

Basic Info.

Customized Customized Certification CE, ISO9001:2008 Condition New Item 1 Hot-Cutting Pellets Production Line Item 2 Face-Cutting Pellets Production Line Item 3 PP Pellets Production Line Item 4 PE Pellets Production Line Item 5 Pet Pellets Production Line Item 6 ABS Pellets Production Line Item 7 Mould Cut Pellets Production Line Screw Number Single Screw Extruder Model Sj45, 65, 75, 90, 120, 150, 200, 250 for Optional Capacity 30-1000kgs Motor Xi′an Sima Inverter Brand ABB Inverter Temperature Controller Omron / Goldkey Contactor Delixi / Siemense /Schneide Color White and Dark Grey Transport Package Wooden Case Specification International Standard Trademark chenxing Origin Zhangjiagnag of China HS Code 84779000 Production Capacity 30, 000sets/Year

Product Description

face-cutting hot-cutting mould cut PE PP PET ABS Pellets granules production line

Description:

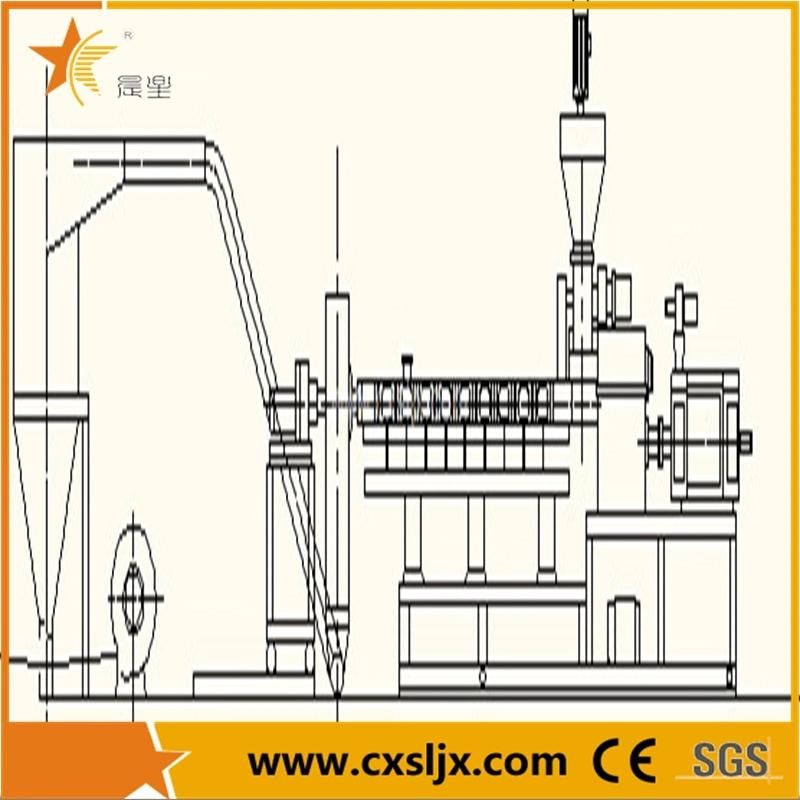

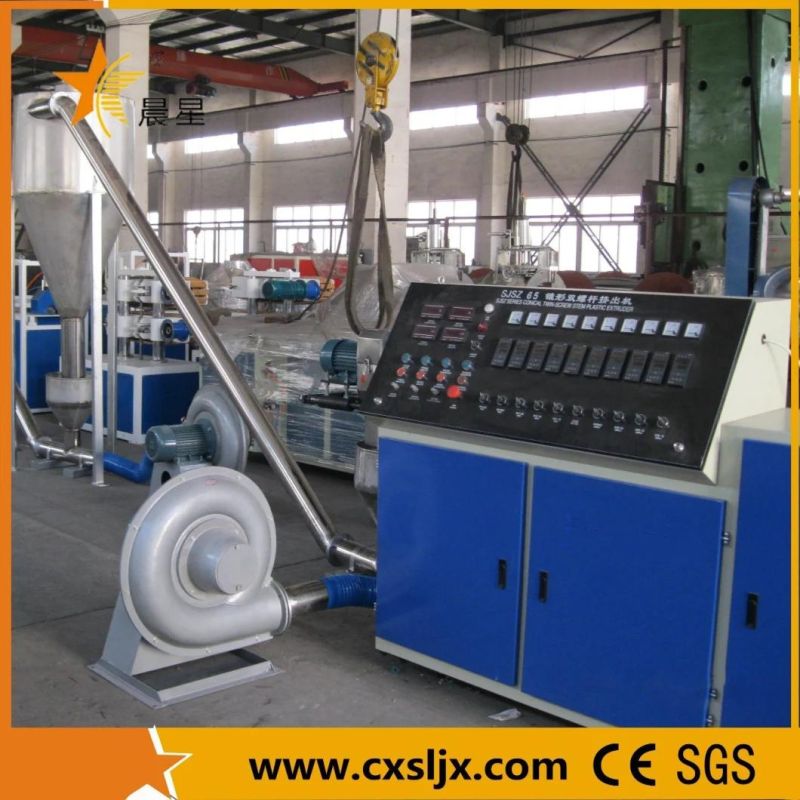

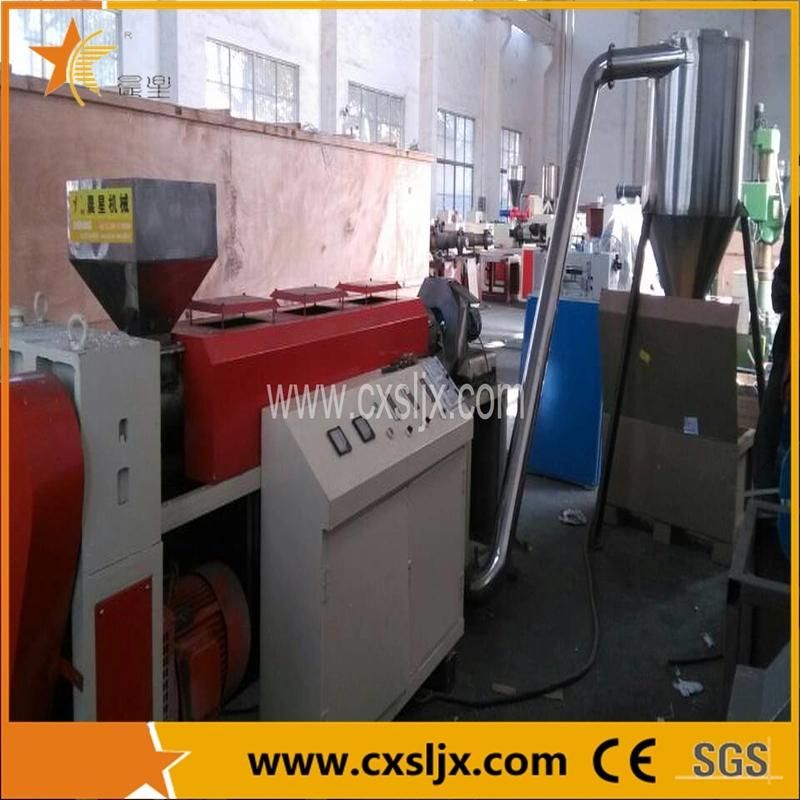

1. This pelletizing machine is composed by SJ series single screw extruder and correspondingly pelletizing auxiliary equipement.

2. Application :It is suitable for pelletiazing PP PE PET material.

3. Advantages : The pellets produced by this line are even ,solid,elegance.

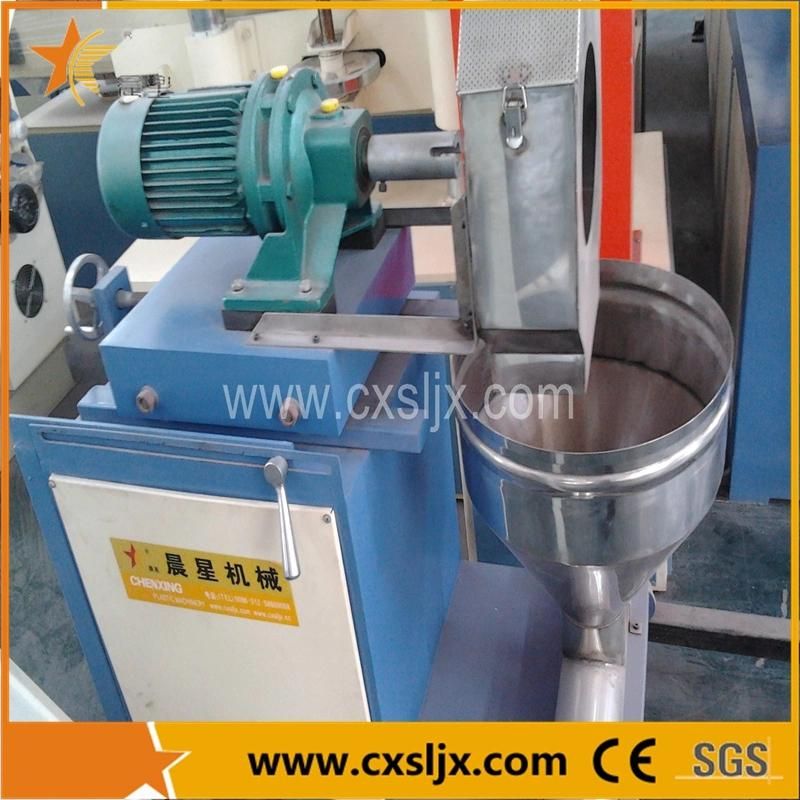

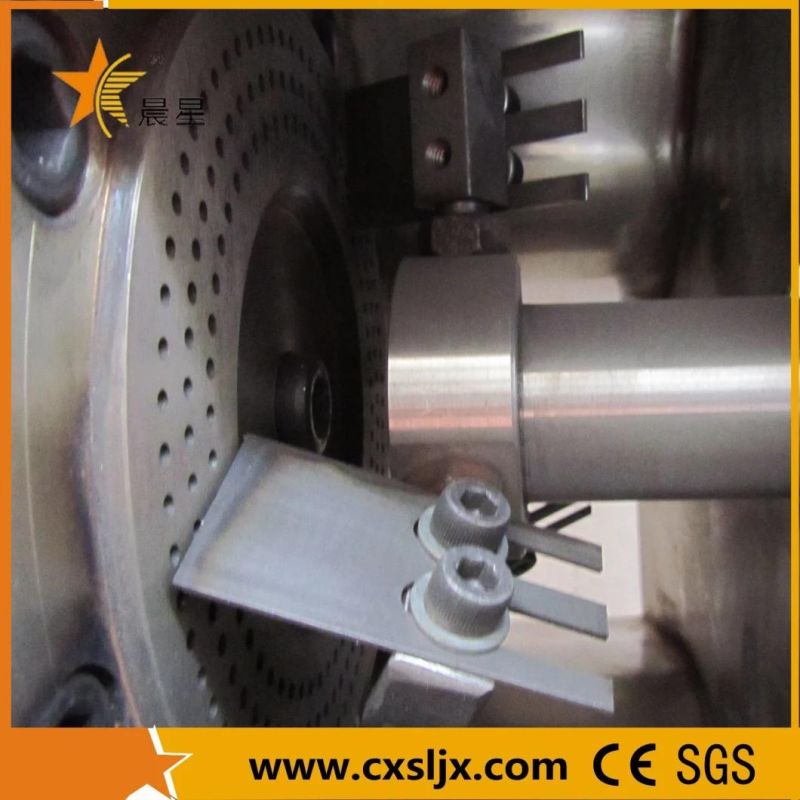

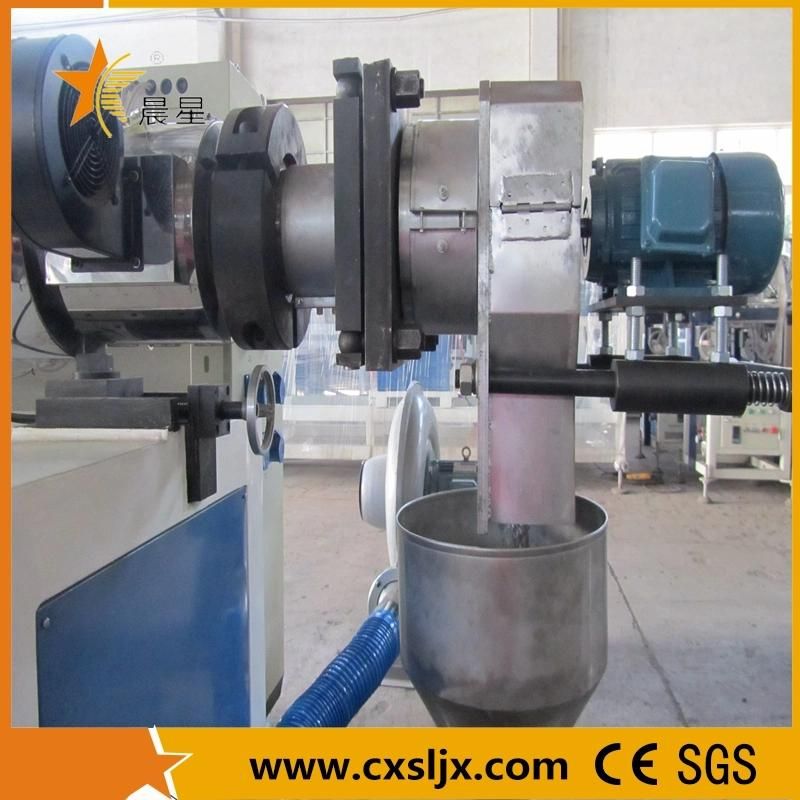

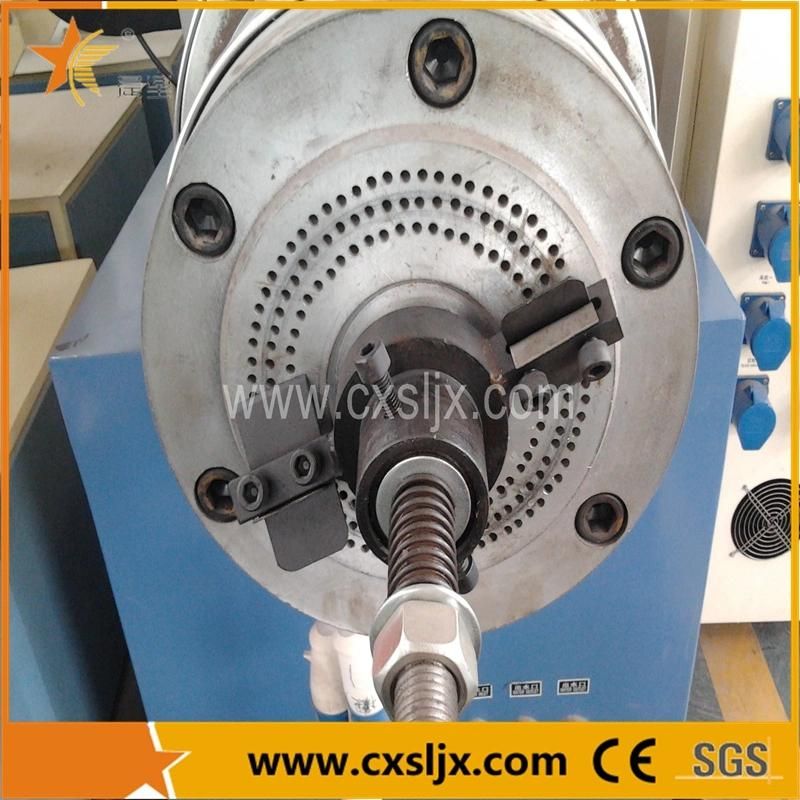

4. The pelletizaing auxiliary equipement includes die face cutter,air transferring unit,vibration separating and cooling unit,with features of high automation auxiliary equipment includes die face cutter,air transferring unit,vibration separating and cooling unit with features of high automation and high production efficiency

5. Our production has exported to many countriesof all over the world and acclaimed by clients.
6. Process Flow of pp pe pet abs pelletizing machine:

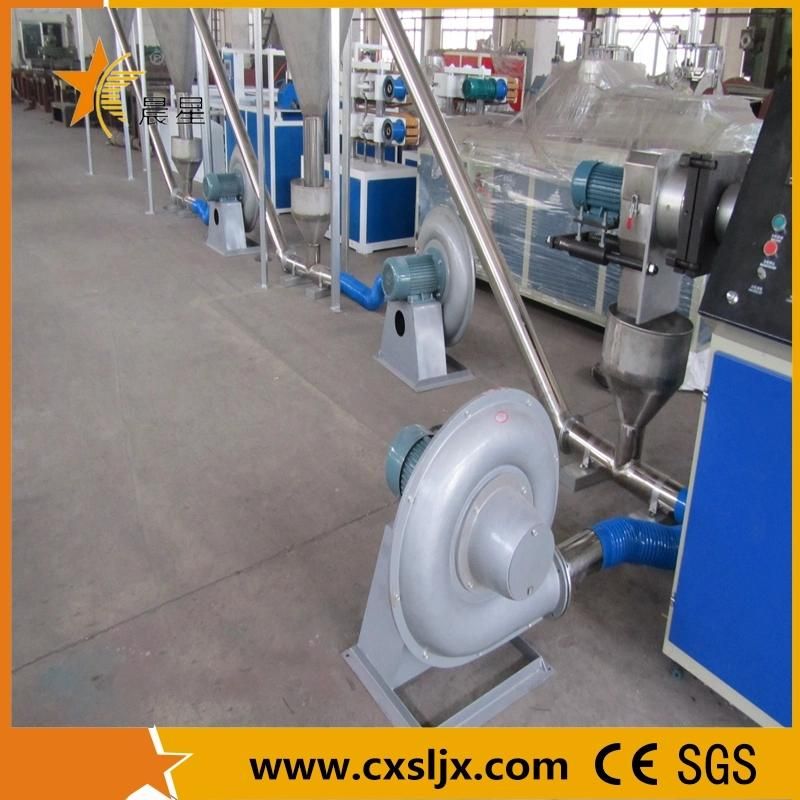

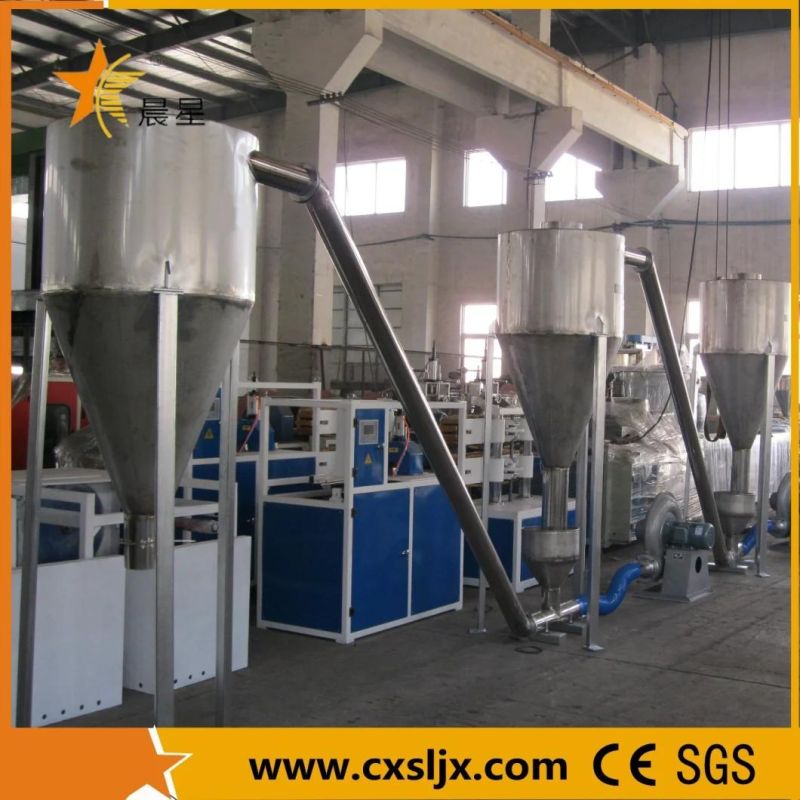

Mixer→Spiral loader→single screw extruder→Extrusion mould→Hot-cutting pelletizer→Air cooling conveyor→Packing
7. Features of  PP PE PET PVC pelletizing machine:

-speed regulator by frequency inverter, stepless speed adjusting, power saving

-conical twin screw extruder suitable for various PP PE PET PVC granule formula,recipe

-all parts touching final granule are made of stainless steel, rusty proof, no pollution
8. Main technical parameters:

Model	Screw size(mm)	Pellet size(mm)	Power of main Motor(kw)	Output(kg/h)
SJ45	45	Φ3-Φ4	11	30-50
SJZ65	65	Φ3-Φ4	18	50-80
SJZ75	75	Φ3-Φ4	30	80-120
SJZ90	90	Φ3-Φ4	55	100-180
