• Model NO.：SJ90
• Feeding Mode：One Feed
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Application：Pet Packing Strap
• Output (Kg/H)：200
• Voltage：380V 50Hz 3phase(Customized)
• Raw Material：100% Recycled Pet Flakes
• Strap Band Thickness：0.6-1.5mm
• Mould Design：Double Outlet
• Strap Band Usage：Packaging
• Motor：Siemens Beide
• Inverter：ABB
• Temperature Meter：Omron
• Extruder：Sj 90 Single Screw Extruder
• Transport Package：1.Mold Package: Wooden Package. 2.Outside Package:
• Specification：9-25
• Trademark：DEERMA
• Origin：China
• HS Code：8477209000
• Production Capacity：10 Sets Pet Quarter

MaterialExtruderwidth mmStrap QuantityOutput kg/hPETSJ 759-192150PETSJ 909-192200PETSJ 1109-254350-400PETSJ 1209-324-8500-600PETSJ 1509-328-12800-900

Machine List

NameQty1. PET dehumidifing & crystallization system one set2.PET-SJ90 single extruderone set3.Filter Exchanger one set4.Machine head mouldone set5.Water cooling tank one set6.Drying system one set7.First pre heating machineone set8.First tensile pre heating machineone set9.Second tensile embossing cooling machineone set10.Tight hot calibration machineone set11.Third haul-off machineone set12.Shortwave infrared ray heating tankTwo sets13.Double winderone set14.Electric control system one set

Feature 1:

•     Raw material process and extrusion system.

•     High performance crystallizing and drying system.

•     Production can use 100% recycled material to obtain a high add value strapping band.

Feature 2:

•    Continuous back-flush screen changer operating technology (Europe technology).

•    100% full automatic self-cleaning screen changer.

•    Double column 4 screen cavities.

•    PLC Control , change screen without production interrupted , not influence the production quality

Feature 3:

•    Special designed hot air stretching oven.

•    Configured with heating unit and automatic temperature control system.High performance heat insulating layer.

•    Better on strip stretching and heating, rapid heating, complete strip orientation stretching.

Feature 4:

•    Heating oven for sizing

•    Special designed technology, make sure the strip forming rapidly • Prevent the strip from un-orientation after orientation, eliminate internal stress,make sure the quality of strip accuracy and quality.

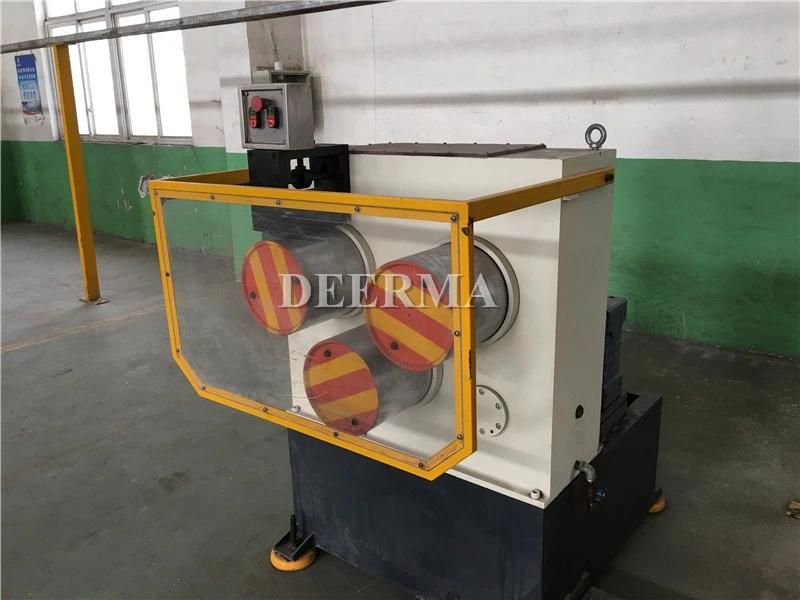

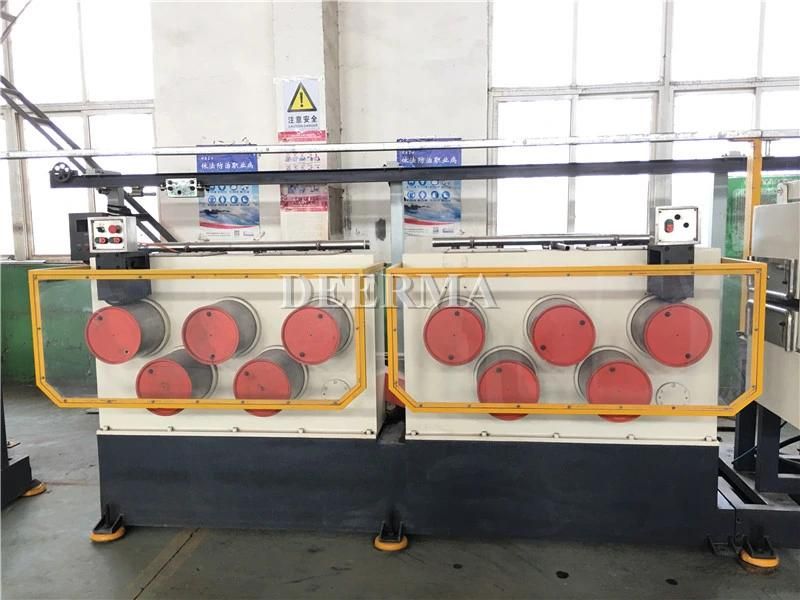

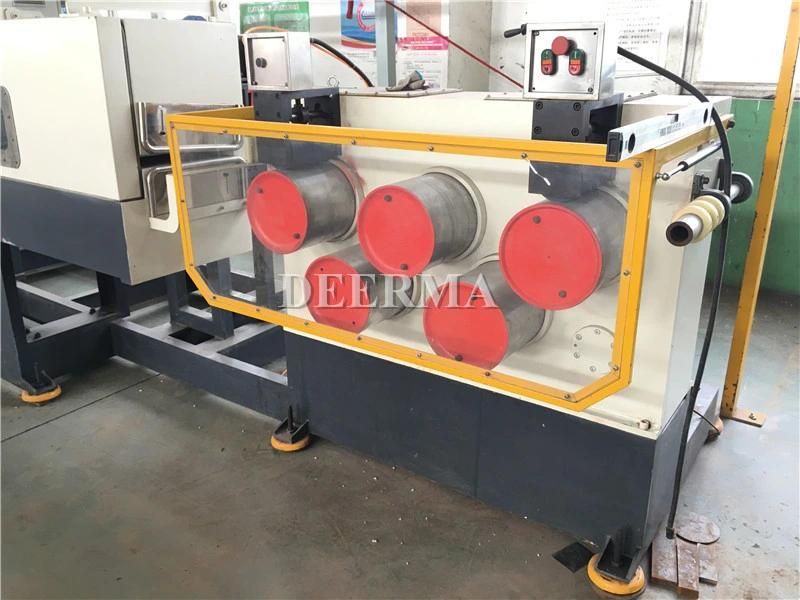

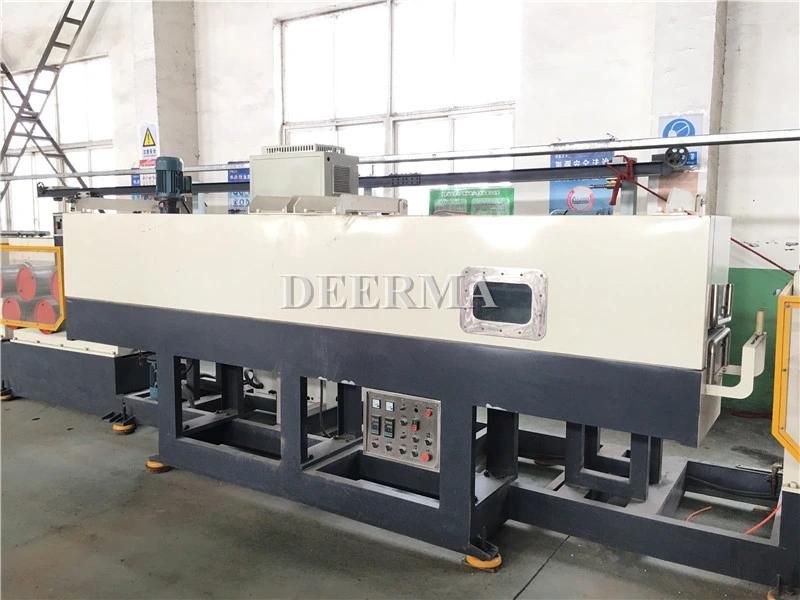

Machine Pictures

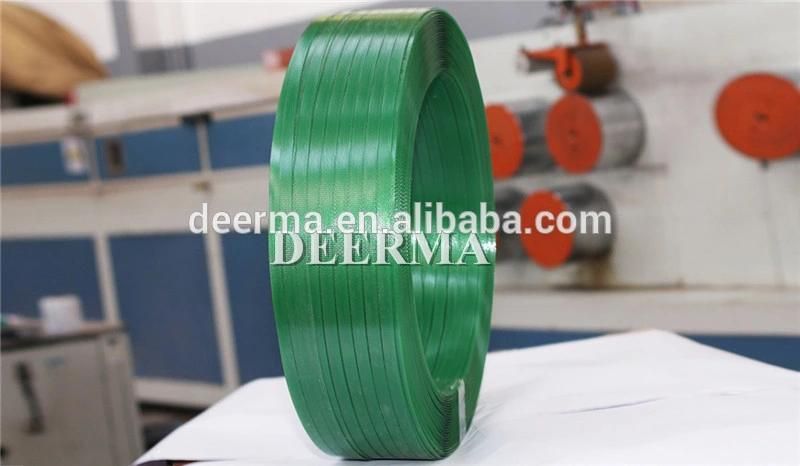

APPLICATION FOR PET STRAPS

Packaging & Shipping


CERTIFICATION



Service & Warranty

Execellent Service-Turnkey Project

DEERMA is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.

A. Free training for maintenance personnel;

B. Installation service& commissioning by porfessional;

C.The  establishment of user fles, a long-term follow-up service and regular return visits;

D. A 24-hour hot-line service ensures the timeliest solution to your faulty equipment.

E.Calling or Door to Door service

F.One year guarantee for whole machine
