Pet Recycled Pellets Crystallizer in 20mins No Clumping No Yellow
Zhangjiagang Lianda Machinery Co., Ltd.- After-sales Service：24hours on Line
- Structure：Horizontal
- Warranty：2 Years
- Crystallization Time Need：20mins
- Clumping or Not：No Clumping
- Control：by Siemens PLC Control
Base Info
- Model NO.：LDBW 600*1000
- Crystallization Pellets Colour：Milk
- Final Moisture：20ppm
- Material Sample Test：for Free
- Transport Package：Film Package,Pallet or Customized
- Specification：80-1000kg,h
- Trademark：LIANDA
- Origin：China
- HS Code：84778000
- Production Capacity：200units,Year
Description
Easy to be yellow Extremely uniform temperature distribution Final moisture About 30-70ppm About 200-500ppm
What we can do for you
√ Up to 60% less energy consumption than conventional drying system √Instant start-up and quicker shut down
√ No segregation of products with different bulk densities √Uniform crystallization
√ Independent temperature and drying time set √No pellets clumping & stick
√ Easy clean and change material √Carefully material treatment

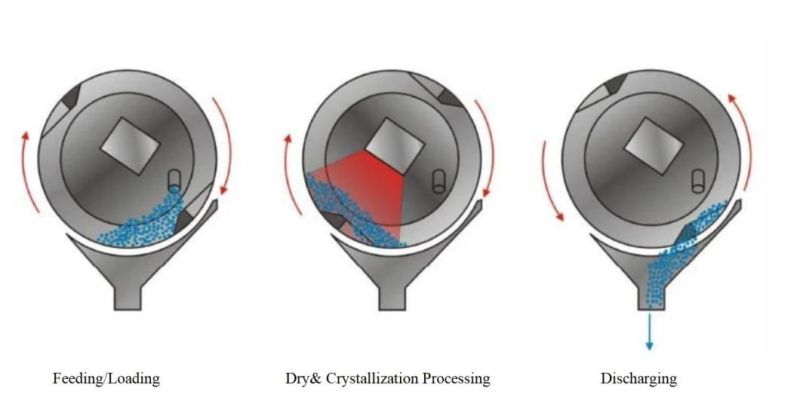

HOW TO WORK
>>At first step, the only target is to heat up the material to a preset temperature.
Adopt relatively slow speed of drum rotating, the Infrared lamps power of the dryer will be at a higher level, then the PET chips/flakes will have a fast heating till the temperature rises to the preset temperature.
>>Drying &Crystallization step
Once the material gets to the critical crystallization temperature, the speed of the drum will be increased to a much higher rotating speed to avoid the clumping of the material. At the same time, the infrared lamps power will be increased again to finish the crystallization and drying. Then the drum rotating speed will be slowed down again. Normally the drying and crystallization process will be finished after 15-20mins. (The exact time depends on the property of material)
>>After finishing the crystallization processing, the IR Drum will automatically discharge the material and refill the drum for the next cycle.
The automatic refilling as well as all relevant parameters for the different temperature ramps is fully integrated in the state-of-the-art Touch Screen control. Once parameters and temperature profiles are found for a specific material, theses settings can be saved as recipes in the control system.

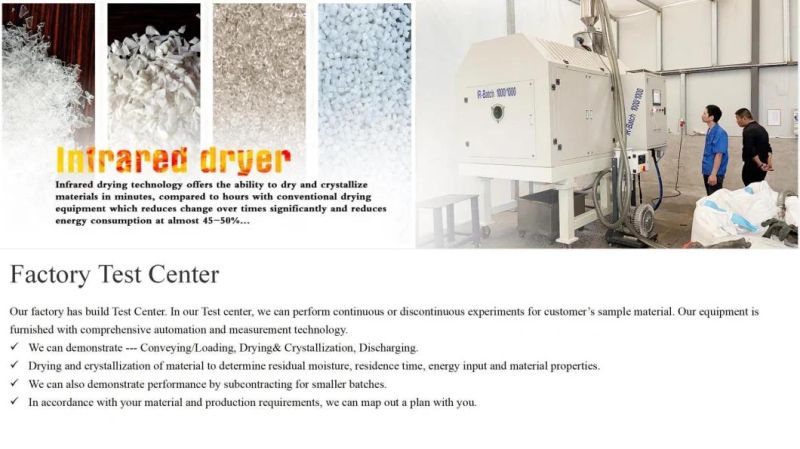

Material Free Testing
Experienced engineer will make the test. Your employees are cordially invited to participate in our joint trails. Thus you have both the possibility to contribute actively and the opportunity to actually see our products in operation.
What we can do for you
√ Up to 60% less energy consumption than conventional drying system √Instant start-up and quicker shut down
√ No segregation of products with different bulk densities √Uniform crystallization
√ Independent temperature and drying time set √No pellets clumping & stick
√ Easy clean and change material √Carefully material treatment
HOW TO WORK
>>At first step, the only target is to heat up the material to a preset temperature.
Adopt relatively slow speed of drum rotating, the Infrared lamps power of the dryer will be at a higher level, then the PET chips/flakes will have a fast heating till the temperature rises to the preset temperature.
>>Drying &Crystallization step
Once the material gets to the critical crystallization temperature, the speed of the drum will be increased to a much higher rotating speed to avoid the clumping of the material. At the same time, the infrared lamps power will be increased again to finish the crystallization and drying. Then the drum rotating speed will be slowed down again. Normally the drying and crystallization process will be finished after 15-20mins. (The exact time depends on the property of material)
>>After finishing the crystallization processing, the IR Drum will automatically discharge the material and refill the drum for the next cycle.
The automatic refilling as well as all relevant parameters for the different temperature ramps is fully integrated in the state-of-the-art Touch Screen control. Once parameters and temperature profiles are found for a specific material, theses settings can be saved as recipes in the control system.
Material Free Testing
Experienced engineer will make the test. Your employees are cordially invited to participate in our joint trails. Thus you have both the possibility to contribute actively and the opportunity to actually see our products in operation.
