• Model NO.：LXPU-H2
• Transport Package：Plywood Case
• Specification：3800*1900*2300
• Origin：Mainland China
• HS Code：8477409000
• Production Capacity：30sets,Month

Basic Info.

Model NO. LXPU-H2 Transport Package Plywood Case Specification 3800*1900*2300 Origin Mainland China HS Code 8477409000 Production Capacity 30sets/Month

Product Description

COMPANY INTRODUCTION VIDEO LINKE: https://youtu.be/ZbQmDYK5p-E

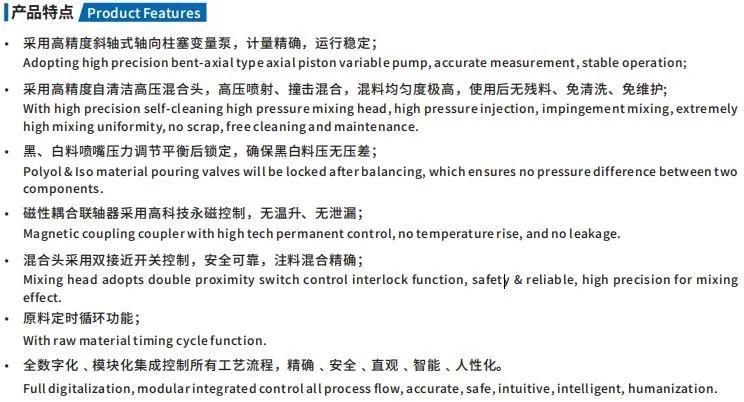

Equipment Characteristic:

High Pressure Mixing Head:
The L type twice mixing head adopts high quality alloy and the most advanced heat treatment process in China.All cleaning can be finished by clean shafts without wasting materials.

High and Low Pressure Switching Valve:
The adoption of high pressure resistant 35Mpa stainless materials optimizes the valve structure and ensure the pressure resistance and anti-abrasive seal without leaking for long term usage.

Permanent Magnet Joint Shaft:
The permanent magnet joint shaft consists of outer rotor,inner rotor and isolation set,which solves the leaking issues in seal and troubles of changing the material pump seal frequently thoroughly.

High Pressure Plunger Pump:
Supplied in set by two famous PU special pumps manufacturers,one is Germany Rexroth, the other is China Gelanrex, Lingxin has built long term cooperation with them.

Human-computer interface:
The use of big touch screen makes the operation intuitive,be easily understood and avoid error efficiently.


Technical Parameters:

Injection Output:	50-5000g/s	Repeat injection accuracy:	±1%
Material tank volume:	250L-500L	Compressed air needed:	Dry,oil free   P:0.7Mpa   Q:600NL/min
Injection pressure:	10-20Mpa(adjustable)	Temperature control system:	Heat: 2×9Kw
Mixing ratio range:	1:5~5:1(adjustable)	Input power:	Three-phase five-wire 380V
Injection time:	0.5~99.99S(correct to 0.01S)	Total power:	39KW-123KW
Material temperature controlling error:	±2ºC	Raw material viscosity(22ºC):	POLY ~2500MPas ISO  ~1000MPas
