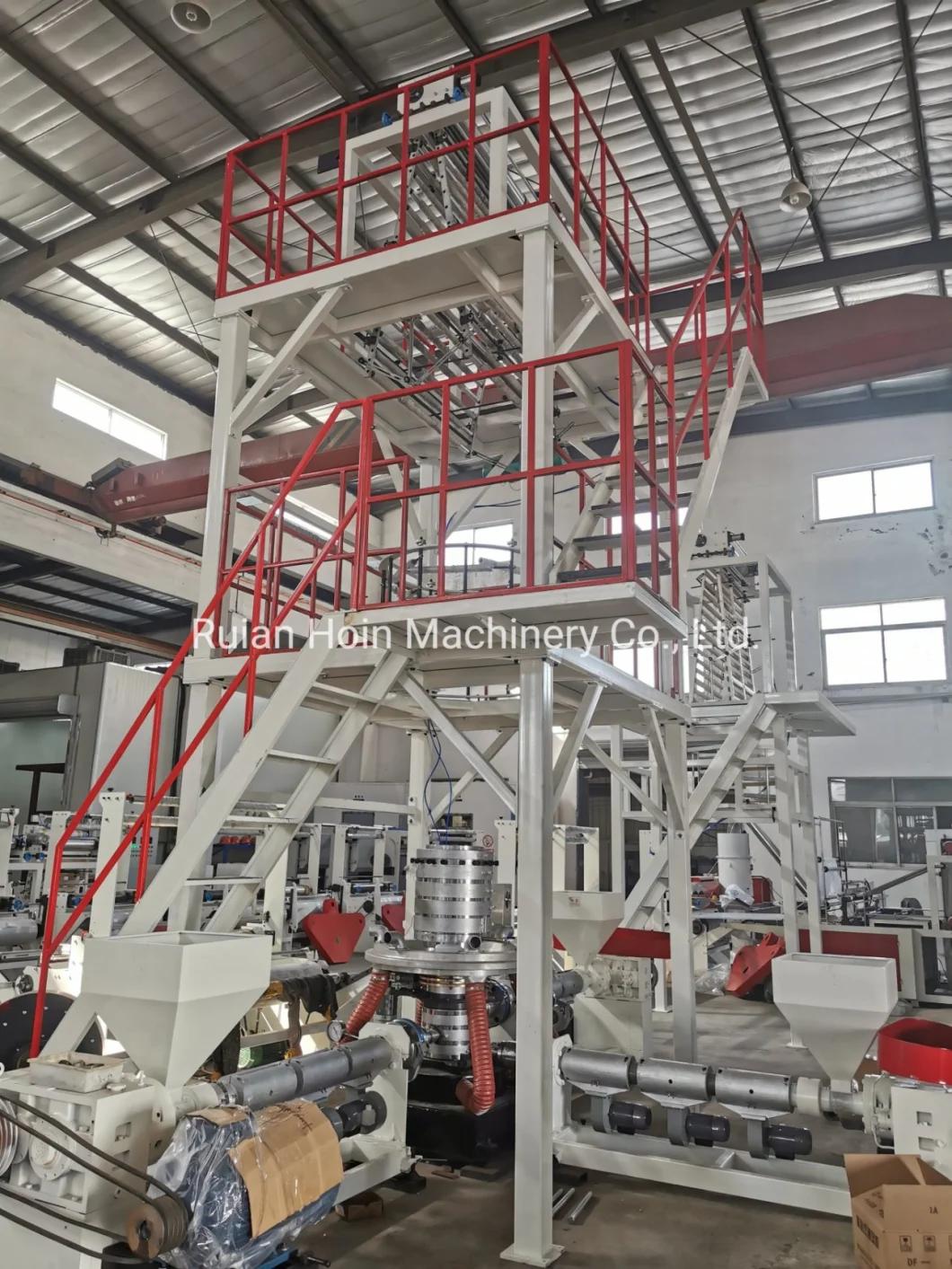

1500mm LDPE HDPE Three Layer Coextrusion Film Blowing Machine with Rotary Die Head
Ruian Hoin Machinery Co., Ltd.- After-sales Service：Technical Support Online
- Warranty：One Year
- Type：Multi-Layer Co-extrusion Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：1500mm
- Screw Diameter：50mm
Base Info
- Model NO.：F3B-RD
- Automation：Automatic
- Computerized：Non-Computerized
- Machine Weight：8T
- Certification：CE, ISO9001:2008
- Multilayer：EVA
- Screw：3 Sets
- Screw Ratio：30:1
- Capacity of Extruding：90-160kgs
- IBC Inner Cooling：Optional
- Corona Treater：Optional
- Horizontal Ratote：Optional
- Transport Package：Stretch Film or Wooden Case
- Specification：CE, ISO9001 certificate
- Trademark：HOIN
- Origin：Ruian, Zhejiang, China
- HS Code：8477309000
- Production Capacity：3 Set,Month
Description
MLLDPE LLDPE LDPE EVAPower of main motor 11kw×3 11kw15kw×11kw 15kw/18.5kw/15kw Max. Extrusion Output 90kg /h 100kg /h 120kg /h Matrix specification φ 200mm φ 250mm φ 300mm Single-face Thickness of film 0.02 -0.10mm 0.02 -0.10mm 0.02 -0.10mm Max. Reduced diameter of film 800mm 1000mm 1200mm electric capacity 70kw 80kw 90kw Machine of weight 18000kg 20000kg 22000kg Overall diameter(L×W×H) 8800×4600× 8000mm 9000×4800× 8500mm 9700×5000× 9000mm
1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box
2. Take Up Section
'A' Shape Film Forming Plate: Aluminum Bar Type
Film Bubble Setting Ring: Aluminum Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder
3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

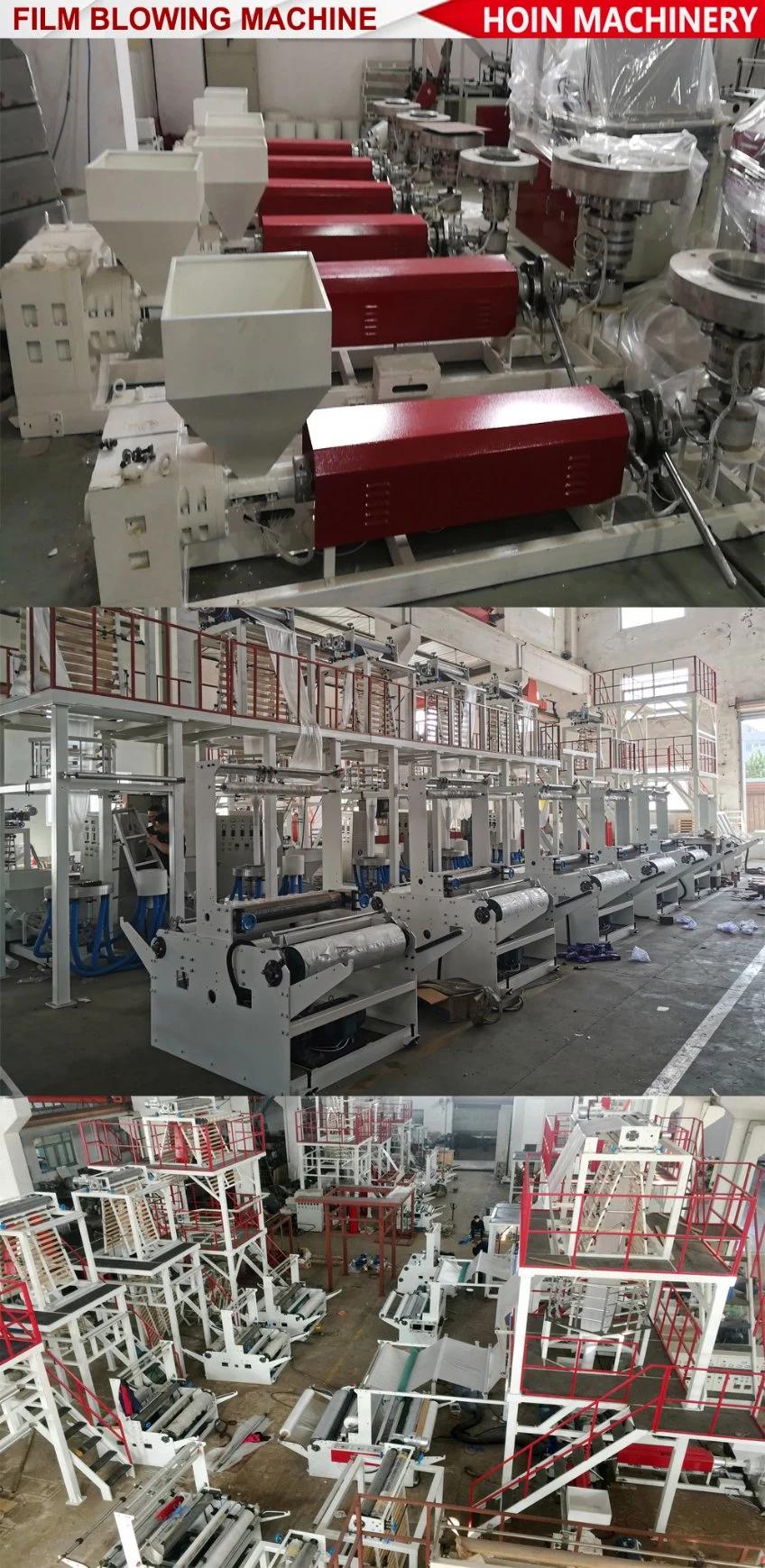

HOIN WORKSHOP
MORE PRODUCTS
AFTER SERVICE OF HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query pls feel free to contact with us!
MS. WendyPan
