Plastic Pellet Recycling Extruding Machine

Zhangjiagang Sevenstars Machinery Co., Ltd.
  • Raw Material:PE
  • Screw:Single-Screw
  • Inverter:Inverter
  • Electromagnetic Heater:Electromagnetic Heater
  • Automation:Automatic
  • Computerized:Computerized

Base Info

  • Model NO.:BDX
  • Customized:Customized
  • Certification:CE, ISO9001:2008, QS, UL, GMP
  • Condition:New
  • Motor:Siemens
  • Output:100kg-1000kg,Hr
  • Cooling:Water Cooling
  • Warranty:12 Months
  • Cutting Type:Noddle Pelleting (Water Ring Pelleter)
  • Screw Diametre:65-180mm (Customized:)
  • Transport Package:Seaworthy Packing
  • Specification:CE ISO9001: 2008 SGS
  • Trademark:BDX
  • Origin:Jiangsu Zhangjiagang
  • HS Code:84772010
  • Production Capacity:400kg,H

Description

Basic Info.

Model NO. BDX Customized Customized Certification CE, ISO9001:2008, QS, UL, GMP Condition New Motor Siemens Output 100kg-1000kg/Hr Cooling Water Cooling Warranty 12 Months Cutting Type Noddle Pelleting (Water Ring Pelleter) Screw Diametre 65-180mm (Customized:) Transport Package Seaworthy Packing Specification CE ISO9001: 2008 SGS Trademark BDX Origin Jiangsu Zhangjiagang HS Code 84772010 Production Capacity 400kg/H

Product Description

Waste Film/Bags recycle Granules Making Line
General introduction
       PE/PP FILM COMPACTING TYPE PELLETIZING LINE
       SJ series film recycling pelletizer production line is the special equipment tor the film recycling and pelletizing With compacting machine, it could pre- compact the thin material into the small granule, making the automatic feeding material easier, and it efficiency improves the production.
       Cylinder type hydraulic changer with vacuum gas exhausting enables the non- stop changing fitter and no leaking material. pelletizing by Die- Face-Cut improves the pelletizing quality.

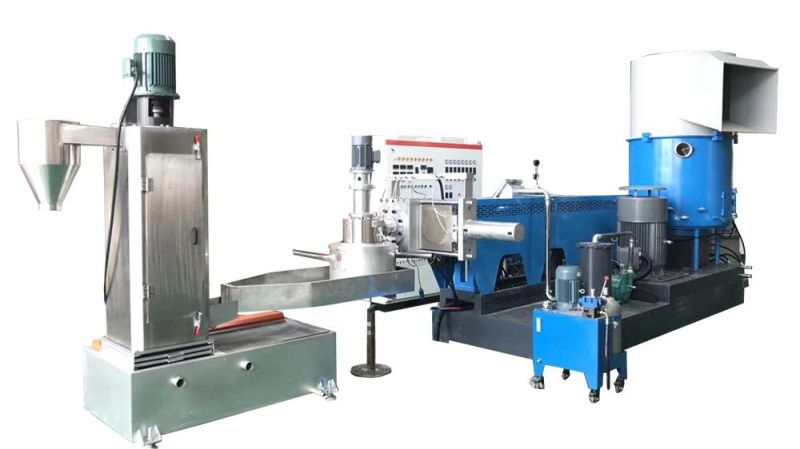

Plastic Pellet Recycling Extruding Machine
Produce-line description
 1.Feeding Machine
     We have a variety of feeding methods for you to choose, you can choose the appropriate feeding system according to the actual situation of your raw materials. Our machine can be used with all kinds of extruders. It can save your labor ,and realize the effect of safety and reliability.
 2.Extruder
     This machine is used to extrude plastic cleaned by high temperature. The extrusion line can be consisted by such accessory machine: Main motor, the gear box, the distribution box, the barrel and screw, the dies, vacuum calibration tank. Main Motor is mainly to supply the power. The Gear box transfers the motor to power. The distribution box enlarges the strength of the power and realizes uniformity. Double screws can make low viscosity index consume of raw material and improve production. It also has a Cooling tank making the heat of screw be appropriate.
 3.Mould
     We use plug board type to change nets and keep machine working. The mound is made by 40Cr nitridation .The pressure sensor prompts to change the nets. There also can install a hydraulic equipment to change the nets more quickly.
 4.Water Channel
     The water channel is 4 meters long.Make out article of cooling
5.Winds drying machine
     Through the double channels strong wind dryer, force drying and cooling article material reach the fast speed effect of shaping up.
6.Pelletizer machine
     It adopts grain design, accuracy is high and can guarantee the rotatory precision and stationery of power, movements of cylinder are controlled by the solenoid valve, the automatic degree is high and  the  noise is low.

Our advantages
    1.Highly efficent:The machine is automatic and with less power consumption.
    2.Double station hydraulic exchange net
    3.This machine can carry out ideal viscosity of PET without complicated precystallization dryer system. Only a bit IV will be reduced. It can improve IV in the condition of adding some
suitable additive.
    5.Screw design: Parallel double-screw.
    6.New designed gear box and transmission system for high torque
    7.Automatic temperature control
    8.Non-pollution

Plastic Pellet Recycling Extruding Machine


The whole production line
The plastic raw materials which have been enhancing, filling and blending should be used for injection or extrusion molding after granulation. For how to choose the appropriate granulation methods, our professional team will provide you professional technical support.

Main Characteristics
1. The gear box
1) Rotating speed: MAX 600~1500RPM
2) Combining host transmission box speed reduction and torque distribution part together, using three axis style design, with compact structure. Speed reduction, torque distribution and two output Shaft radia bearing all use NSK bearings.
3) Gear is 6 grade which is a high precision. High speed overloading hard-tooth surface. The materials are 20CrNi2MoA or 20CrMnMo, HRC 60/62.
 2. The feeding system
Various forms of feeding structure and system single screw extruder, twin screw, hollow spring type, Mesh and mesh, can cover the various material status
 3. Screw and barrels
Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to Suit different material. Screw component made of high speed & wear-resisting steel.
The screw elements are designed accurately and made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heater treatment.

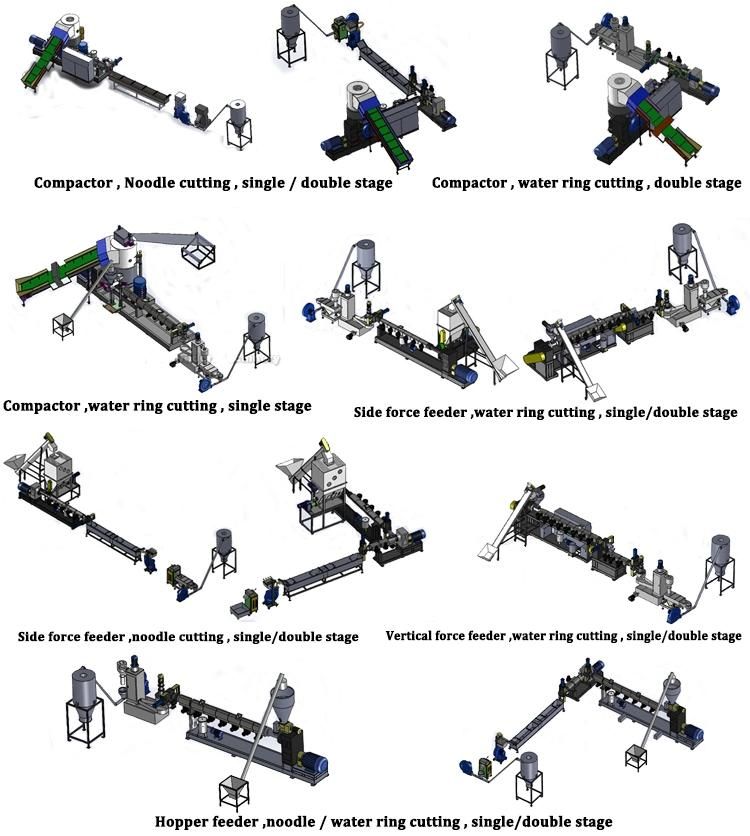

Machine Type

Plastic Pellet Recycling Extruding Machine

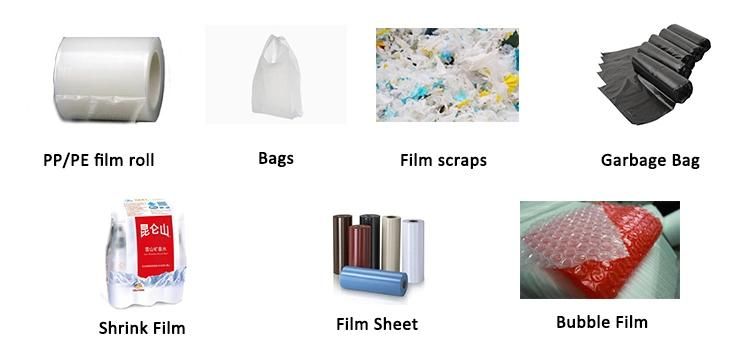

Application Material
Plastic Pellet Recycling Extruding Machine
Plastic Pellet Recycling Extruding Machine

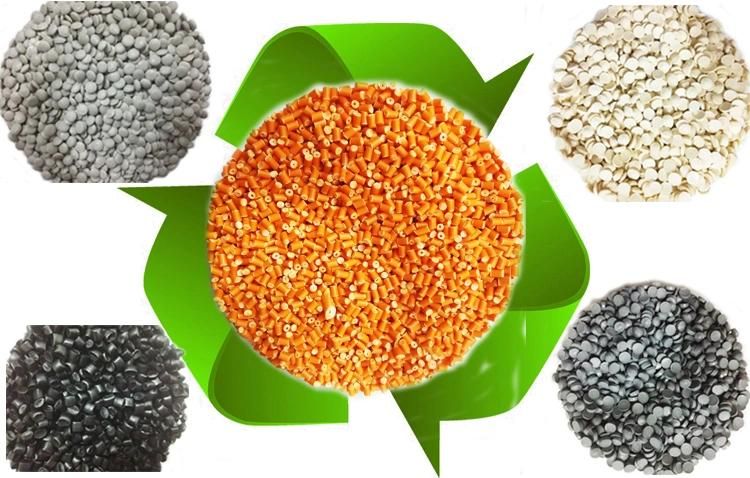

Granules Display

Plastic Pellet Recycling Extruding Machine
Plastic Pellet Recycling Extruding Machine

BRP twin screw pelletizing machine technical parameter:
ModelScrew Diameter
D (mm)

screw L/D

screw speed
N (r/min)
Main motor power
P(KW)

Screw Torque
T (N.m)

Torque Level
T/N³

Capacity
Q(kg/h)
BRP2021.728~406003/4304.83-15
BRP3535.528~5650011 / 151154.220-70
BRP5050.528~5650045 / 55 / 754255.180-150
BRP52B51.428~56400/500/600/80045 / 55 / 754255.1120-280
BRP6562.428~56500 / 60055 / 75 / 906754.8150-300
BRP65B62.428~56400/500/600/80090/1106754.8200-500
BRP757128~56500 / 60090 /110 /13210054.6300-550
BRP75B7128~56400/500/600/800110 /132/18010054.6300-700
BRP959328~56400 / 500250 / 31528155.9600-1000

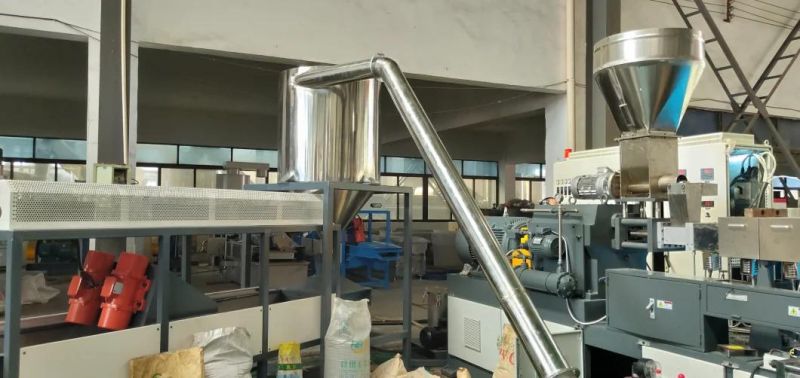

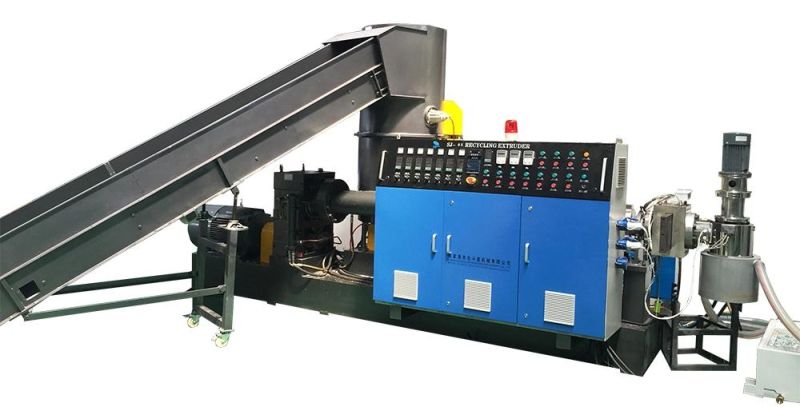

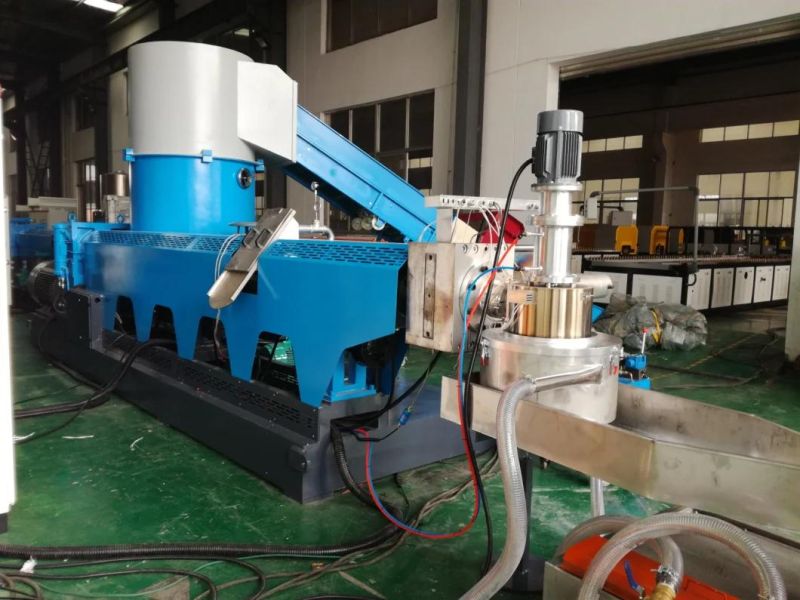

Machine Album(Real shot)
Plastic Pellet Recycling Extruding Machine
Plastic Pellet Recycling Extruding Machine
Plastic Pellet Recycling Extruding Machine

Plastic Pellet Recycling Extruding Machine
Plastic Pellet Recycling Extruding Machine
