• Model NO.：LXCPU
• Power：25kw
• Voltage：380V 50,60Hz

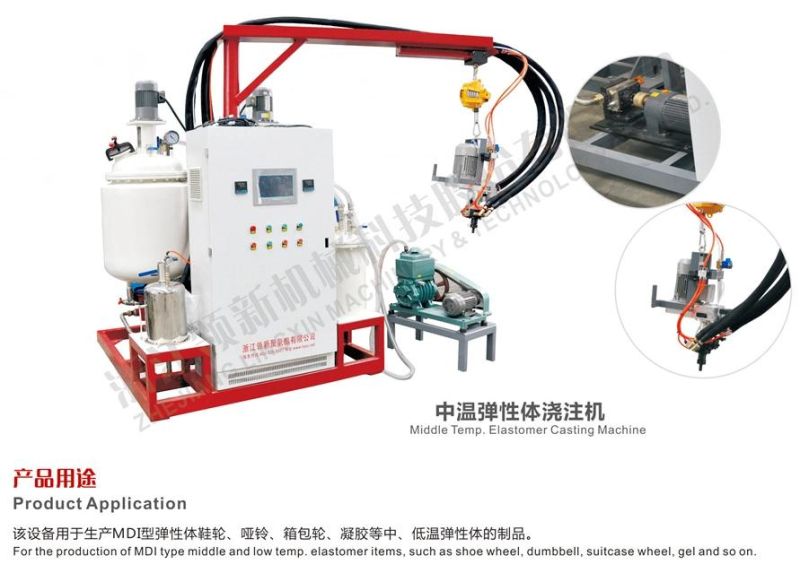

• Machine Type：PU Elastomer Casting Machine
• Material：Tdi, Mdi, Bdo, Moca. Polyol, ISO
• Flow Rate：1.8-50kg,Min
• Application：PU Elastomer Products
• Mixing Ratio：100:50-150
• Transport Package：Plywood Case Packing
• Specification：L2450 X W2200 X H2350mm
• Trademark：Lingxin
• Origin：China
• HS Code：8477409000
• Production Capacity：20 Sets,Month

Application

casting PU elastomer

Output

1.8-7.2kg/min; 3.6-18kg/min; 7.2-31kg/min; 15-50kg/min

Material bucket volume

30L-500L

Power

15-35KW

Injection Pressure

0.01-0.1Mpa

Injection time

0.5~99.99S (correct to 0.01S)

Mixing head

Around 6000rpm, forced dynamic mixing

Compressed air requirement

Dry, oil free P:0.6-0.8MPa

Q:600L/min(Customer-owned)

Vacuum pump

2X-8;2X-15

speed of exhaust: 8L/S;15L/S

Input power

Three-phrase five-wire,380V 50HZ

Temperature control system

25~35KW

Color (selectable)

White/Blue/Red

Weight

2100kg

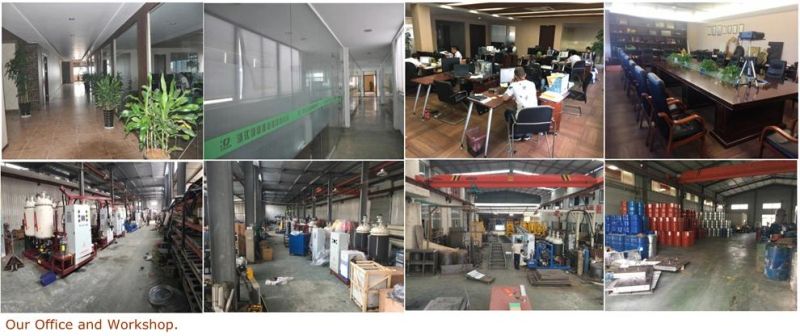

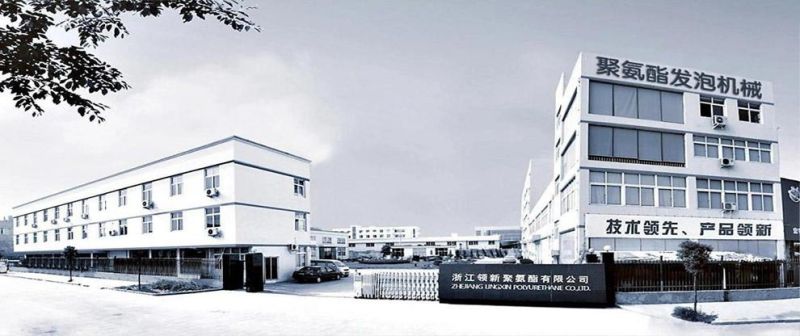

Our company:




Certificate:




Welcome to contact with us /send inquiry for more details of machines. We will reply you ASAP. Thanks.
