• Material：PP PE PC ABS UPVC PVC PE WPC
• Speed：Normal or High Speed
• Layers：Single Layer or Multi Layer
• Application：Water Gas Supply, Irrigation, Marine, Mining
• Extruder：Jws65,33, 75,33, 90,33, 150,38 Customized
• Control：PLC HMI
• Production：Stable and High Speed
• Waranty Time：1 Year
• Engergy Saving：up to 35%
• Pipe Measuring and Controlling：Online Automatic Measuring System
• PLC：Siemens
• Converter：ABB Rexroth
• Motor：Weg
• Screw and Barrel：Jinhailuo Since 1978
• After Sale Service：Yes
• Transport Package：PE Foam and Wooden Pallet Packing

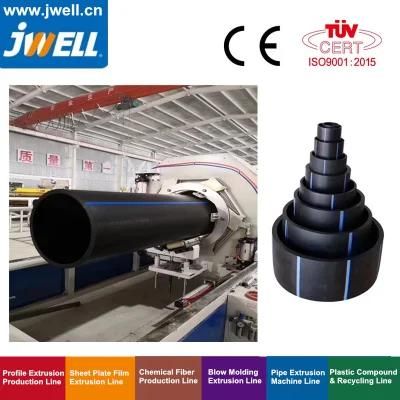

• Specification：20mm to 3000mm diameter
• Trademark：jwell
• Origin：Shanghai China
• HS Code：84778000
• Production Capacity：2000 Lines,Year

Production Width(mm)180300/400600Extruder TypeSJZ51/105SJZ65/132SJZ80/156Motor Power(kw)223755TypeYF180YF300/400YF600Max Output(kg/h)80-100150-200350Cooling Water(m³/h)789Compressor Air(m³/min)0.60.60.6Note:The specifications are subject to change without prior notice.

Product Characteristics:

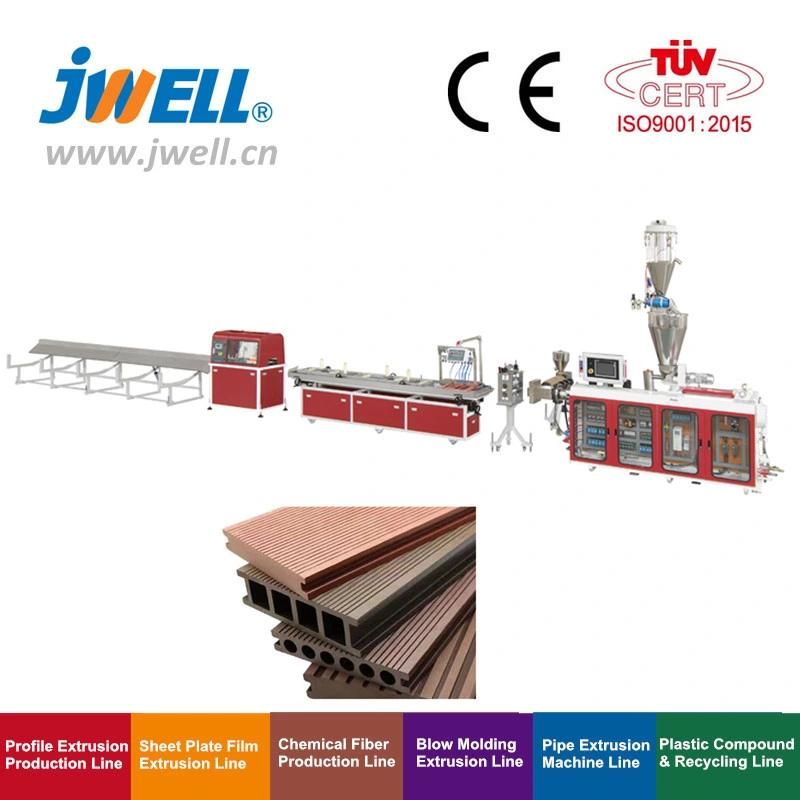

• Mainly contains conical twin-screw extruder, glue extruder, vacuum calibration, hall-off unit, cutter and stacker.
• It adopts intelligent control system, high automatic system, with feature of stability, easy operating and high efficiency.
• By changing different types of mold, it can produce all kinds of fast loading wallboard with different types, sizes, shapes, thickness.
• With rich production experience, Jwell can provide on-site installation and debugging services freely.
• Used for producing WPC decoration product, which is widely used in house and public decoration field, features non-pollution, high lifetime, heat insulation, anti-fire, easy clean and maintanace, easy change and recycleable.
•

Product Accessories:

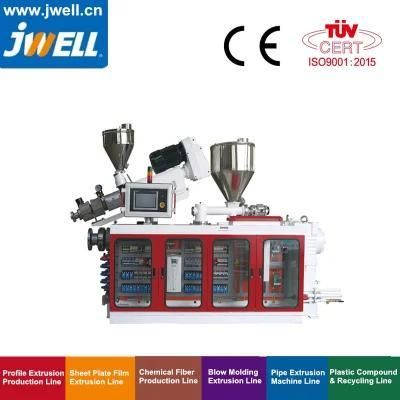

Extruder

Name: YF300/400 Twin screw extruder

Brand:Jwell

Screw: Jin Hailuo

Type:65/132

Capacity:150-200kg/h

Electrical parts

Power: 37kw
Motor: Siemens
Control Panel: Simens PLC
Electrical Spareparts: Schneider

Frequency convertor: ABB

300 Haul-off Unit

Quantity of caterpillar: 2 lines.

Haul-off motor:4KW x 2 sets
Imported inverter
Length of haul-off caterpillar: 2400mm;

Effective length of Caterpillar: 2000mm

Rubber block :400X45X35
Effective width of caterpillar: 400mm × 2
Haul-off speed:0.5~2.0 m/min

YFD300 Vacuum calibration table

Calibration tanks and basin are made of stainless steel
Table length: 6000mm.
Table width: 1800mm
Distance between aluminum track:1100mm
Vacuum pump: 11KW x 2set, 5.5KW x 2set. (Water should be exhausted in case of frozen)
Vacuum degree:0 -0.09 Mpa
Water pump power and qty: 5.5kw ,1.5 kw 1 set for each

YFD300 Vacuum calibration table

Calibration tanks and basin are made of stainless steel
Table length: 6000mm.
Table width: 1800mm
Distance between aluminum track:1100mm
Vacuum pump: 11KW x 2set, 5.5KW x 2set. (Water should be exhausted in case of frozen)
Vacuum degree:0 -0.09 Mpa
Water pump power and qty: 5.5kw ,1.5 kw 1 set for each

300 Haul-off Unit

Quantity of caterpillar: 2 lines.

Haul-off motor:4KW x 2 sets
Imported inverter
Length of haul-off caterpillar: 2400mm;

Effective length of Caterpillar: 2000mm

Rubber block :400X45X35
Effective width of caterpillar: 400mm × 2
Haul-off speed:0.5~2.0 m/min

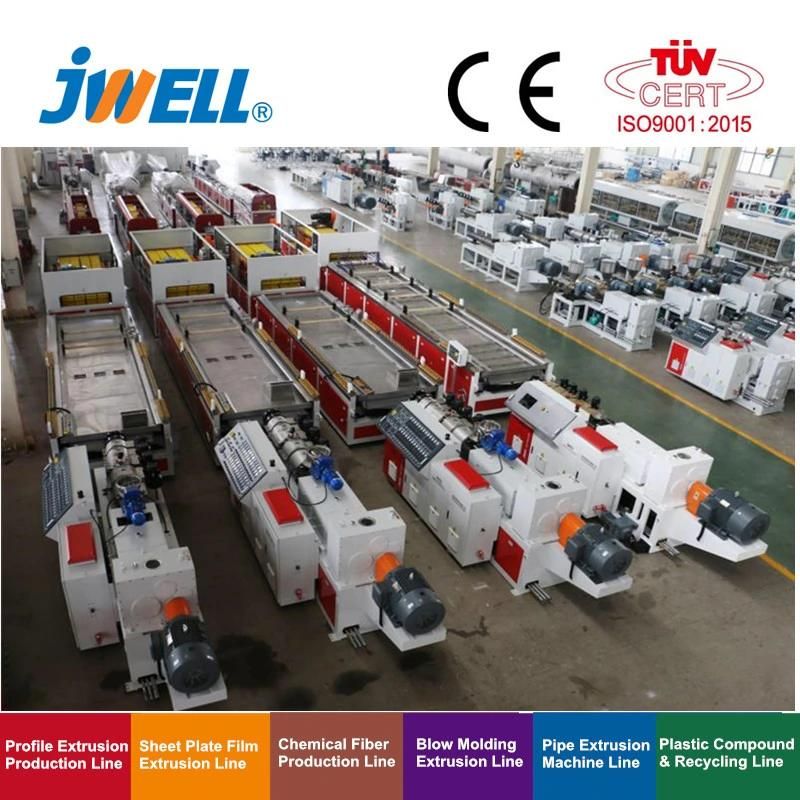

Application : YF series production line is designed for extrusion of PVC plastic window and door's and cross-section cable
pipes,aluminum-plastic composite profiles and etc.PVC profiles are widely used in the building industry,home and office decoration.
Properties and advantages: This line features stable Plasticization, high output,low sheering force,long life service and other advantages. The production line consists of control system, conical twin screw extruder or parallel twin screw extruder,extrusion die, calibration unit,haul off unit, film covering machine and stacker. The extruder is equipped with alternating-current inverter (ABB or Eurotherm drive), imported temperature controller (RKC,Japan). The calibration unit's pump and haul off unit's reducer are famous brand products. After simple changing of the die and screw, it also can produce the foam profiles.





Two step WPC profile machine introduction


Two-step way is that the wood-plastic composite materials complete in different equipments of mixing, from play, extruding products, mixing the raw material in a certain formula, forming wood-plastic particles in the middle, and then squeezing out products.

And nowadays, the two-step way is used currently, application of a wider general use dual-cone-or two-extruder extruder granulation, and then double-cone or single screw extruder extrusion products,mainly used in floor indoor or outdoor, parapets, tray, such as PE plastic extrusion products. Because of the advantages: simple operation, lower requests to the overall technological level and to the matching mold and extrusion equipment than the one-step, and also smaller investment on equipment relatively.

WPC/WOOD pvc door frame production line

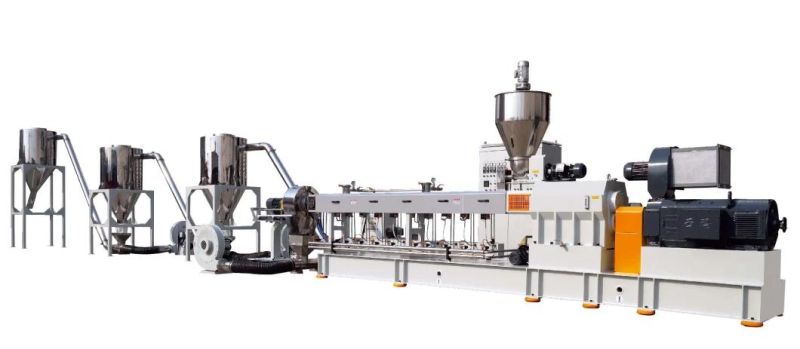

WPC profile compounding machine

This pelletizing machine is composed by a parallel twin-screw extruder and the correspondingly pelletizing downstream equipment, it is suitable for the pelletizing of PVC, PE raw material with wood powder or other additives. The pellets produced by this machine is evenly, solid, elegance.

The palletizing downstram equipment is collected by, air transferring unit. This palletizing downstream equipment has the features of high automation and high production efficiency

Customized Solutions





Company Information

As the vice unit of CPMIA, Shanghai Jwell Machinery Co., Ltd is the biggest manufacturer of plastic extrusion
machinery and chemical fiber spinning equipment in China, its head office is located in thewestern district of
Shanghai. There are 5 production bases, which were located in the western districtof Shanghai, Zhoushan of
 Zhejiang Province, Suzhou of Jiangsu  and Changzhou of Jiangsu , Dongguan of Guangdong , totally covering
700,000 square meters. It has more than 2600 staffs, about 400 technicians and managing staffs.
Main products: various plastic pipes extrusion lines including large diameter PE/PVC double wall corrugated
pipe extrusion line, large diameter PE/PVC solid wall pipe extrusion line, PP-R/PEX/PE-RT cool/hot water pipe
extrusion line, PA/PE/PVC single wall corrugated pipe extrusion line; various plastic profile extrusion lines;
various plastic plate & sheet extrusion lines; chemical fiber spinning; microcomputer controlled automatic blow
 molding machines; plastic auxiliary recycling lines; various single & twin screw and barrel extruders;
T die; screen exchangers; Rollers and Robots.

Why us

Pioneering Efforts, Unity and Struggle
Seeking for innovative and practical technology, We grow rapidly with the market trend. Every person is a product
 person in creating better customer experience. Trust is the corner stone of our corporate. As we truly believe the
staffs are the most precious wealth, if we take care of our employees, so as each person would take care of the
customers. "Be Honest" is the core idea for us to build an everlasting enterprise.
Consistent quality, Brands Building.We have kept an eye on the quality during all procedures since the birth or our enterprise. Consistent quality would
 be the only virtue which we highly uphold. Every product marking JWELL represents safety, stability, reliability.

Cutting edge technology, Added value products
We have professional designing engineer who recognize the market need well. We add value to customers' business
 by innovative designs and products that will provide competitive advantage over your rivals.

Capable of ultimate one stop solution
There are various of products ranges, flexible order quantity, customized designs. Our products are capable of ultimate
 one stop solution for different sizes of projects and business. With pre-sale and after-sale assistance, prompt delivery,
 we care the customers' satisfaction and benefits.





Certificate and Brand



Sales Service Networks



FAQ

Q1. Is Jwell Machinery a Manufacturer?
A1: Yes, We own 5 manufacturing bases and sales center in Shanghai , Suzhou ,Changzhou, Zhou Shan, Dongguan China.
 Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo.After more than 40 years development,
JWELL is one of the biggest extrusion machine supplier in China with 300design&test engineer, 3000 employees.
Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.

Q2: How many brands does Jwell Machinery own?
A2: Jwell Machinery owns more than 20 subsidiaries, China famous brand JINHAILUO, JWELL, BKWELL, DYUN
are our  Trade Marks.

Q3: If we don't find what we need from your website , What should we do ? Do you make extrusion lines as per
customers' specific requirement?
A3: Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed
requirements by email. We will check if we can develop them. We develop new machinery every month, and
some of them may not yet be updated on our website.

Q4: How do you ensure your machinery and service quality?
A4: Our machines taking the European standards and follow the Germany type of business, we cooperation with
International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously
 imports over 1000 international first-class high precision processing equipment such as multistage machining centers, CNC lathes and CNC milling machines from Korea, Japan etc.  All our processes strictly adhere to CE certification,
IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the
machine performances before each delivery. Jwell service engineers will always be here for anything you needed.

Q5: How can  I  order and make payments?
A5: Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and
Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.

Q6: If we find your bank account or email different as before, how should we respond?
A6:  Please don't send the payment and double check with us before arrange payment (Bank details will be listed in
every piece of proforma invoice. ) We are only responsible for email " " .

Q7: How long is the delivery date?
A7: Usually it takes about 1 - 4 months depends on different machinery upon receipt of order advance payment.

Q8: What is your Minimum Order Quantity?
A8:  One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical
innovation or improvements for your future purchasing plan.
Q9: What is your production capacity?
A9: We produce more than 2000 advanced extrusion lines every year world wide.

A10: What about shipping?
Q10: We can send the small spare parts by air express for urgent matter. And the complete production line by sea
 to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest
port is China Shanghai, Ningbo port, which is convenient for maritime transportation..

Q11: Is there any pre-after sale service?
A11: Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing
engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing,
 operation and maintenance service for a life time.

Q12:Are our business& money safe with Jwell Machinery ?
A12: Yes, your business is safe and your money is safe.  If you check China company blacklist, you will see that it is
not contain our name as we never crook our customer before.
