• Model NO.：SY-600
• Power：54,72 Kw
• Diameter of Cutter：583 mm
• Quantity of Rotating Blade：28 PCS
• Capacity：200-500kg,H
• Weight：2280 Kg
• Cooling Method：Water Cooling
• Rotated Speed of Main Axes：2200 R,Min
• Main Electric Components：Schneider and Siemens
• Temperature Controller：Omron
• Powder Size：10-80 Mesh
• Function：Plastic Milling
• Used for：Plastic Grinding
• Material：Alloy Steel
• Blade：SKD-11
• Name：Plastic Miller
• Transport Package：Wooden Case, Film Packing
• Specification：3200*3000*4200 mm
• Trademark：SUYUAN
• Origin：China
• HS Code：84778000
• Production Capacity：200-500 Kg,H

Basic Info.

Model NO. SY-600 Power 54/72 Kw Diameter of Cutter 583 mm Quantity of Rotating Blade 28 PCS Capacity 200-500kg/H Weight 2280 Kg Cooling Method Water Cooling Rotated Speed of Main Axes 2200 R/Min Main Electric Components Schneider and Siemens Temperature Controller Omron Powder Size 10-80 Mesh Function Plastic Milling Used for Plastic Grinding Material Alloy Steel Blade SKD-11 Name Plastic Miller Transport Package Wooden Case, Film Packing Specification 3200*3000*4200 mm Trademark SUYUAN Origin China HS Code 84778000 Production Capacity 200-500 Kg/H

Product Description

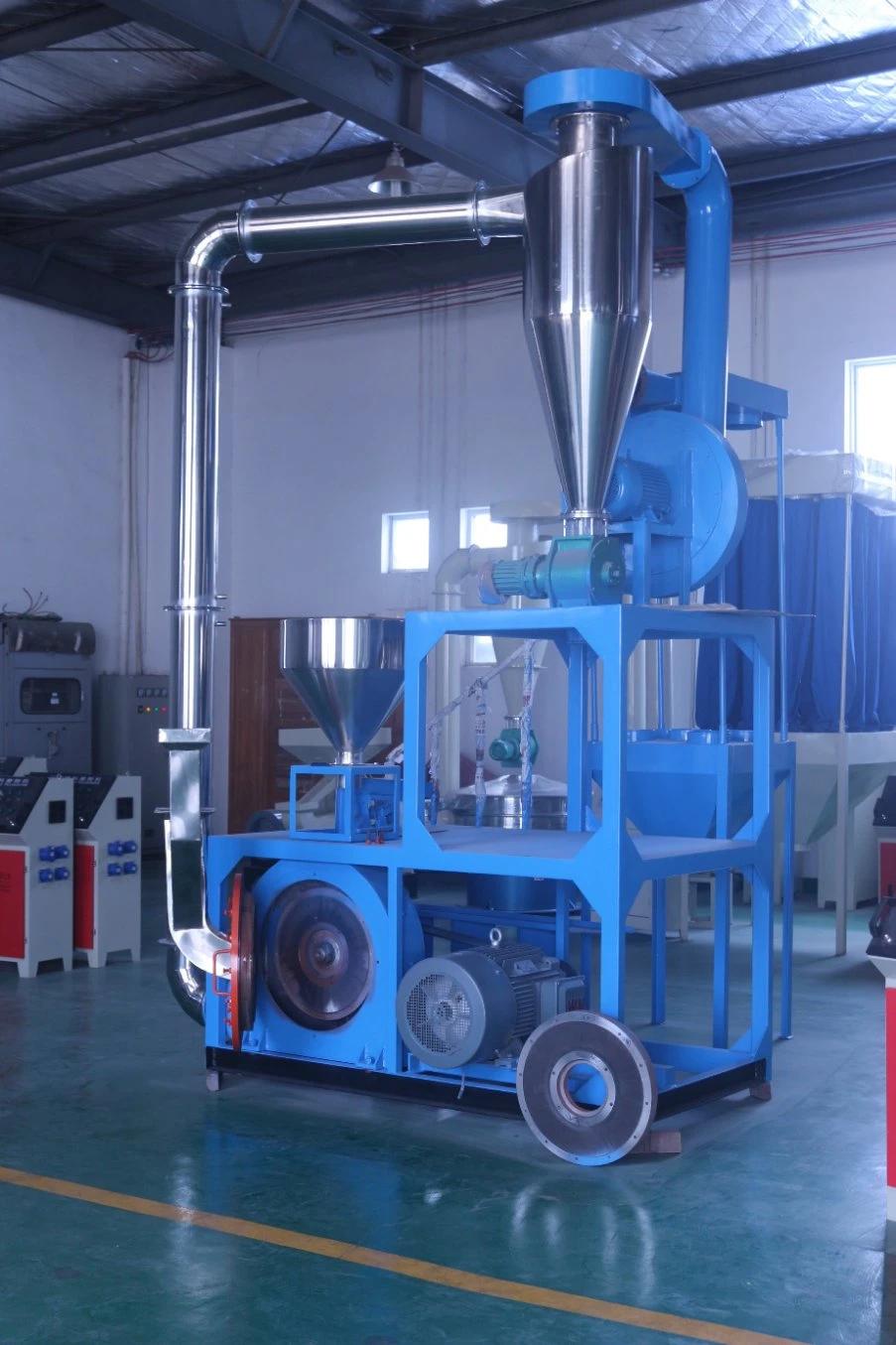

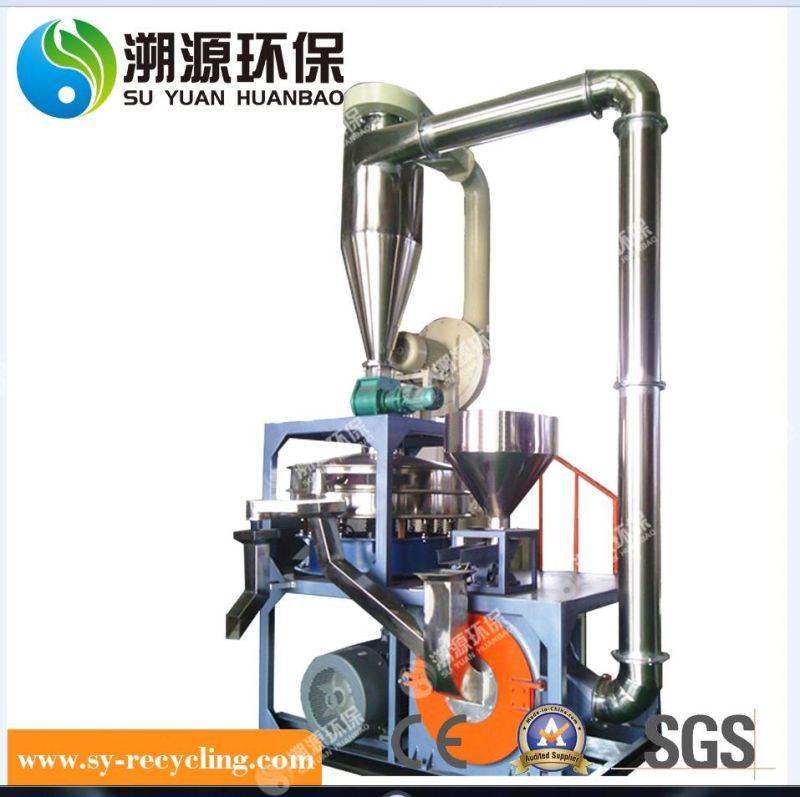

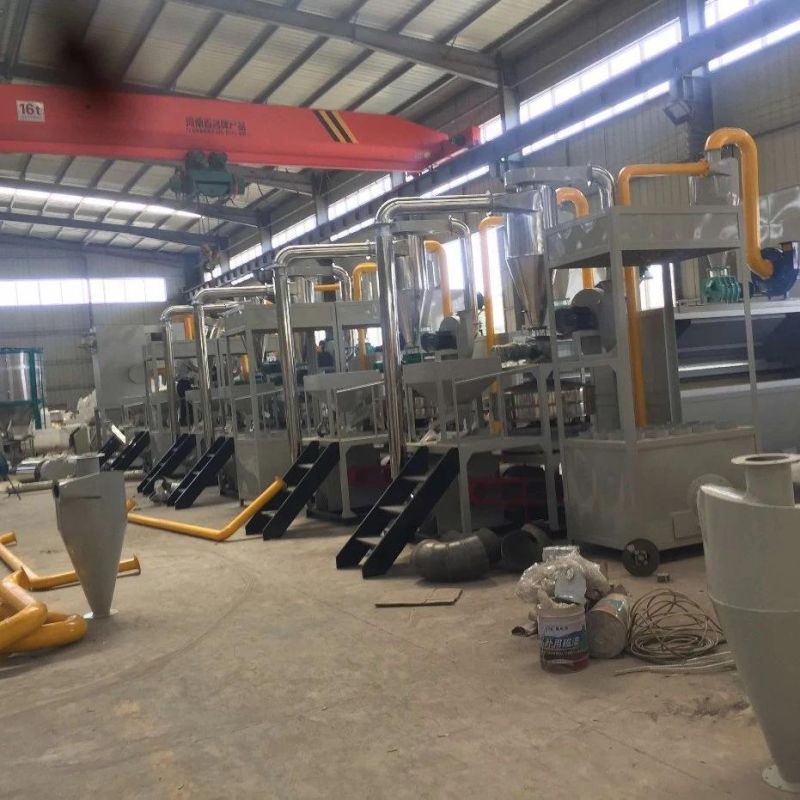

                  PE ABS SBS PP PVC LLDPE plastic pulverizer/milling                                                    machine/high speed powder miller

PE ABS SBS PP PVC LLDPE plastic pulverizer/milling machine/high speed powder miller is mainly used in the field of hard PVC recycling, such as defective goods and leftover bits and pieces of PVC pipes, section bars and plates, PVC packaging and leftover bits and pieces of aluminum plastic tablets, and milling of ABS, PS, PA, PC and other plastics.



Structural feature:

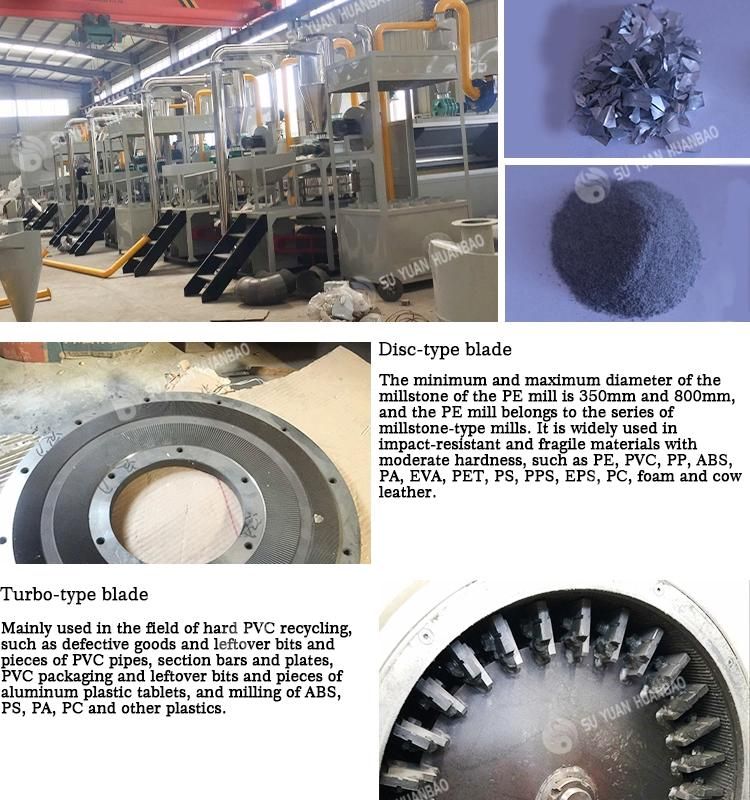

1. The new cutter structure, strong collision between materials and shear crushing of the stationary blade plate in terms of the high-speed centrifugal force of the rotating blade.
2. The use of air-cooled and water-cooled combination has effectively controlled the temperature for crushing materials and solved the problem of degeneration, melting and charring of heat-sensitive plastics after grinding and other problems.
3. The grinding chamber of the machine can be opened, so that the cutter can be easily repaired and replaced.
4. It is equipped with the vibration screening equipment, so that materials whose powder particles cannot meet the requirements shall be returned to the mill for re-milling.
5. It is equipped with negative pressure feeding and dust removal devices, while improving the discharge speed of materials, avoid the occurrence of worn fan impellers due to the previous positive pressure discharge in the past, and dust in the process of milling has also been effectively recovered.
6. The electrical control part uses the domestic well-known brand, and the host part uses the star-delta starting mode, reducing the start-up current and increasing the service life of the motor.




Technical Parameter

Model	Diameter of cutterhead	Quantity of rotating blade	Quantity of stationary blade	Power (kw)	Output (kg/h)	External dimension (mm)	Weight (kg)
SY-500	Ф483±1	24	12	44/59	120-300	3000*2800*3900	1680
SY-600	Ф583±1	28	14	54/72	180-480	3200*3000*4200	2280
SY-800	Ф783±1	36	16	88/118	350-880	3500*3200*4500	2880

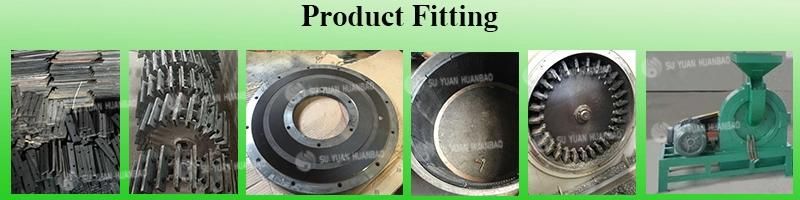

Kinds of Millers




Company Information

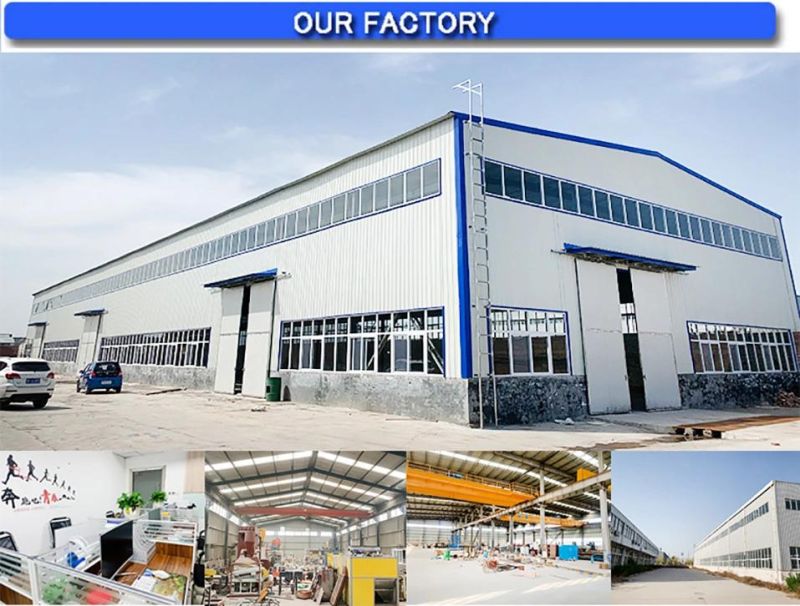

Xinxiang Traceability Environmental Protection Equipment Co. Ltd. was established in the end of 2002.For more than ten years, we have been committed to the research and manufacture of various waste resources separation and sorting recycling equipments.

The company has always adhered to the principle of " Service First, Customer First". We will serve the new and old customers with high quality products and service. We will contribute to create a healthy and environmental world together !


Packaging & Shipping

Customer visiting

Certificates



Our Services

Pre- sales service:

1. Inquiry and consulting support.

2. View our factory.

3.Provide you the proper plan, process flow design and manufacturer equipment according to your special demand.

After - Sales service:

1. Engineers avaliable to install equipments and train your workers overseas.

2. After one year guarantee, seller provide payable spare parts and technician's visiting maintenance service.

FAQ

Q1: What is the Warranty for the machines?
A1: 1 year for free.

Q2: What is the Material?
A2: Stainless steel and Alloy steel.

Q3: Can you overseas service?
A3: Yes, we provide you overseas installation, training your workers ect.

Q4: Are you manufacturer or trading company?
A4: We are professional manufacturer in China for more than 15 years.

Q5: Where are you located? Can I visit your factory?
A5: We are in Xinxiang City, Henan province, China. All our clients,from home or abroad, are warmly welcome to visit us!

In order to have a better understanding of your needs,we need you to provide below information about your product:

1)Which kind of material you are going to deal with? .

2)What are the physical characteristics of the material? Such as size,shape,thickness,solid or hollow and etc.

3)What's the producing capacity in your requests?

Please advise so we can figure out if our machines are applicable and which models will meeting with your requirement.
