• Model NO.：sjz
• Customized：Customized
• Condition：New
• Transport Package：Wood Pallet and PE Film
• Specification：WPC,PVC
• Trademark：BEIER MACHINERY
• Origin：China
• Production Capacity：100-800kg,H

Basic Info.

Model NO. sjz Customized Customized Condition New Transport Package Wood Pallet and PE Film Specification WPC/PVC Trademark BEIER MACHINERY Origin China Production Capacity 100-800kg/H

Product Description

PVC pipe application:
Conveyance of water, under pressure
Sewerage piping systems
Drainage piping systems
Electrical, telecommunications engineering pipeline

Application:

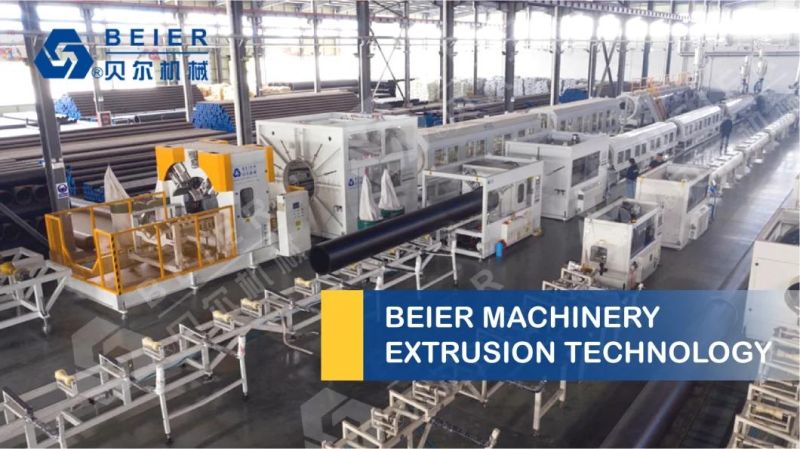

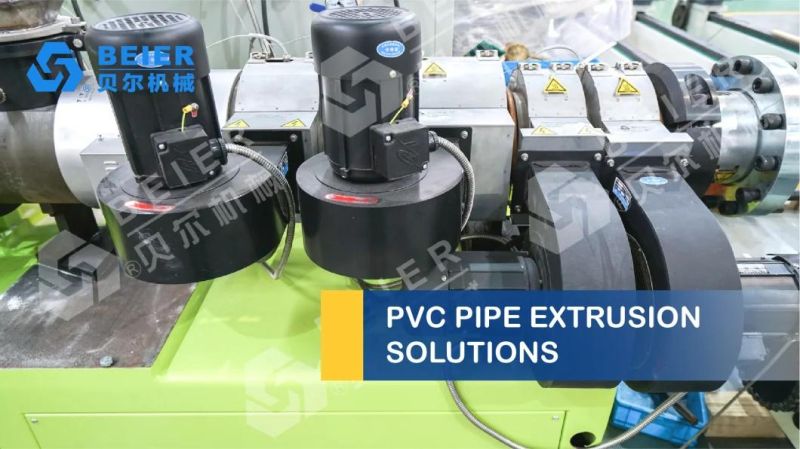

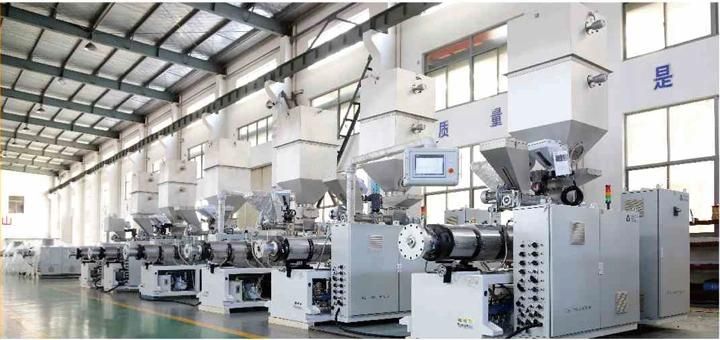

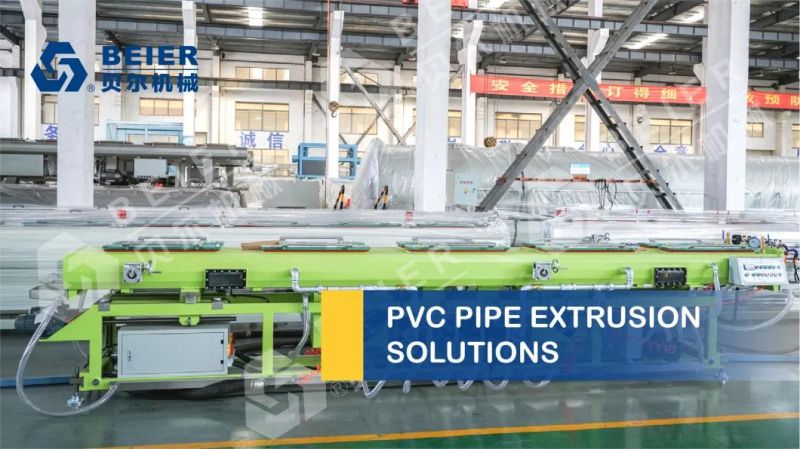

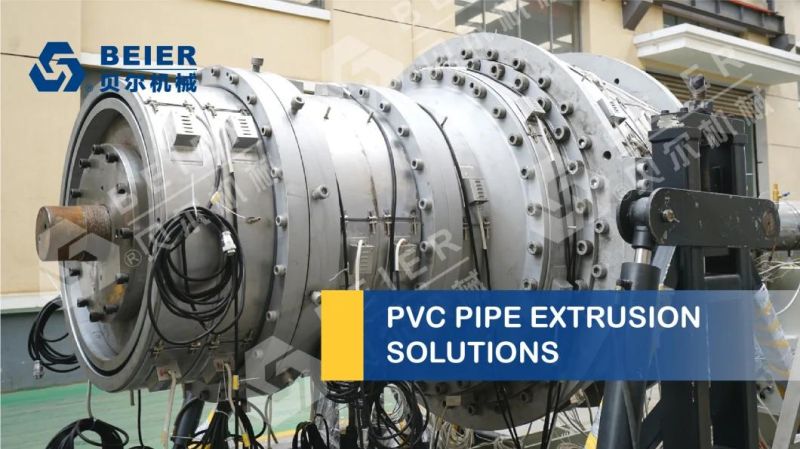

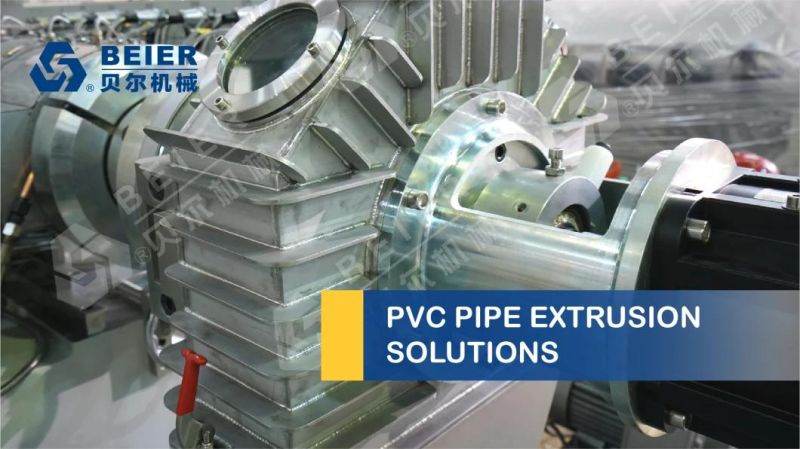

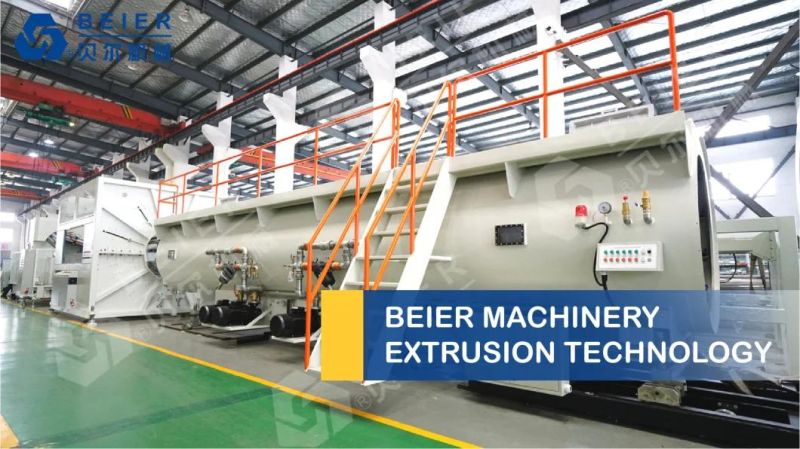

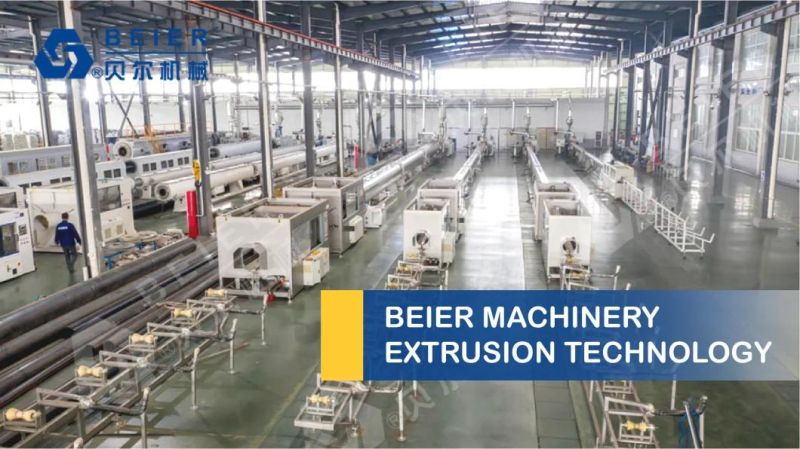

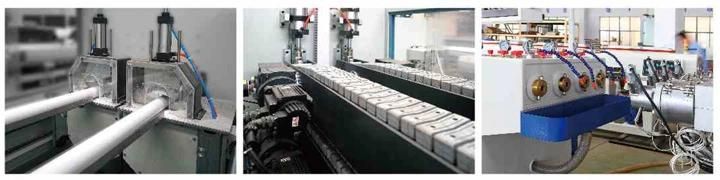

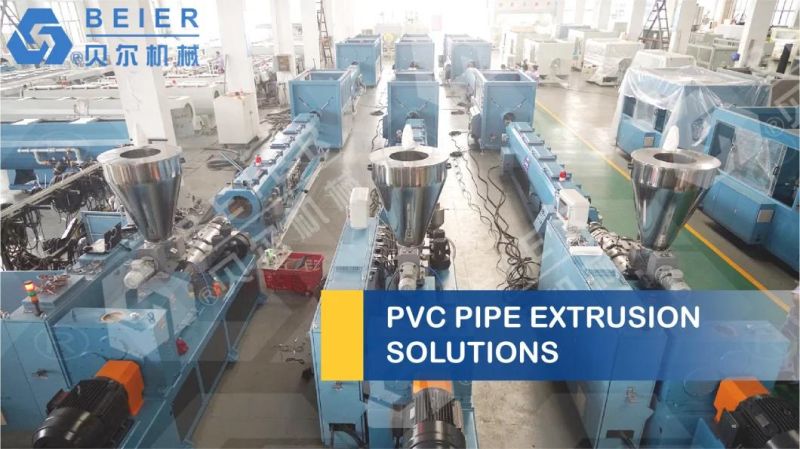

Φ20-800 series PVC pipe extrusion line is mainly used in manufacturing the pipe for agricultural and constructional plumbing, cable laying etc. This line is composed by conical twin-screw extruder, mould, vacuum calibration tank, haul-off, cutter and staker etc. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand. The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc. you may choose saw cutting type or planetary cutting type. It is additionally attached with the length counter and intensifying device. The equipment is with the reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, eg. Spiral silencing pipe and core foaming pipe according to your requirements.

Main Technical Parameter

Diameter(mm)	16-40Dual	20-63Dual	20-63	50-160	63-200	160-315	315-630
Conical extruder	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power(KW)	18.5AC	37AC	18.5AC	37AC	37AC	55AC	110DC
Max. Lineal speed	12	15	15	8	3.5	3	1.2
Max. capacity(K/G)	120	250	120	250	250	350	800
