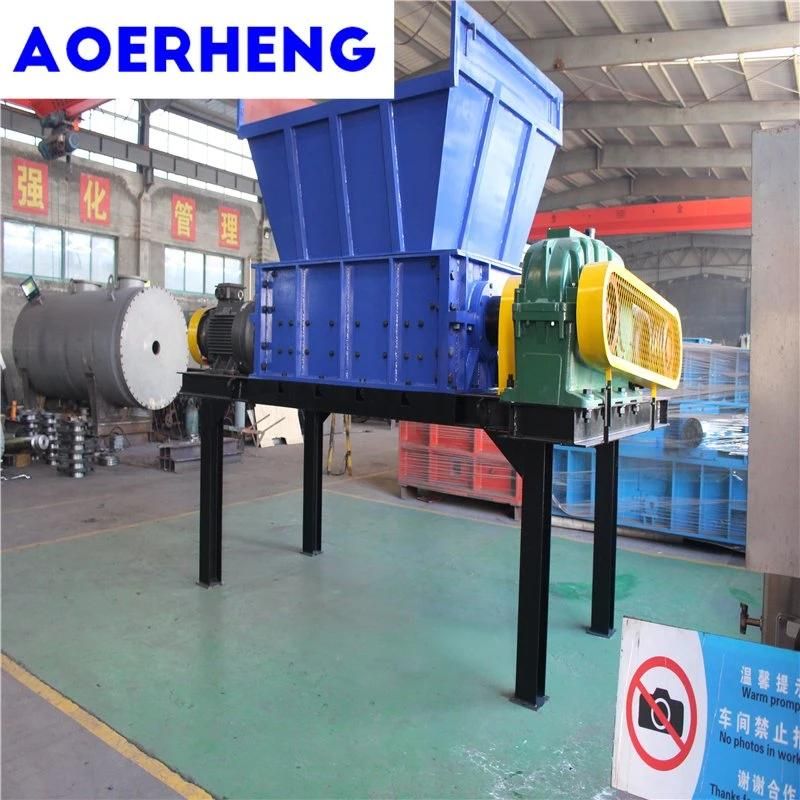

Double-Shaft Shredder/Shredding Machine for Waste Car

Qingzhou Aoerheng International Trade Co., Ltd.
  • After-sales Service：Whole Life
  • Warranty：Two Years
  • Type：Cutting Shredder
  • Raw Material：Kitchen Waste Domestic Garbage
  • Structure：Top Feed
  • Knife Classification：Piece Knife Crusher

Base Info

  • Knife Roll：Solid Knife Roller
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008, QS, UL, GMP
  • Tear Cavity Size：1000*620*330(mm)
  • Blade Diameter：Φ300
  • Cutter Shaft：Special Steel
  • Fixed Knife Material：Alloy Steel
  • Yield：0.3-4.5(T,H)
  • Transport Package：Wooded Box and Bulk
  • Specification：5t,day
  • Trademark：Aoerheng
  • Origin：China
  • HS Code：84778000
  • Production Capacity：5000 Sets , Year

Description

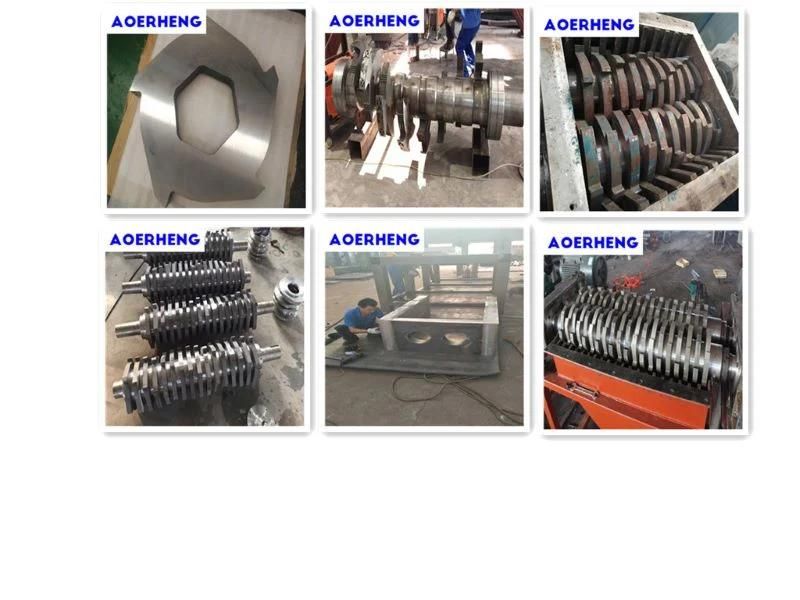

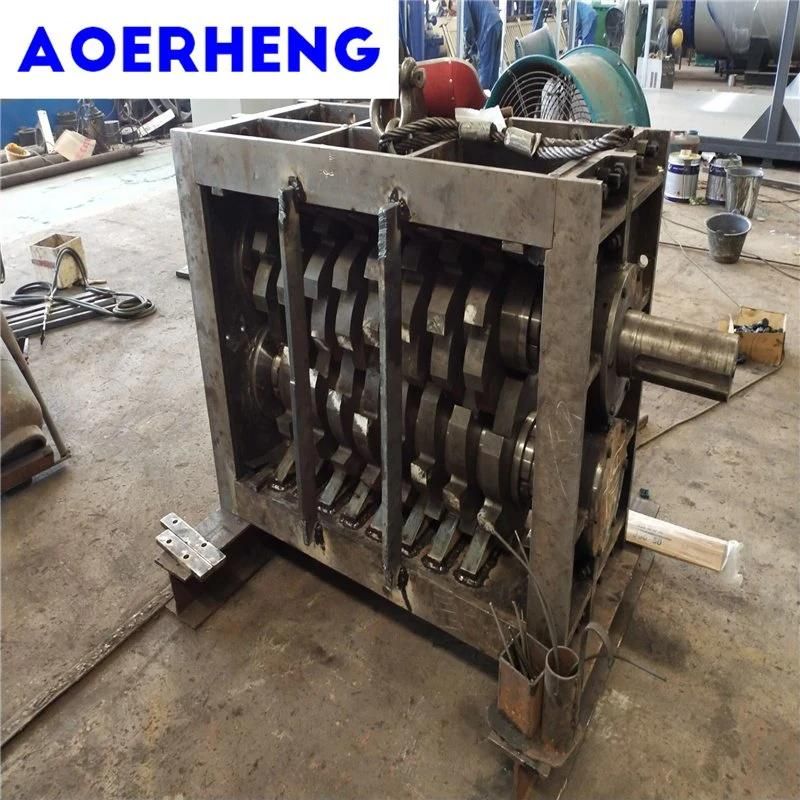

a. Shredder body: the main body of the equipment is welded with high-quality steel plate for stress relief treatment / overall machining to ensure the stability of the equipment under heavy load for a long time;

Double-Shaft Shredder/Shredding Machine for Waste Carb. Bearing and seal: the split and easy to disassemble type adopted by the bearing seat can quickly remove the moving knife, fixed knife, bearing and other components, which is easy to maintain and replace the cutting tool. The unique sealing structure can effectively block the connection between broken objects and grease, and protect the bearings and gears when handling liquid materials;

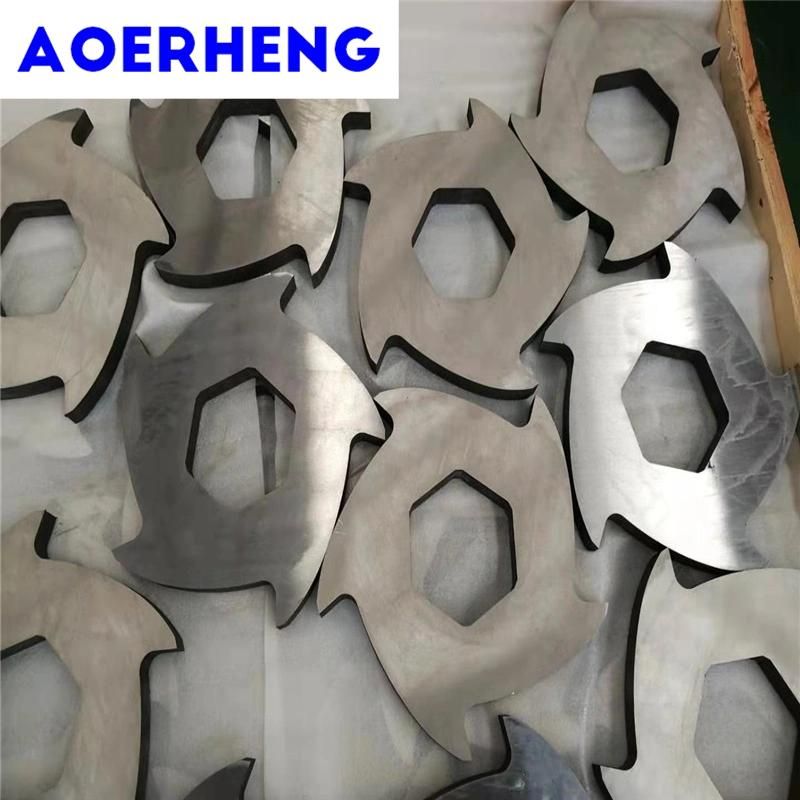

 Double-Shaft Shredder/Shredding Machine for Waste Carc.Moving tool and fixed tool: the moving tool is made of special alloy tool steel forging blank, precision machining, multiple heat treatment and low-temperature freezing and heat treatment technology. The overall toughness and hardness are consistent, and can be repaired and used repeatedly to ensure cutting performance and service life. The fixed tool adopts hook installation to optimize the tool replacement function. Double-Shaft Shredder/Shredding Machine for Waste Card. Cutter shaft: it is made of high-strength and heavy-duty special steel, which can be more reasonably cooperate with the cutter to provide powerful cutting power.Double-Shaft Shredder/Shredding Machine for Waste Car
2.Product Characteristics:

a. Low speed, high torque, low noise;

b. Large processing capacity, controllable discharge size, uniform discharge and high efficiency;

c. The overall modular design is convenient for maintenance and replacement of parts;

e. The crushing tool is made of alloy steel and has been heat treated, with long life and good wear resistance;

f. The front and rear bearing seats are processed in one piece to ensure the coaxiality of the bearing holes at both ends;

g. Up and down opening and closing design, convenient for disassembly and assembly of the whole spindle;

H. The four-fold seal in the bearing housing is waterproof and dustproof;

i. Wear-resistant baffles are installed beside the bearing seat to prevent materials from directly contacting the bearing seat;

3.Technical Specification:
 Serial number      modelTear cavity size
long×wide×high
     (mm)    Blade diameter
             (mm)blade   thickness
         (mm)spindle   speed
        (rpm)motor   power
        (kw)Tearing particle size
              (mm)     yield
       (t/h)        1     2S0206   600×410×230              Φ200          15-3012-2511*23-300.3-0.6        2     2S0208   800×410×220                 Φ200          15-3012-2515*23-300.5-1.0        3     2S0308   800×620×330              Φ300          15-3510-2218.5*23-300.8-1.6        4     2S0310  1000×620×330              Φ300          20-4010-2222*23-301.2-2.0        5     2S0312  1200×620×330              Φ300          20-409-1630*23-301.8-2.8        6     2S0410  1000×830×440              Φ400          20-409-1637*23-302.0-3.6        7     2S0412  1200×830×440              Φ400          20-459-1545*23-303.0-4.5
4.Company  Certification:
Double-Shaft Shredder/Shredding Machine for Waste Car
5.Transportation:

Double-Shaft Shredder/Shredding Machine for Waste Car
6.Our Customer :

Double-Shaft Shredder/Shredding Machine for Waste Car

FAQ

You May Have Following Questions:

Q1:Are You Trading Company or Factory?

    We are factory for shredder more than 20 years .

Q2:What About The Machine Installation?

     For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful

     installed machinery picture or video;For the productioin line,we could send our engineers to guide the installation if necessary .

Q3:How About The Spare Parts?

     We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing

     parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts

     in stock.

Q4:What Will We Do If We Have Problems with  The Machine After We Buy the Machine?

    We have people who is  special for after-sale service,if  foreign customers have problems when machine  is working,just feel

     free to send us the picture or video to show us,we will give you solutions within 24 hours.
