2cavity Automatic Blow/Blowing Molding Machine for Big Mouth Can
Taizhou Doria Plastic Equipments Co., Ltd.- Warranty：1year
- Type：Stretch Blow Molding Machine
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Automatic
- Computerized：Non-Computerized
Base Info
- Model NO.：D-R600-1
- Certification：CE
- Blowing：Machine
- Pet：Water Bottle
- Automatic：2cavity
- Application：Household
- Transport Package：Wooden Case
- Specification：CE
- Trademark：D-R
- Origin：Huangyan Taizhou, Zhejiang China
- HS Code：8477300000
- Production Capacity：2.5L, 1500PCS,Hour, 0.5L, 2000PCS,Hour.
Description
https://chinadoria.en.made-in-china.com/product-list-1.html
1, specification of machine -D-R600:
1.1, maximum capacity of products: 500g ;
1.2,quantity of moulds:1set;
1.3,production capacity:400PC/H-2500PC/H;
1.4,dimension of machine:L3200*W1850*H1850;
1.5, weight:5.5T ;
1.6,clamping force:50KN;
1.7, maximum dimension of mould plate:W390*H300mm;
1.8,dimension of mould plate:500*300mm;
1.9,thickness of mould:150-300mm;
1.10, power of oil pump:15KW;
1.11,power of electrical heating:10KW;
1.12,working pressure:0.6MPa;
1.13, diameter of screw:Φ75mm;
1.14,screw L/D ratio:23:1;
1.15,plasticizing capacity:60-70KG/H;
2.0 AUXILIARY EQUIPMENT:
2.1,Air dryer(Model:OMK-1HNF);
2.1.1,dimension:900*600*1100mm;
2.1.2, air flow:1.6N /min;
2.1.3,working pressure:3.0MPa;
2.1.4,inlet temperature:80ºC;
2.1.5dew point temperature:2-10ºC;
2.1.6,compressor power:0.6KW;
2.1.7,refrigerant:R22;
2.1.8 Dia of connecting pipe: ZG3/4;
NOTE:when the device is in max use,the temp of inlet cooling water temp is 8-12ºC,outlet cooling water temp is 18ºC more or less;
2.2, High pressure air compressor(VH-1.2/3.0).
2.2.1,packing size:1600*850*1000mm;
Size:1550*800*900mm;
2.2.2,Motor power:15KW;
2.2.3,weight:320KG;
2.2.4,air flow:1.2M3/min;
2.2.5,Max air pressure:3.0MPa;
2.3, Low pressure air compressor(V-1.0/10)
2.3..1,packing size:1500*730*1200mm;
size:1465*680*1130mm;
2.3.2,Motor power:7.5KW;
2.3.3,weight:357KG;
2.3.4,Air flow:1.0M3/min;
2.3.5,Max air pressure:1.0MPa;
2.4, T/C grade air filter
2.4.1,rated air flow: 2Nm3/min;
2.4.2,Max working pressure: 3.0MPa;
2.4.3, inlet air temp≤50ºC;
2.4.4, filter precision of T filter≤3μm;
Filter precision of C filter≤1μm;
2.2.5,weight: 2.3KG;
2.5, 5HP water-cooled water chiller:
2.5.1,dimension:910*520*900mm;
2.5.2,compressor capacity:3.15KW;
2.5.3,weight:130KG;
2.5.4,refrigerating capacity:12.4KW;
2.5.5,Pump capacity:0.5HP;
2.5.6,Cold water flow:2.6M3/H;
2.5.7,Voltage: 380V-415V/3P /50HZ;
2.5.8,refrigerator medium: R22

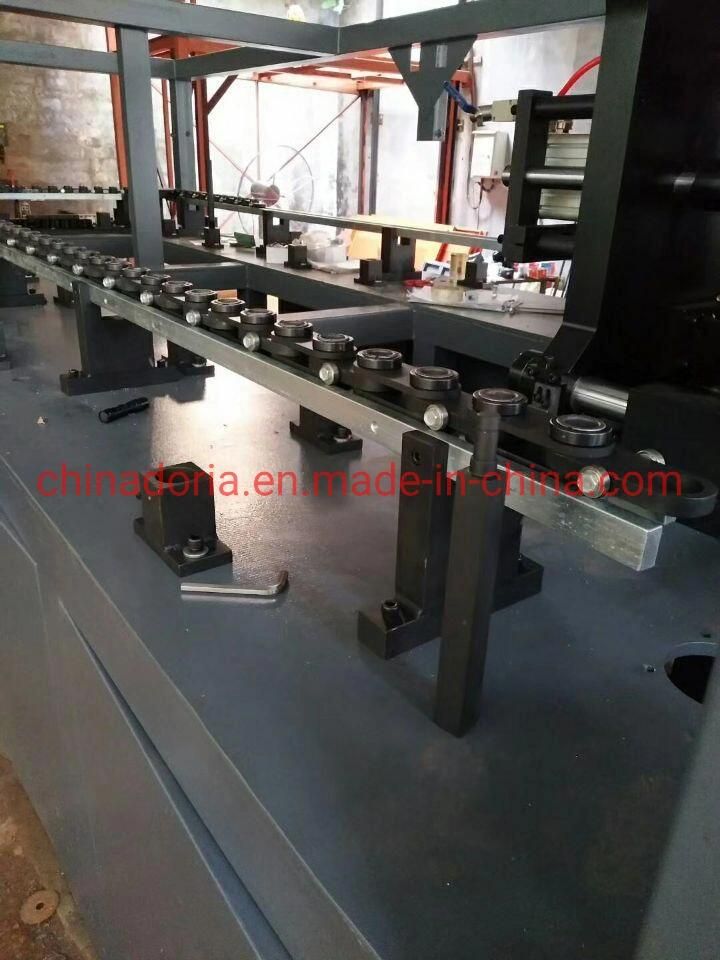

3. Pictures of D-R600
4. Frequently Asked Questions:
Q: The preform of jar is by auto-loader or by hand?
A: By hand.
Q: What's your main market?
A: We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Q: Packaging & Shipping:
A:Packing: wooden pallet, wooden case or as per customers' specific
requirements.
Q: How can I get a sample to check your quality?
A: After we test machine, you can pay for the sample charges by T/T payment or PayPal, sample charges including the sample cost and Freight.
5. About us:
PET Preform manufacturer
55mm 750g PET preform
55mm 730g PET preform
55mm 700g PET preform
55mm 680g PET preform
55mm 660g PET preform
55mm 580g PET preform
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us; we hope we will have good chance to cooperate!
6.Location: No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
