Plastic Machinery

Fully Automatically Rolling Bag Making Machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service:Technical Support Online
  • Warranty:One Year
  • Type:Multi-Roll
  • Material Processed:PE
  • Roller:Two
  • Roller Structure:Cavity Type

Base Info

  • Model NO.:DZB-500, 700, 900
  • Roller Orientation:F-Type
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008
  • Customized:Customized
  • Condition:New
  • Bag Type:Bag-on-Roll
  • Flat Bag:Garbage Bag
  • Rolls Change:Automatically
  • Transport Package:Stretch Film or Wooden Case
  • Specification:CE, ISO9001 certificate
  • Trademark:HOIN
  • Origin:Ruian, Zhejiang, China
  • HS Code:84778000
  • Production Capacity:50 Set,Month

Description

Basic Info.

Model NO. DZB-500, 700, 900 Roller Orientation F-Type Automation Automatic Computerized Computerized Certification CE, ISO9001:2008 Customized Customized Condition New Bag Type Bag-on-Roll Flat Bag Garbage Bag Rolls Change Automatically Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 84778000 Production Capacity 50 Set/Month

Product Description

Fully Automatically Rolling Bag Making MachineA: Description
This machine, a specially-designed point-cut rolling dual-purpose one for vest & flat bags, is controlled by a computer. The step(servo) setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurate. The computer numerical control can bee selected to adjust the length of bag. The machine will automatically stop and sound a warning if there is something wrong with the printing bags.
Usage

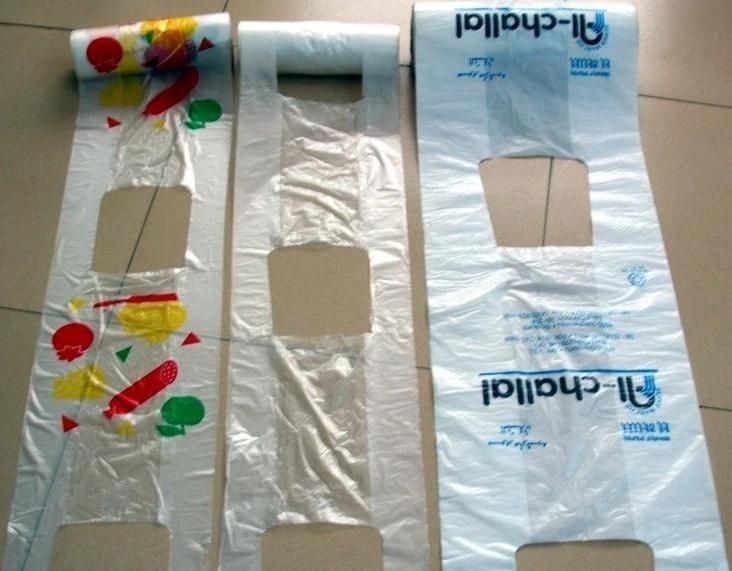

The high and low density polyethylene film bags produced by the machine are applied to shopping in the supermarkets, shops and markets.
B: Technology Parameter
Model    DZB-500DZB-700DZB-800
Max Bag-making Width   400mm600mm700mm
Max Bag-making Length  1200mm1200mm1200mm
Bag-making Thickness   0.008 -0.05mm0.008 -0.05mm0.008 -0.05mm
Bag-making Speed   40-120pcs/min40-120pcs/min40-120pcs/min
Motor Power   1.1kw1.5kw1.5kw
Electric Heating Power1.2kw2kw2.2kw
Total Power4.2kw5kw6.2kw
Machinery Dimensions(L×W×H)3300x1100x 1500mm3300x1300x 1500mm3300x1400x 1500mm
Machinery Weight   800kg900kg1000kg
Packing Dimensions(L×W×H)3400x1200x 1700mm3400x1500x 1700mm3400x1700x 1700mm
Packing Weight     1000kg1180kg1220kg

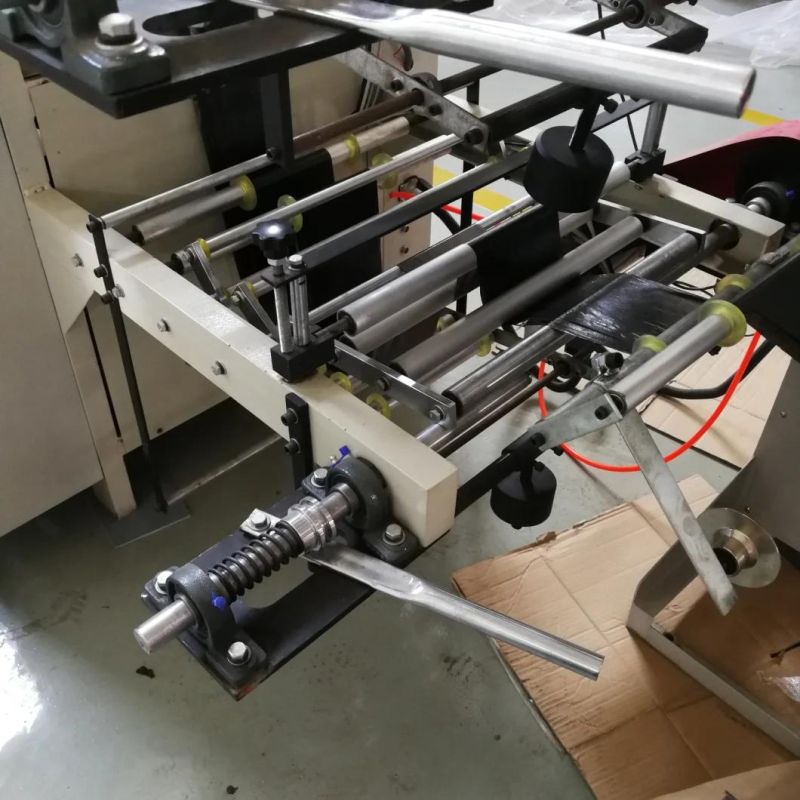

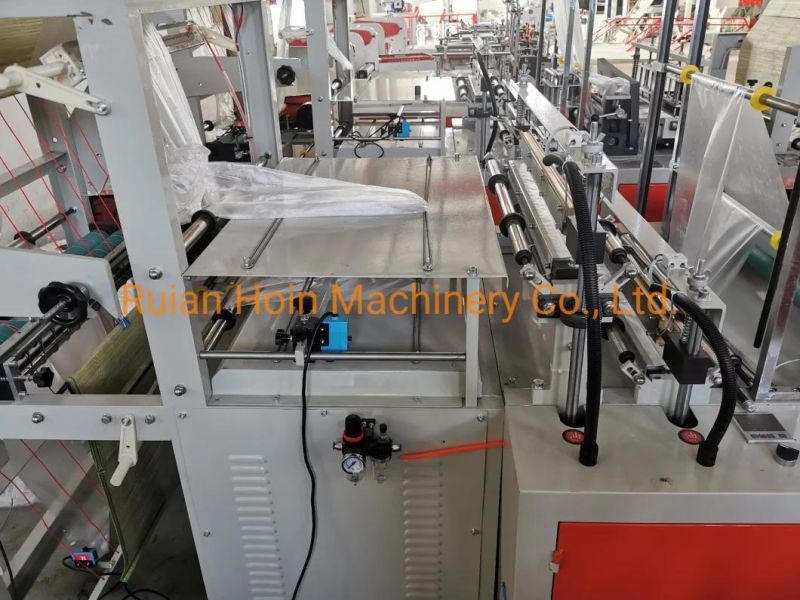

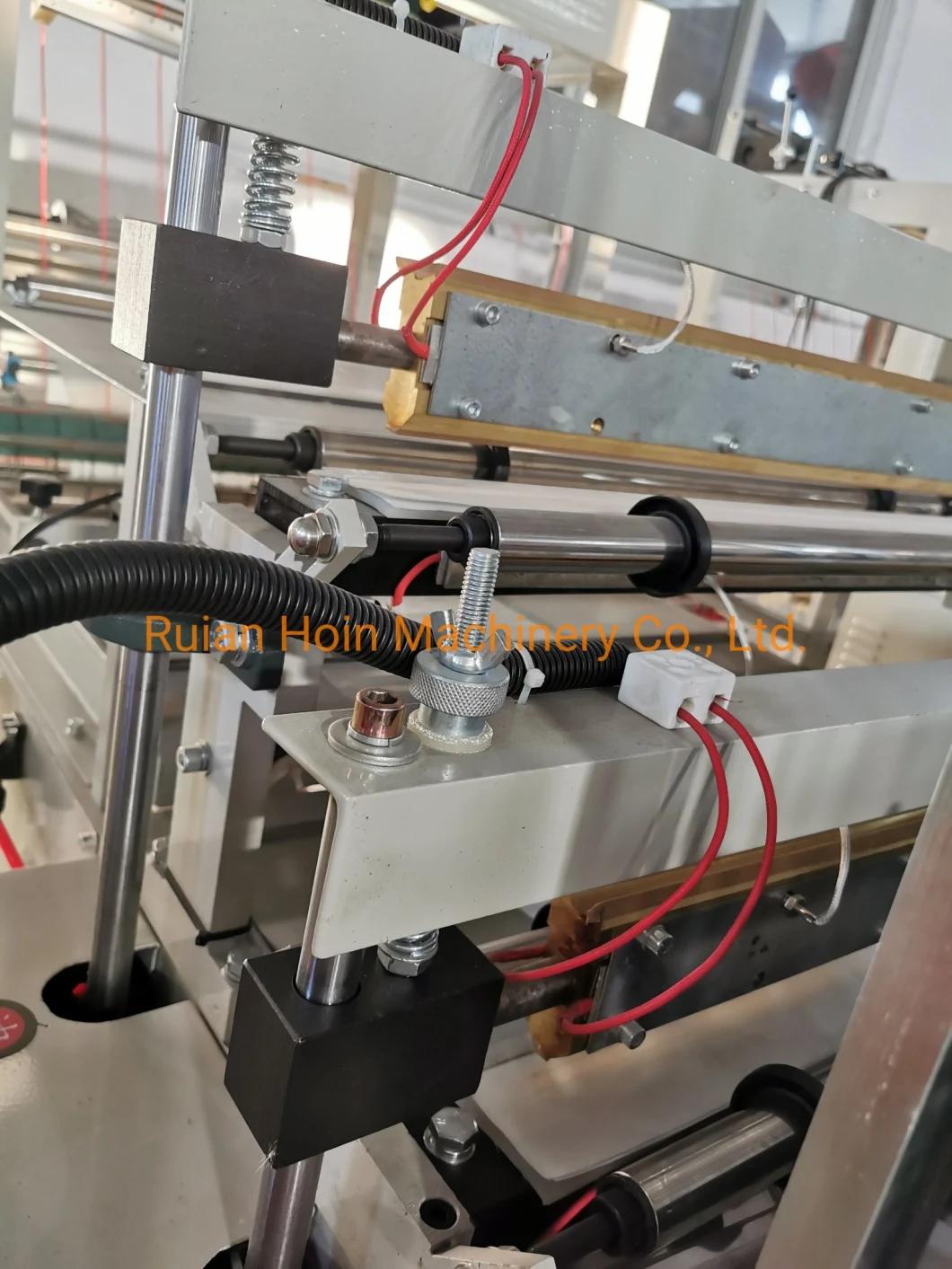

Machine Pictures for Reference:Fully Automatically Rolling Bag Making MachineFully Automatically Rolling Bag Making MachineFully Automatically Rolling Bag Making Machine

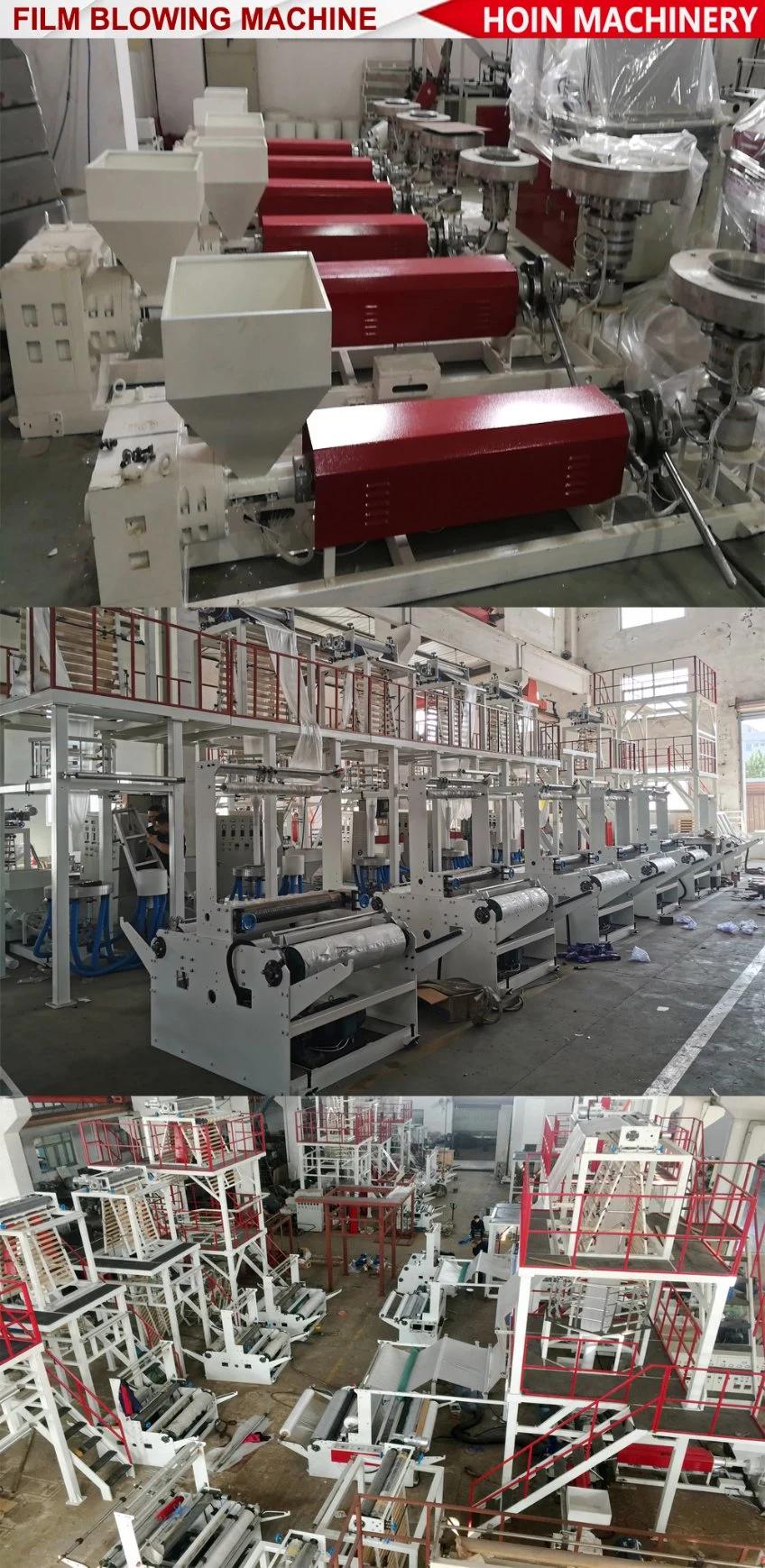

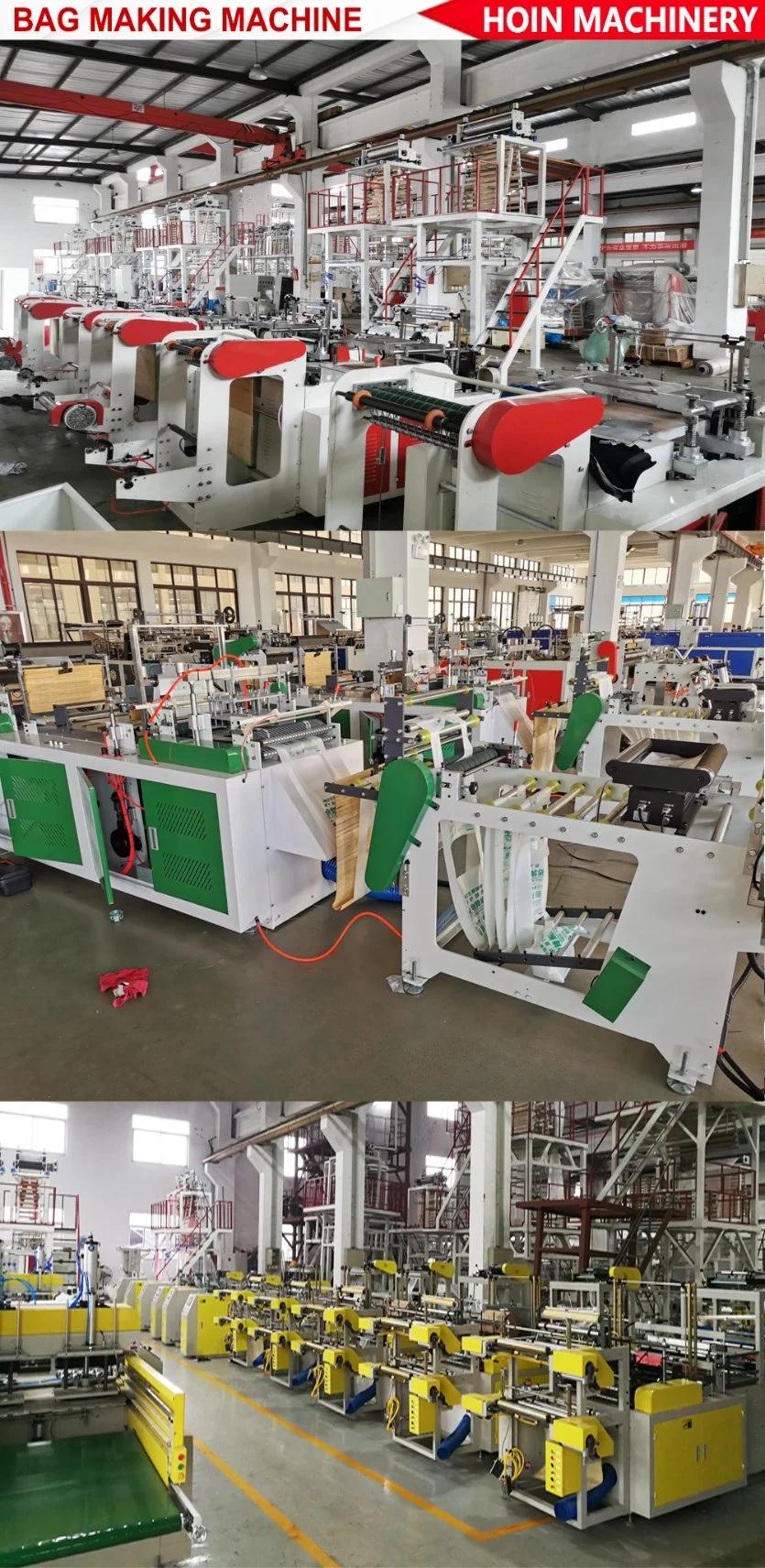

Workshop of HOIN
High Speed PE Film Blowing Machine for HDPE LDPE LLDPEHigh Speed PE Film Blowing Machine for HDPE LDPE LLDPEHigh Speed PE Film Blowing Machine for HDPE LDPE LLDPE
More Products Optional
High Speed PE Film Blowing Machine for HDPE LDPE LLDPEAfter Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.

Any query pls feel free to contact with us!
