• Model NO.：B. JG-II
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Usage：Cosmetics, Medical, Skin Care, Packaging of Goods
• Packaging Material：Plastic
• Packaging：Tube
• Driven Type：Electric
• Packaging Technology：Moisture Proof Packaging
• Soft and Hardness：Flexible Package
• Mode of Operation：Packaging of Export Products
• Extrusion Linear Speed：8m,Min
• Cutting Speed：100PCS,Min
• Weight：5200kg
• Transport Package：Wooden Case
• Specification：6500*4000*2100mm
• Trademark：Sunway
• Origin：Jiangsu, China
• Production Capacity：30 PCS,Month

Basic Info.

Model NO. B. JG-II Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Usage Cosmetics, Medical, Skin Care, Packaging of Goods Packaging Material Plastic Packaging Tube Driven Type Electric Packaging Technology Moisture Proof Packaging Soft and Hardness Flexible Package Mode of Operation Packaging of Export Products Extrusion Linear Speed 8m/Min Cutting Speed 100PCS/Min Weight 5200kg Transport Package Wooden Case Specification 6500*4000*2100mm Trademark Sunway Origin Jiangsu, China Production Capacity 30 PCS/Month

Product Description

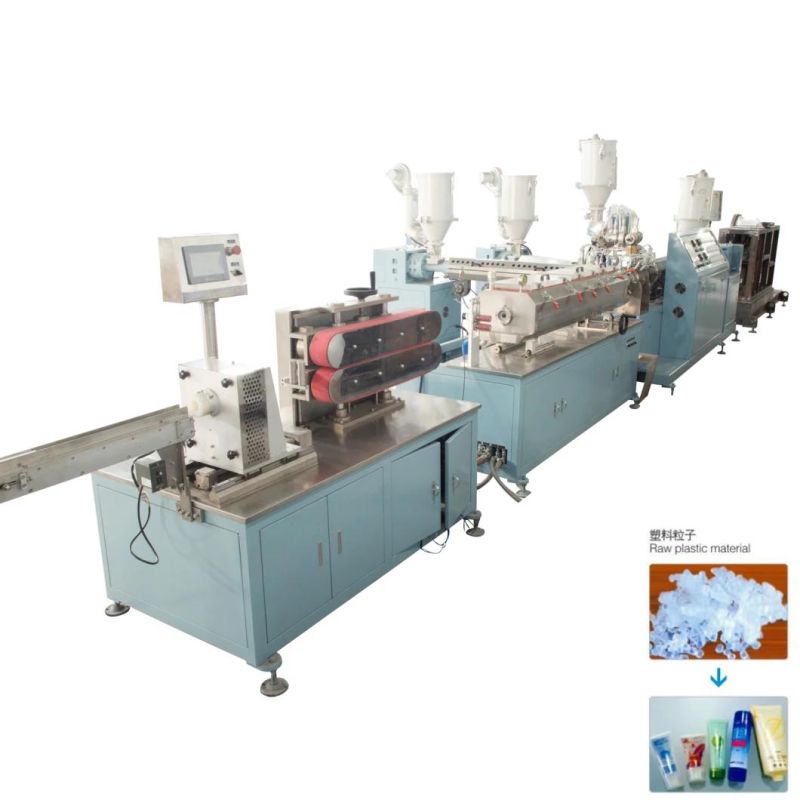

Cosmetic Plastic Extruded Tube Machines
Features

1) Five layer co-extrude, thus saving material
2) Temperatures controlled individually according to different materials.
3) With convenient operation, the best material fluidity and dissolubility can be achieved
4) Simple maintenance, low energy consumption,high efficiency, easy operation
5) Named-brand parts and best body-building metal materials

Plastic material has its own characters .In co-extrusion system, we use and combine several kinds of materials.

Therefore, the characters of single layer tube can't compete with the complex characters of co-extrusion tube.
1.Glossy surface ( using :EVOH/RESIN/PE)
2.Extensive colour combination ( using :PE+PEARL/PE+PLGMENT)
3.Excellent barrier property (using : PE/TIE RESIN/EVOH/TIE RESIN/PE)
4.Scratch and dust free (using :LDPE/LDPE/LLDPE)
Co-extrusion is used on pesticide container, toothpaste, side window, multicolour, long preservative cosmetic...etc.

Main Technical Parameters

Screw diameter(inner layer)	φ50mm,L/D:30/1	Extrusion linear speed	8m/min
Screw diameter(outer layer)	φ40mm,L/D:28/1	Cutting speed	100pcs/min
Screw type	Full flight	Applicable diameter	19-60mm
Water consumption	60L/min	Mechanical dimensions	6500*4000*2100mm
95.5kw	95.5kw	Machine weight	about 5200kg

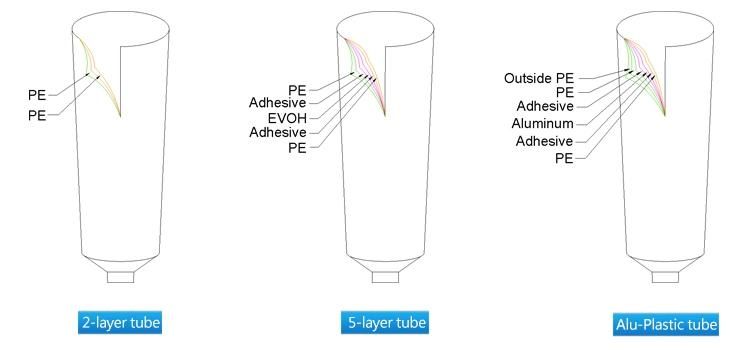

The Different Tubes
For PE tubes, two-layer tubes and five-layer tubes are the most common types on the market. Usually two-layers is Ok, but if there's material that is especially sensitive to oxygen or the aroma that is easy to release from the tubes, it's better to use five-layer tubes because of good isolation feature of the EVOH barrier.




Our Service

Pre-sales services                                                              After-sales services

* Inquiry and consulting support.                                                        *Provide layout drawing

*Video conference to see our products                                              * Training how to install and use the machine
* View our Factory.                                                                             * Engineers available to serve aboard
                                                                                                           *Offer one-stop servic

FAQ
Q1:Are you manufacturer? Can we visit your factory?
Answer: Yes, we are a manufacture, and we have an international trading center in Shanghai. And of course welcome to our factory.
Q2: How about your prices?
Answer: Our prices are competitive in our field and also negotiable according to your order quantity.
Q3: How's your products?
Answer: Parts of named-brand, best materials of machine body are used to assure you of the best quality.
Q4: What's your advantage?
Answer: Compared with our competitors,  we can offer you one-step service.The whole production line including machines, raw material, even toothpaste, cosmetic formulas for free are available.
And more? Please feel free to contact us.
