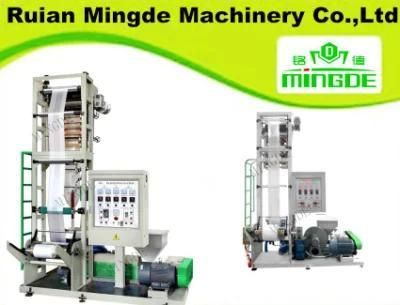

Mini Type Film Blowing Machine (MD-HM45)
Ruian Mingde Machinery Co., Ltd.- Type：PE Film Blowing Machine
- Raw Material：HDPE
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Color：Green
Base Info
- Model NO.：MD-HM45
- Transport Package：Nude Packing,Wooden Case
- Specification：CE, ISO9001
- Trademark：Mingde
- Origin：China
- HS Code：8477209000
- Production Capacity：100sets,Year
Description
| Model | MD-HM45 |
| Workable Materials | HDPE,LDPE/LLDPE |
| Max.Film Width | 500MM |
| Max.Extrusion Output |
HDPE:35kg/hr LDPE:40kg/hr |
| Blown Film Thickness |
HDPE:0.008-0.0.08mm LDPE:0.02-0.10mm |
| Extrusion Unit | |
| Hard-face Gear Case | 146 |
| Screw Diameter | Φ45mm from Zhoushan China |
| Screw Material |
38 CRMOALA 38 CRMOALA |
| Barrel's Material | |
| Screw L/D | 28:1 |
| Main Motor Power | 11kw |
| Frequency inverter | From Delta |
| Cylinder Cooling | 250wx2 |
| Thermo Control (zone) | 3 |
| Extrusion Die | |
| Die Size | HD:60mm |
| Screen Changer | Standard Manual |
| Thermo Control (Zone) | 2 |
| Air Ring(mm) | Φ620 |
| Cooling Blower(kw) | 1.5 |
| Center Steady Stick | 1 pcs |
| Take-up Unit | |
| Traction Roller Width | φ138×550mm |
| Embossing Roller Width | 450mm |
| Take up Motor(kw) | 0.75 |
| Take Up Speed | 10-80m/min |
| Winding Unit | |
| Rewinding Type | Single Rewinder.Surface Friction Winder |
| Rewinding shaft | Air expanding shaft |
| Roller Width | 550mm |
| Winding Motor | 1.1KW |
| Rewinding Speed | 10-80m/min |
| Voltage | 380V,50HZ,3PHASE |
| Machine Dimension | 1450x2280x3200(mm) |
