• Model NO.：SJSZ80,156
• Customized：Customized
• Condition：New
• Power Supply：380V Three Phase
• Control System：PLC Control System
• Inverter：ABB
• Operator：2-3person ,Shift
• Warranty：12monthes
• Transport Package：Exporting Packing
• Specification：CE ISO9001
• Trademark：SUKE
• Origin：Qingdao China
• HS Code：847780000
• Production Capacity：200 PCS,Year

Basic Info.

Model NO. SJSZ80/156 Customized Customized Condition New Power Supply 380V Three Phase Control System PLC Control System Inverter ABB Operator 2-3person /Shift Warranty 12monthes Transport Package Exporting Packing Specification CE ISO9001 Trademark SUKE Origin Qingdao China HS Code 847780000 Production Capacity 200 PCS/Year

Product Description

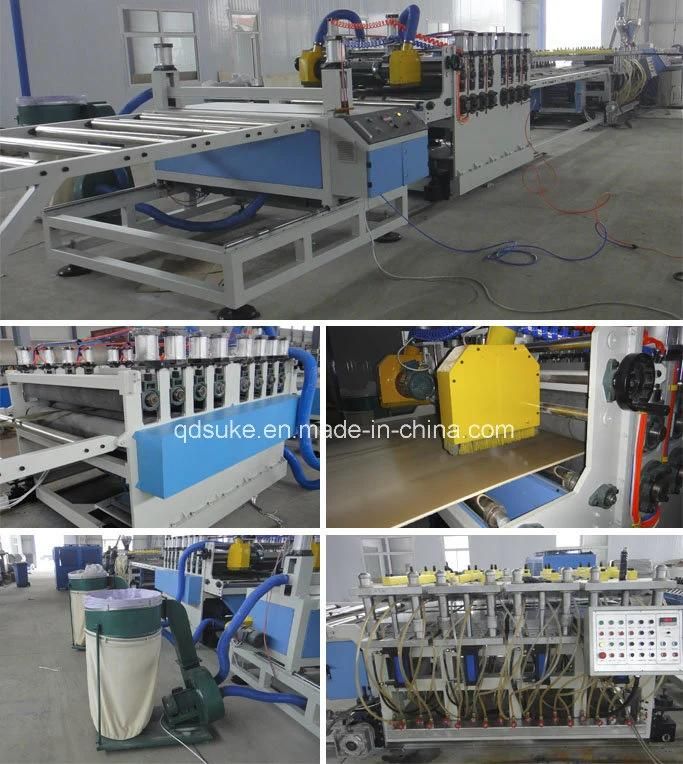

WPC Crust Foam Board Extruder Machine Line with Ce and ISO


Specifications
1, Building WPC Board Machine
2, Thickness: 3-30mm
3, Width: 1220mm
4, CE, ISO9001


Main Technique Parameter
1, Conical double screw extruder SJSZ-80/156

A) Output: 300-400kg/h
B) Transmission system:
High torque output vertical reducer gear box
Structure: Vertical
Provided with outside-circulation cooling system
Imported thrust bearing and high-torque output
Material of Gear: 20CrMnTi, with gear grinding technical treatment and cementite

2. Mold
A) Structure: Special design for PVC WPC board
B) Width of die: 1400mm
C)Thickness: 12-20mm
D) Material: 5CrNiMo, high quality alloy

3, Vacuum calibrating and forming table
Max. Calibrating width: 1450mm
Calibrating table length: 2000mm
Vacuum pump power: 5.5kw*2 units
Max. Exhausting volume: 80m3/min
Water pump power: 4kw

4, Cooling bracket
A) Total length of roller bracket 5000mm
B) Cooling Roller
Diameter: Ø 63mm
Length: 1320mm

5, Haul-off unit
Max. Pulling width: 1450mm
Max pulling thickness: 20mm
Pair roller qty: 7 pairs
Driven motor power: 5.5kw

6, Transverse cutting bracket

Rack type synchronize pressing unit
Special design flat cutting motor: 2.2kW
With non-pole cylinder left and right moving system



Auxiliary Machines

Components	Amount
1,SWP450 Crusher	1 set
2 500/1000 Mixer	1 set
3,SMP600 Chiller	1 set
4,Air Compressor	1 set

TRADE TERMS

1. Payment Term: 30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
2. Delivery Time: 40 days after receipt of prepayment.
3. Packing Method:  Packing film or wooden case
4. Guaranteed Time:  12 months

MACHINERUNNING TEST AND AFTER SERVICE

1. When machine finished, we will invited client come to our factory to check the machine and do the machine test. If machine is ok, then client pay for the balance. And inspect machine load the container.
2. When machine arrives client's factory, if client needs, we will send 1-2 engineer to client's factory do the machine installation and running test, and also train the local worker how to operate and maintain the machine. It is chargeable.
3. If have any question or problem on machine operation or maintain, welcome to contact to us by email or calling. We stand by 24 hours.
