Wasted LDPE HDPE PE PP Film Flakes Bag Crushing Drying Recycling Line
Jiangsu Acemien Machinery Co., Ltd.- Material Processed：Bottle,Film,Bag,Pipe etc
- Plastic Type：PE PP HDPE LDPE Pet BOPP etc
- Screw：Double-Screw
- Automation：Automation
- Computerized：Computerized
- Certification：CE
Base Info
- Output：300-2500 Kg,H
- Guarantee Period：12 Months
- Delivery Time：30-90 Workdays
- Transport Package：Wooden Case ,Plastic Film(or Customer′s)
- Specification：PE 300-2500
- Trademark：ACEMIEN
- Origin：China
- HS Code：84778000
- Production Capacity：350 Sets,Year
Description
Total10 sets All brands can accoring customer's requirements.
We can design a complete films washing line according to your request.

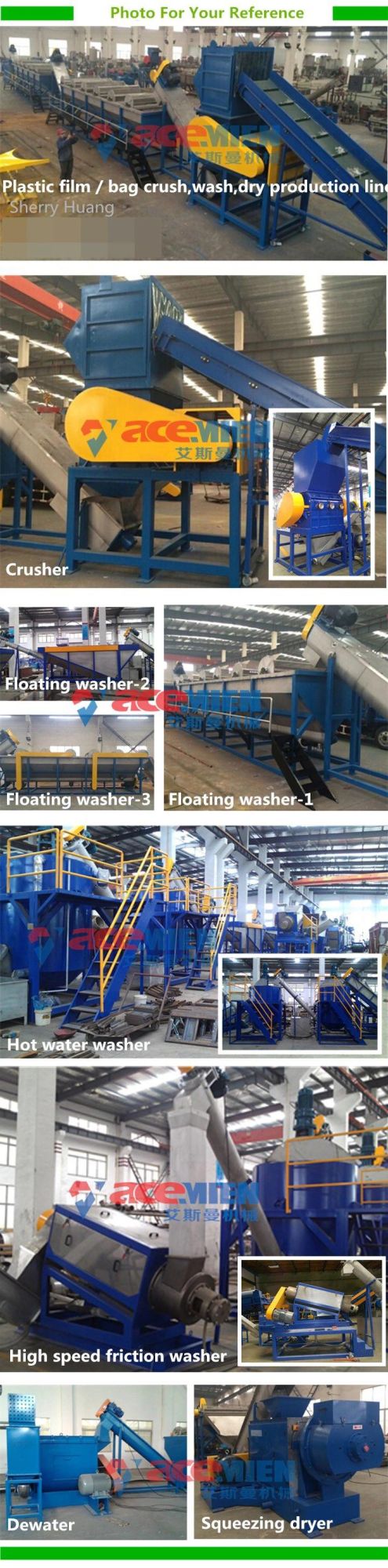

1. Belt conveyor: Convey material to next process.
2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)
3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.
4.Hot washer:Add cleaner to hot water,can clean the oil,sand,soil,glue etc.Two kinds heating types,steam or electrical heating,customer can choose one or both.Electric heating motor 60kw.
5. Float Washer: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)
6. Screw feeder: transport material and as well as for rub them for surface cleaning.
7. Dewater machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)
8. Pipe dry system: Using stainless steel "U" type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.
9.Silo: Storage for final products.
We can design a complete films washing line according to your request.
1. Belt conveyor: Convey material to next process.
2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)
3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.
4.Hot washer:Add cleaner to hot water,can clean the oil,sand,soil,glue etc.Two kinds heating types,steam or electrical heating,customer can choose one or both.Electric heating motor 60kw.
5. Float Washer: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)
6. Screw feeder: transport material and as well as for rub them for surface cleaning.
7. Dewater machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)
8. Pipe dry system: Using stainless steel "U" type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.
9.Silo: Storage for final products.
