Good Quality Medical Bed Board Making Extrusion Blow Molding Machine Price
Zhangjiagang Dawson Machine Co., Ltd.- Type：Extrusion Blow Molding Machine
- Raw Material：HDPE
- Making Method of Parison：Extrusion-Blow Molding
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：ABLD100

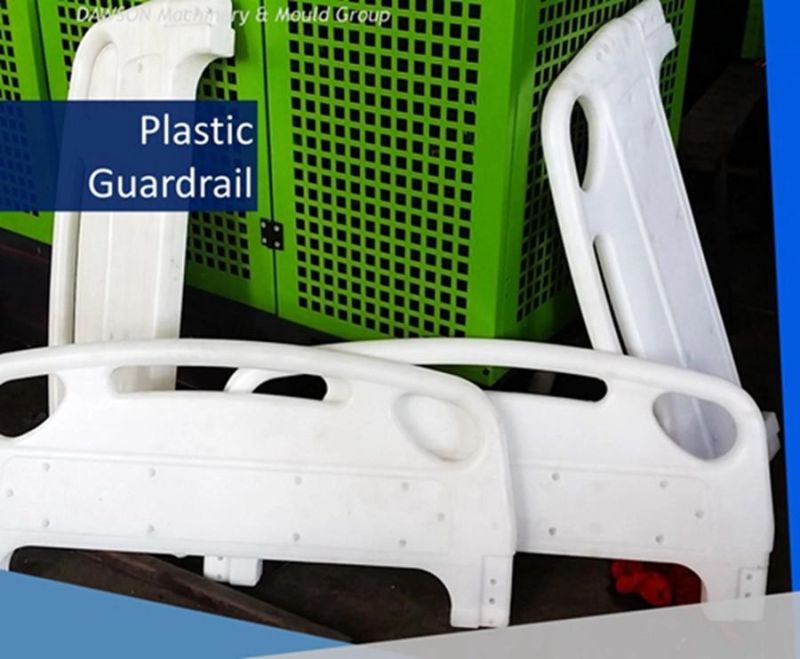

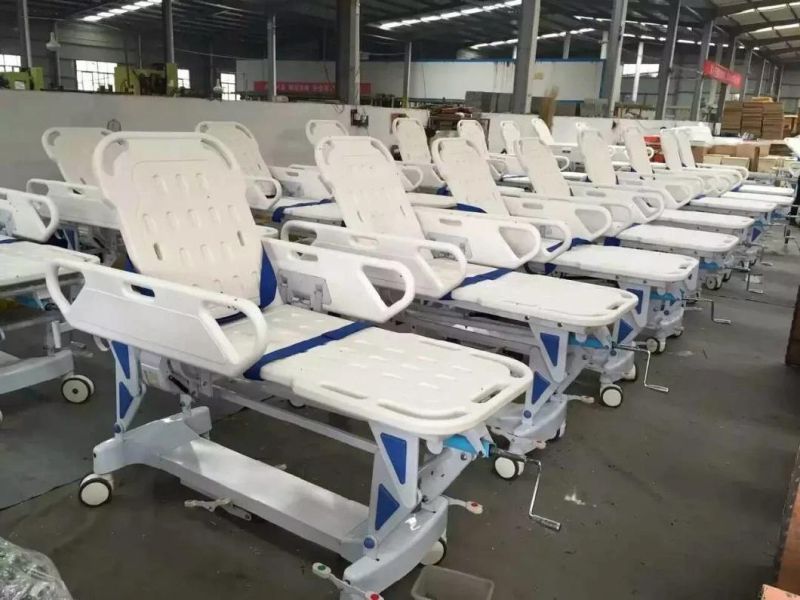

- Application：Drum, Plate, Float, Roadblocks, Medical Bed Board
- Max. Product Volume：250L
- Hydraulic Valve：Taiwan Hitech
- Programmer：Japan Moog
- Contactor：Schneider
- PLC Control：Mitsubishi
- Power Supply to Heating Element：Japan Omron+Korea LG
- Air Valves：Airtac
- Clamping Stroke Measurement：Transducer Italy Gefran
- Clamping Force：780kn
- Screw Diameter：100mm
- Drive Motor：45 Kw
- Total Weight：20
- Output/Capacity：170 Kg,Hr(HDPE Particle)
- Accumulator Capacity：20L(15kghdpe)
- Transport Package：Film Packing
- Specification：ABLD100
- Trademark：Dawson
- Origin：Zhangjiagang, Jiangsu, China
- HS Code：8477301000
- Production Capacity：up to Product
Description
Overview
Product Description
Company Profile
Packaging & Shipping
Our service

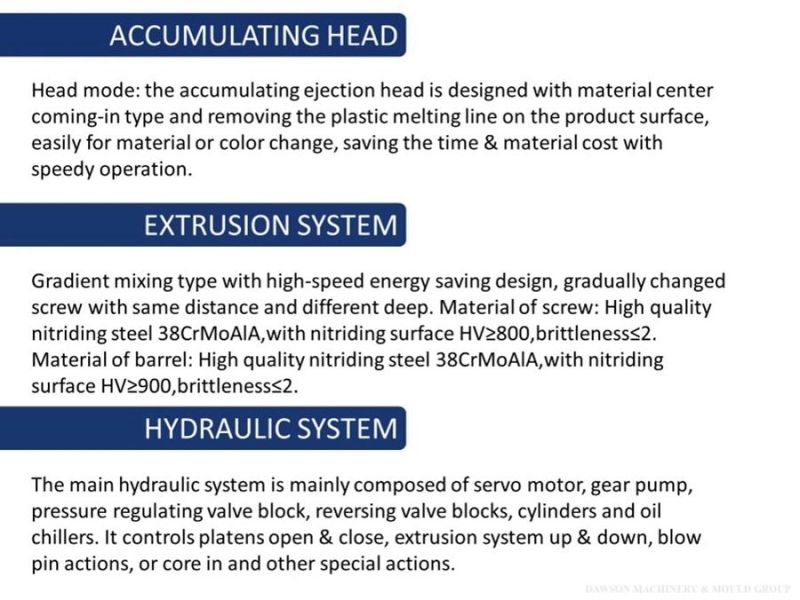

Product Parameters1 Screw diameter 100mm 2 L/D ratio 24:1 3 Screw speed 15~50r.p.m. 4 Drive motor 45Kw 5 Heating zone with cooling fan 6 zone 6 Output/Capacity 170 Kg/hr(HDPE particle) 8 Heating capacity 25.1 kw 9 Vertical adjustment of head 500mm 10 Forward/Backward adjustment of head 500mm 11 Groove feed barrel cylinder Have IKV 12 Gear box Hard gear decelerator 13 Ladder and safety rails Have Accumulator Head 1 Accumulator capacity 20L(15kgHDPE) 2 Design First in and first out 3 Heating zone 6 zone 4 Heating capacity 25.1kw 5 Max die&pin diameter 450mm 6 Die head axis with pre-blow Ø120mm 7 Accumulator push-out stroke measurement Transducer Italy Gefran 8 Injection pressure 12 Mpa 9 Extruder stop Have CLAMPING UNIT 1 Tie bar Two tie bar 2 Platen size 900(W)X1400(H) 3 Length of mold 900-960mm 4 Clamping force 780KN 5 Close/Open stroke 880-1700mm 6 Mold weight Max. 5000 kg 7 Clamping stroke measurement Transducer Italy Gefran 8 Hydraulic valve Taiwan Hitech 9 Number of hydraulic cylinder 1 10 High pressure 14 Mpa 11 Support parts for platen movement Liner Guide HYDRAULIC SYSTEM 1 Main motor/vice motor AC15Kw/15Kw 2 Hydraulic valve Taiwan Hitech 3 Hydraulic pump Taiwan Hitech 4 Oil tank capacity 850L 5 Operating pressure 12 Mpa 6 Cooling water for oil fixed 7 Control of oil level be observed dipstick PNEUMATIC SYSTEM 1 Operating pressure 0.8 Mpa 2 Blow pressure 0.8 Mpa 3 Needle blow circuit High & low pressure 4 Intermittent blow Have 5 Controlled support air for parison Have 6 Air Valves AIRTAC 7 Quick exhaust for support air Have PARISON CONTROL 1 Programmer JAPAN MOOG 2 Servo valve
MOOG
3 Servo cylinder Intergret of die head 4 Hydraulic pack
TAIWAN YOSHE Variable Displacement Piston Pumps
ELECTRICITY 1 Contactor
Schneider
2 Total connected load (approx.)
114kw/h 3 Average energy consumption (approx.)
42 kw/h WATER COOLING 1
Machine water consumption
6000L/h 2
Mold water consumption
6000L/h AIR CONSUMPTION 1 Compressed air consumption 1.2 kgf/cm2, 3000 L/min OTHER FEATURES 1 PLC control MITSUBISHI 2 Human machine interface Hitech 3 Recipe storage in hard disk Available HEATING CONTROL 1 Power supply to heating element Relay + Contactor Japan Omron+Korea LG 2 Control PLC controle 3 Type of thermocouple K Type 4 Adjustable lower and upper limit alarm Have 5 Cold start prevention for screw Have 6 Alarm for thermocouple and heating element breakage Have, heating element breakage by anperemeter 7 Pre-heating function Have Die-ring AND Die-pin 1 one sets of die & pin One set according to customer 2 Test material Buyer supply 300kg material to seller for machine testing OPTION 1 Bottom blow (hydraulic) and sealing unit (pneumatic) Double blow pin (including expand & up-down & parison seal) 2 Robot Have 3 Machine Dimension 6.8×3.3×5 4 Total weight 20
