ABA Two Screw Double Layer PE Film Blowing Machine

Ruian Ruifeng Packing Machine Co., Ltd.
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：1200mm
  • Screw Diameter：60mm
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：2SJ
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Transport Package：Wrapping with Film
  • Specification：CE ISO
  • Trademark：RUIFENG
  • Origin：Ruian Zhejiang
  • HS Code：8477309000
  • Production Capacity：20sets,Month

Description

Basic Info.

Model NO. 2SJ Machine Weight 4T Certification CE, ISO9001:2008 Transport Package Wrapping with Film Specification CE ISO Trademark RUIFENG Origin Ruian Zhejiang HS Code 8477309000 Production Capacity 20sets/Month

Product Description


Use:

It is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc, which are widely used for packing liquid, printed base material, products for export and industrial products, etc.

Characteristics:

1. Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2. The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4. Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.

Main parameters:

Model2SJ-G502SJ-G552SJ-G60
Diameter of screw50× 255× 260× 2
L/D28: 128: 128: 1
Reduced diameter of film(mm)80010001200
Single-face Thickness of film(mm)0.015-0.100.015-0.100.015-0.10
Max. Output(kg/h)406580
Power of main motor(kw)11× 215× 218.5× 2
Heating Power(kw)263042
Outline diameter(L× W× H)(mm)4200× 2200× 40004600× 2400× 46005000× 2800× 5000
Weight(T)456

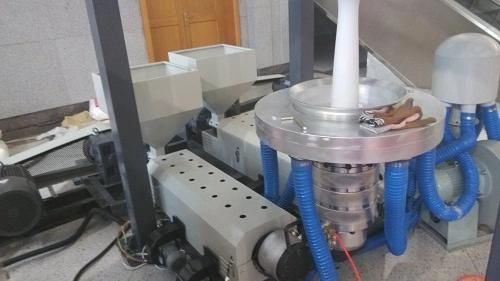

Machine pictures:

ABA Two Screw Double Layer PE Film Blowing Machine
ABA Two Screw Double Layer PE Film Blowing Machine
