Laboratory UPVC Drain Pipes Vacuum Sizing Simulation Production Experiment Line
Harbin Hapro Electric Technology Co., Ltd.- Warranty：1 Year
- Product Type：Plastic Composite Pipe
- Screw No.：Double-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
Base Info
- Customized：Non-Customized
- Condition：New
- After-sales Service：a Lifetime
- Sizing Way：Vacuum Sizing
- Cooling：Water
- Pipe Size：Inner 10mm, Outer 12.5mm
- Mode of Traction：Belt Traction
- Power Supply Voltage：1-Phase 220V
- Transport Package：Plywood
- Trademark：Hapro
- Origin：China
- HS Code：9024800000
- Production Capacity：100,Year
Description

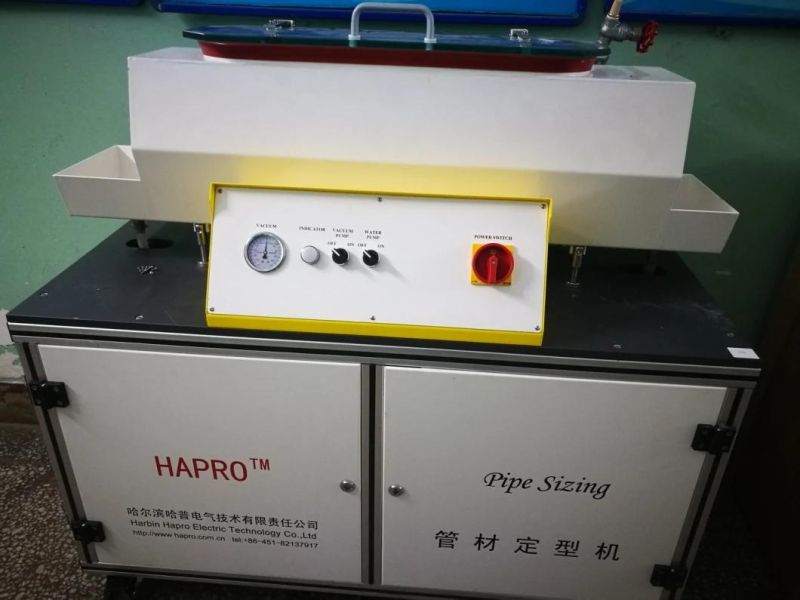

Pipe sizing
Inner Pipe diameter
Ф10 mm
Outer Pipe diameter
Ф12.5 mm
Power supply
AC,220V
Total power
1.7 kW
Sizing Vacuumize
Cooling
waterDimension
(L×W×H)
1200×600×1000 mm
Weight
200 kg

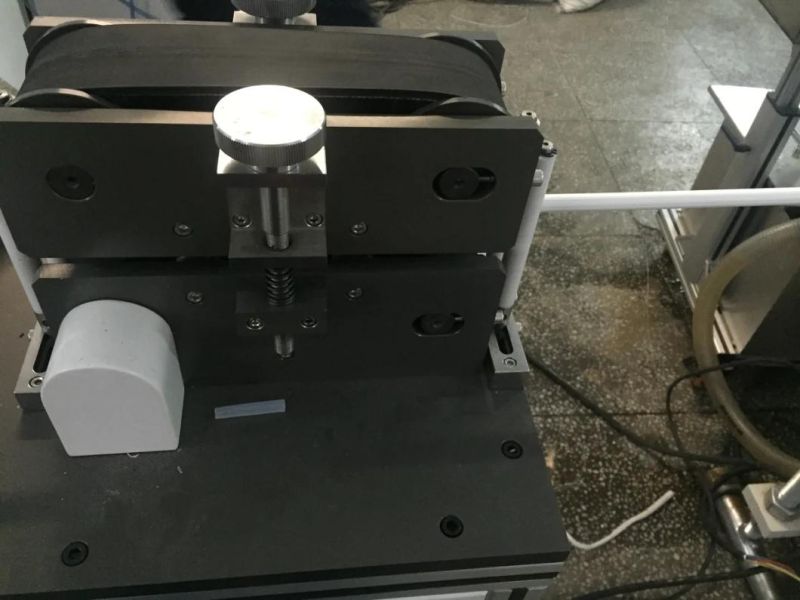

The pipe tractor is pulled by belt friction, and then the pipe is cut into the size required by the customer by the pipe cutting pliers for subsequent physical experiments, such as tensile test, etcPipe Tractor
Traction speed0.24~2.5 m/min,Manual adjustment
Mode of traction
Belt traction
Power supply
AC,220V
Total power
1.7 kW
Weight
100 kg
Dimension (L×W×H)
1200×600×1000 mm
Inner Pipe diameter
Ф10 mm
Outer Pipe diameter
Ф12.5 mm
Power supply
AC,220V
Total power
1.7 kW
Sizing
Cooling
water
(L×W×H)
1200×600×1000 mm
Weight
200 kg
The pipe tractor is pulled by belt friction, and then the pipe is cut into the size required by the customer by the pipe cutting pliers for subsequent physical experiments, such as tensile test, etcPipe Tractor
Traction speed
Mode of traction
Belt traction
Power supply
AC,220V
Total power
1.7 kW
Weight
100 kg
Dimension (L×W×H)
1200×600×1000 mm
