Zs Servo Series 260ton Un200A5 Pet Bowl Plastic Injection Molding Machine
SHANDONG SHENG WO PLASTIC MACHINERY TECHNOLOGY CO., LTD.- Warranty:12 Months
- Type:Preform Injection
- Structure:Horizontal
- Plastic Type:Thermoplastic
- Plasticizing Way:Screw Type
- Clamping Way:Hydraulic
Base Info
- Automation:Automatic
- Computerized:Computerized
- Certification:CE, ISO9001:2008
- Weight:8600kg
- Color:White and Orange
- Producing:OEM ,ODM
- Energy-Saving:Servo Motor
- Transport Package:Whole Machine
- Specification:5.9*1.5*2.2
- Trademark:SENVO
- Origin:Laiwu, China
- HS Code:8477101090
- Production Capacity:600PCS,Year
Description
Overview
![Zs Servo Series 260ton Un200A5 Pet Bowl Plastic Injection Molding Machine](http://www.676102.com/uploads/image/2021/03/11/35/2c/0bdb51017676f13c7b77bfcf49c348e3.jpg)
![Zs Servo Series 260ton Un200A5 Pet Bowl Plastic Injection Molding Machine](http://www.676102.com/uploads/image/2021/d8/66/a8/0f/d7d4039fc29d648bab27f3bccf0c7854.jpg)
![Zs Servo Series 260ton Un200A5 Pet Bowl Plastic Injection Molding Machine](http://www.676102.com/uploads/image/2021/65/85/52/2f/4bacef08c05f95249e925693af631d31.jpg)
![Zs Servo Series 260ton Un200A5 Pet Bowl Plastic Injection Molding Machine](http://www.676102.com/uploads/image/2021/41/92/f4/66/2b70e21c41a434bd7208ed3080e24ae6.jpg)
![Zs Servo Series 260ton Un200A5 Pet Bowl Plastic Injection Molding Machine](http://www.676102.com/uploads/image/2021/94/ef/0f/45/b4caee654073ecbd1a007c83718aca2d.jpg)

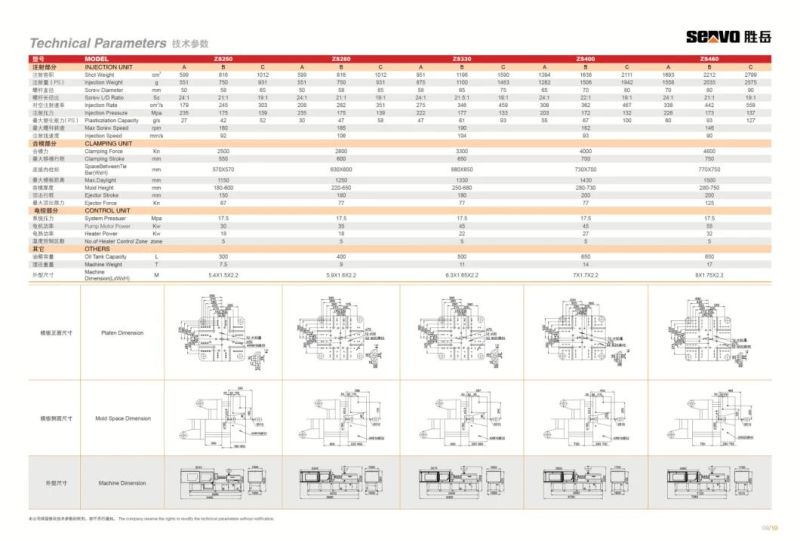

SPECIFICATION OF ZS260 Specification Unit A B C Injection Volume cm³ 540 653 778 Injection Weight g 497 601 715 Screw Diameter mm 50 55 60 Injection Pressure M pa 215 176 149 Injection Speed cm³/s 213 258 307 Max. Plasticization Capacity Kg/h r 103 144 183 Screw L/D Ratio L/D 23:1 21:1 19:1 Max. Screw Speed rpm 210 Clamping Force K n 2600 Clamping Stroke mm 570 Space Between Tie Bar mm x mm 610x 560 Max. Daylight mm 1220 Mold Height(Min-Max) mm 220-650 Ejector Stroke mm 180 Ejector Force K n 77 Hydraulic System Pressure M pa 17.5 Oil Pump Motor Power kw 29 Heater Power kw 16.8 No. of Heater Control Zone zone 5 Oil Tank Capacity L 320 Machine Dimension(L*W*H) m x m x m 5.9x 1.6x 2.2 Machine Weight kg 8600
30% as down payment to seller's account by T/T ,70% balanced after inspection and before shipping
3.Shipping date:
Within 30days after receiving the down payment
4.Installation and after-sale service:
The machine installation and debugging time should be within 5 days , before seller coming ,the buyer should keep everything ready.The warranty is 1 year ,within this term ,seller offer the easy-wearing parts to buyer for free ,and beyond this term ,seller offer a lowest price for the broken parts.For the installation and debugging workers from seller, the buyer should bear the cost for travelling, board and lodging ,and should pay 100USD/day for one worker .The training site is fixxed by two parties.
Product Description
Product Parameters
![Zs Servo Series 260ton Un200A5 Pet Bowl Plastic Injection Molding Machine](http://www.676102.com/uploads/image/2021/03/11/35/2c/0bdb51017676f13c7b77bfcf49c348e3.jpg)
![Zs Servo Series 260ton Un200A5 Pet Bowl Plastic Injection Molding Machine](http://www.676102.com/uploads/image/2021/d8/66/a8/0f/d7d4039fc29d648bab27f3bccf0c7854.jpg)
![Zs Servo Series 260ton Un200A5 Pet Bowl Plastic Injection Molding Machine](http://www.676102.com/uploads/image/2021/65/85/52/2f/4bacef08c05f95249e925693af631d31.jpg)
![Zs Servo Series 260ton Un200A5 Pet Bowl Plastic Injection Molding Machine](http://www.676102.com/uploads/image/2021/41/92/f4/66/2b70e21c41a434bd7208ed3080e24ae6.jpg)
![Zs Servo Series 260ton Un200A5 Pet Bowl Plastic Injection Molding Machine](http://www.676102.com/uploads/image/2021/94/ef/0f/45/b4caee654073ecbd1a007c83718aca2d.jpg)
More Product
Company ProfileFAQ
1.Customers offer the place for the sets of machine ,factory offer the design for the sets of machine.
2.Payment:30% as down payment to seller's account by T/T ,70% balanced after inspection and before shipping
3.Shipping date:
Within 30days after receiving the down payment
4.Installation and after-sale service:
The machine installation and debugging time should be within 5 days , before seller coming ,the buyer should keep everything ready.The warranty is 1 year ,within this term ,seller offer the easy-wearing parts to buyer for free ,and beyond this term ,seller offer a lowest price for the broken parts.For the installation and debugging workers from seller, the buyer should bear the cost for travelling, board and lodging ,and should pay 100USD/day for one worker .The training site is fixxed by two parties.
