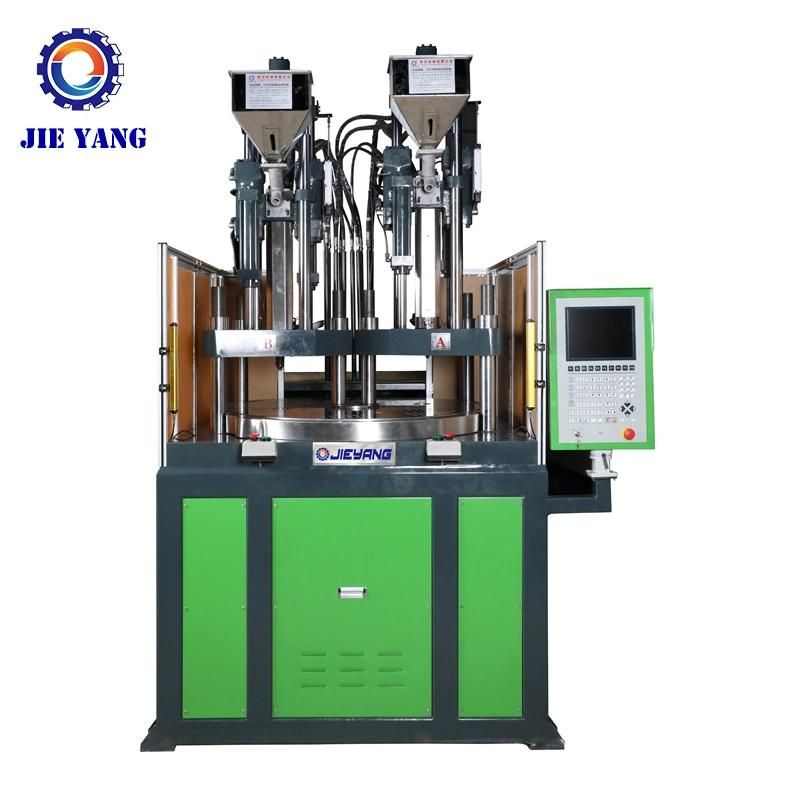

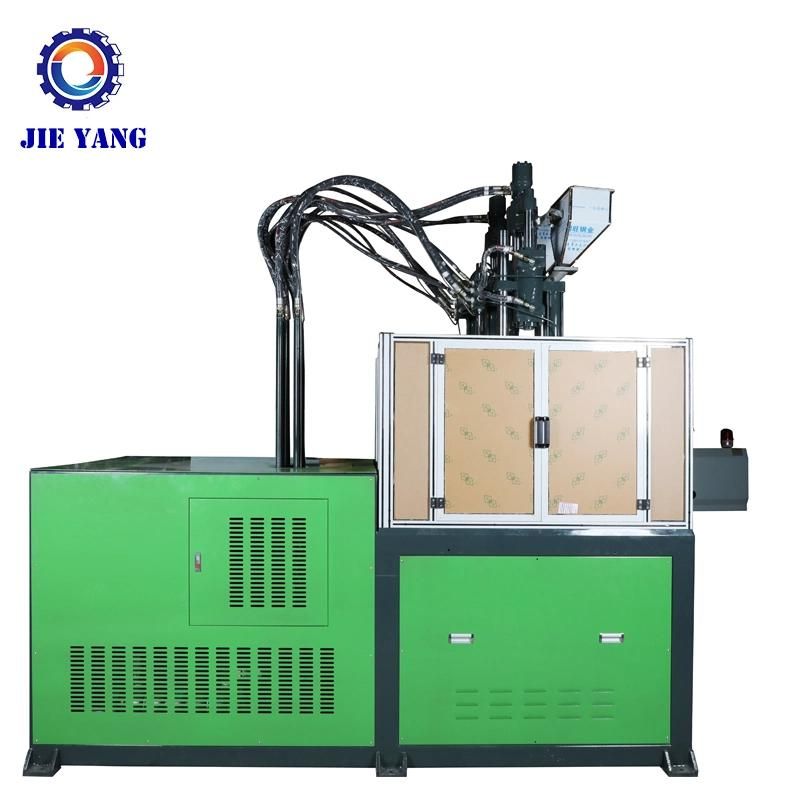

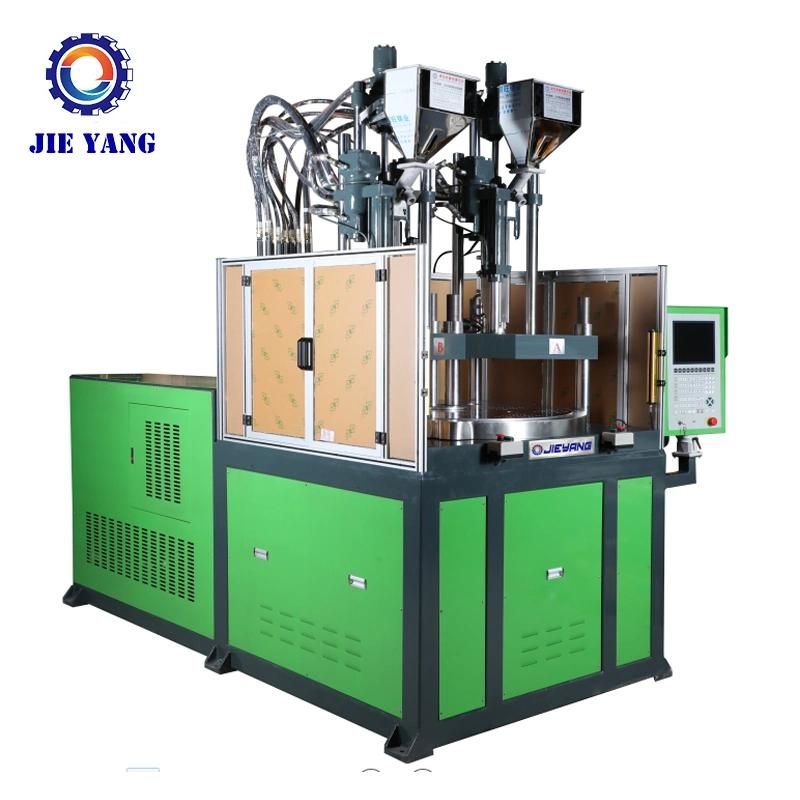

Two Color Knife Handle PVC PP Rotary Table Injection Molding Machine

Dongguan Jieyang Machinery Co., Ltd.
  • Type：Tube Head Injection
  • Structure：Vertical
  • Plastic Type：Thermoplastic
  • Plasticizing Way：Screw Type
  • Clamping Way：Hydraulic
  • Automation：Automatic

Base Info

  • Model NO.：JY-9002R-2C
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008
  • Option Injection System：a.B
  • Clamping Force：45tons
  • Clamping Stroke：250mm
  • Min.Mold Height：230(330)mm
  • Max.Opening Stroke：480(580)mm
  • Rotary Table Size：980mm
  • Ejector Distance：45mm
  • Ejector Force：17.2kn
  • Oil Tank Capacity：350L
  • Electric Power：7.5(10)+7.5(10)Kw(HP)
  • Machine Dimension：2.1*1.8*3.4m
  • Machine Weight：5.2TF
  • Transport Package：Plywood Case
  • Specification：13CBM
  • Trademark：JieYang
  • Origin：Dongguan, China
  • HS Code：8477209000
  • Production Capacity：400 Sets,Month

Description

Basic Info.

Model NO. JY-9002R-2C Computerized Computerized Certification CE, ISO9001:2008 Option Injection System a.B Clamping Force 45tons Clamping Stroke 250mm Min.Mold Height 230(330)mm Max.Opening Stroke 480(580)mm Rotary Table Size 980mm Ejector Distance 45mm Ejector Force 17.2kn Oil Tank Capacity 350L Electric Power 7.5(10)+7.5(10)Kw(HP) Machine Dimension 2.1*1.8*3.4m Machine Weight 5.2TF Transport Package Plywood Case Specification 13CBM Trademark JieYang Origin Dongguan, China HS Code 8477209000 Production Capacity 400 Sets/Month

Product Description

Two color knife handle PVC PP Rotary Table Injection Molding Machine

Two Color Knife Handle PVC PP Rotary Table Injection Molding Machine
Two Color Knife Handle PVC PP Rotary Table Injection Molding Machine
Two Color Knife Handle PVC PP Rotary Table Injection Molding Machine
Two Color Knife Handle PVC PP Rotary Table Injection Molding Machine

Two Color Knife Handle PVC PP Rotary Table Injection Molding Machine
Two Color Knife Handle PVC PP Rotary Table Injection Molding Machine
Two Color Knife Handle PVC PP Rotary Table Injection Molding MachineTwo Color Knife Handle PVC PP Rotary Table Injection Molding Machine


Youtube Videos:https://youtu.be/ff0PBy4phsg

Company :

(1)We will take some videos to guide you use the machine well.It is more simple and easier to understand than the machine manual.

(2)If your moulds could not fit our standard machine,we could make the custom-built machine for your moulds.We will give you a most perfect scheme.

(3)If you could tell me your mould's size (Length*Width*Height),hardness of material and injection weight needed,then we could program the machine for you.So when you get the machine ,you could use it directly.

(4)Because we are machine factory,if you come to our factory,we could teach you to use our machines freely.The machines are easy to use.

(5)Our machines all have 1 year warranty. In this year,if the machine parts damage,we are responsible for the cost of new parts,and you pay the express charges.
Two Color Knife Handle PVC PP Rotary Table Injection Molding Machine
Two Color Knife Handle PVC PP Rotary Table Injection Molding Machine

Services:

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to use the machine by video and document .
* Engineers available to service  machinery overseas.

Related Products Provided
* We could find the mould, material and  other related equiptments suppliers for  you. And you could contact with them  directly.
