• Model NO.：JS2000X
• Raw Material：Pet
• Making Method of Parison：Stretch Blow
• Automation：Automatic
• Computerized：Computerized
• Certification：CE
• Transport Package：Wooden Box
• Specification：SGS, CE
• Trademark：JS
• Origin：Huangyan, Taizhou, Zhejiang, Pr. China
• HS Code：84773090
• Production Capacity：2000-2300PCS,H

MACHINE  PROPERTIES:

  1. FEATURES TOUCH SCREEN COMPUTER OF TAIWAN'S WEILUN , OPERATE CONSISTENTLY AND SIMPTY .
   2.FEATURES PNEUMATIC ELEMENTS OF GERMAN FESTO AND JAPAN SMC.
   3.SPECIALLY DESIGNED FOR ENERGY-SAVING PURPOSE , MECHANICAL  UNIT IS COMPACT AND SOUND.
   4.FEATERES TROUBLW ALERT AND DIAGNOSTIC UNITES TO ALLOW EASY MAINTENANCE.
   5.ENVIRONMENTALLY FRIENDLY DESIGN, NONTOXIC CONVEYOR BELT TO CARRY PREFORMS .
Our factory bottle blow molding machine can produce PET containers including the bottles for kinds of wine, drink, soybean, vinegar, and pesticide shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipes are used in the machine. It has high pressure protection with the feature of precisely removing mould. It is easy to maintain .It is the equipment for producing PET bottles.
   JS-2000XProduction capacity BPH2000-2300Number of Cavity /2Clamping forcekN160Mould opening stroke mm Stretch strokemm280Max. Container Volumeliters0.7Max. Neck Sizemm40Max. Bottle diameter mm70Max. Bopttle height mm280Installed PowerkW25Max. Heating PowerkW24Operating Air PressureKg/cm²8Operating Air Consumption  liters/min1300Blowing Air PressureKG/cm²30Blowing Air Consumptionliters/min1500Cooling water PressureKg/cm²4-5Cooling water Temperature°C10-20Cooling water Flowliters/min100Measurement (L x W x H)m2.5X1.9X2.2Weight Ton2.3

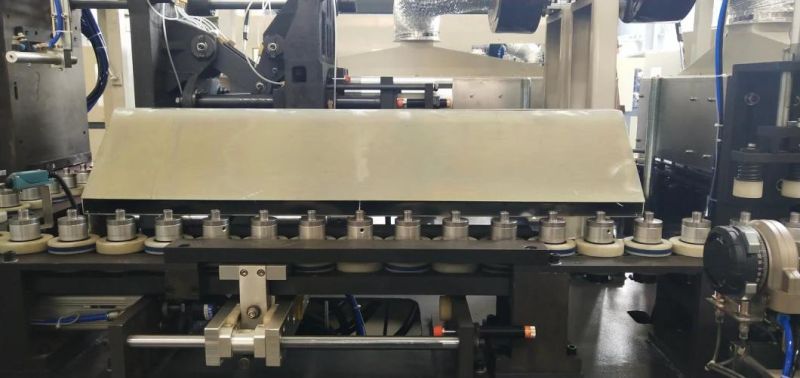

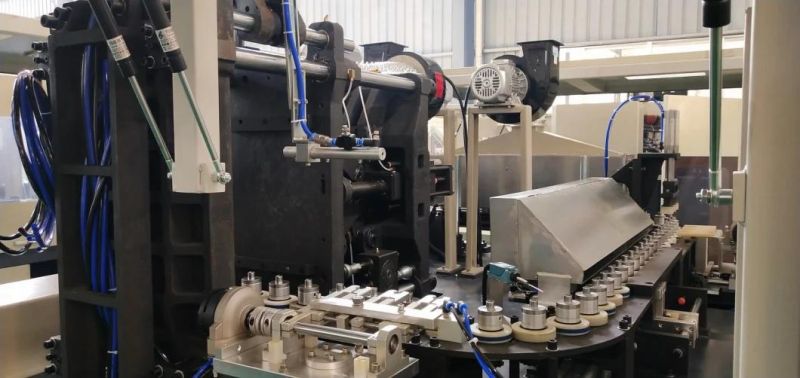

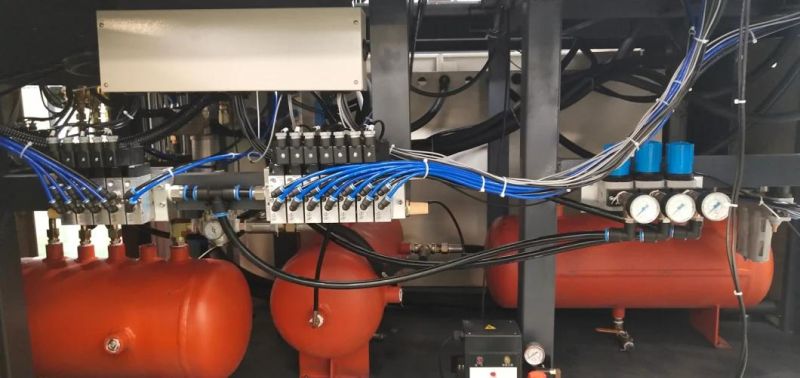

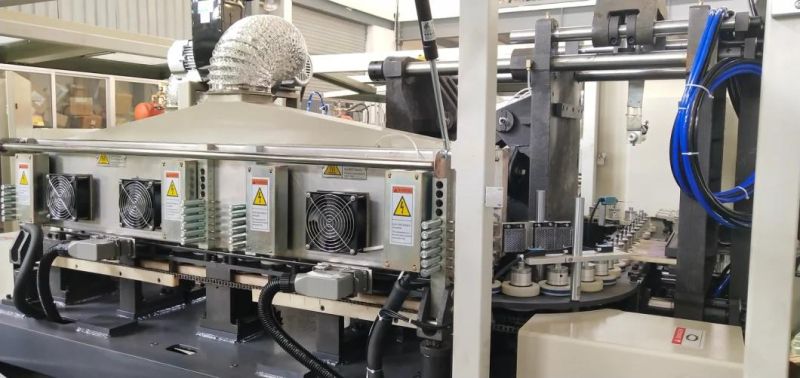

Internal details of the Machine
