• Model NO.：SJ50
• Automation：Non-Automatic
• Computerized：Non-Computerized
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Transport Package：Warp Film Packing
• Trademark：beiyangsj
• Origin：Shanghai
• HS Code：84773000
• Production Capacity：40kg,H

Basic Info.

Model NO. SJ50 Automation Non-Automatic Computerized Non-Computerized Machine Weight 4T Certification CE, ISO9001:2008 Transport Package Warp Film Packing Trademark beiyangsj Origin Shanghai HS Code 84773000 Production Capacity 40kg/H

Product Description



• Extruder

1. Screw barrel:Φ50*28   (The hopper seat is water-cooled)
2. Hard tooth surface reducer:TKZLYJ 173-12.5-1 (With oil pump, plate coolerProduction by Taike Industrial)
3. Variable frequency speed regulating machine:YVF180M-4-18.5KW (Nanjing production)
4. hopper:304 stainless steel Φ500*580 (with drawing plate device)
5.  Ceramic heater with stainless steel mask: Φ95*310

 Heating power: 2400W 220V 3 groups
Cooling fan:150FLJZNZS 5-2  380V 250W  3 groups

1. High pressure centrifugal fan with large air volume :9-19-4.5A-4KW 1 set of air volume regulated by frequency converter (made in Wuxi)
2.  Spiral die: die mouth diameter Φ80mm, clearance 1.8mm set
3.  Cooling air ring diameter: Φ700 double air duct air ring
4. Electric cabinet

1.  Temperature control instrument brand: Huibang.There are four parts of the barrel and two parts of the mould
2.  Main motor display: frequency converter speed, ammeter

 Traction, printing, winding, fan installation frequency converter tachometer, Main motor, traction, printing, winding four groups can synchronously speed control in the tachometer display speed

•  auxiliary parts

1.  Traction roller: Φ164*650 chrome-plated steel roller, rubber roller pair
2.  Roller frame: processed by chrome plating
3.  Roller opening: cylinder opening

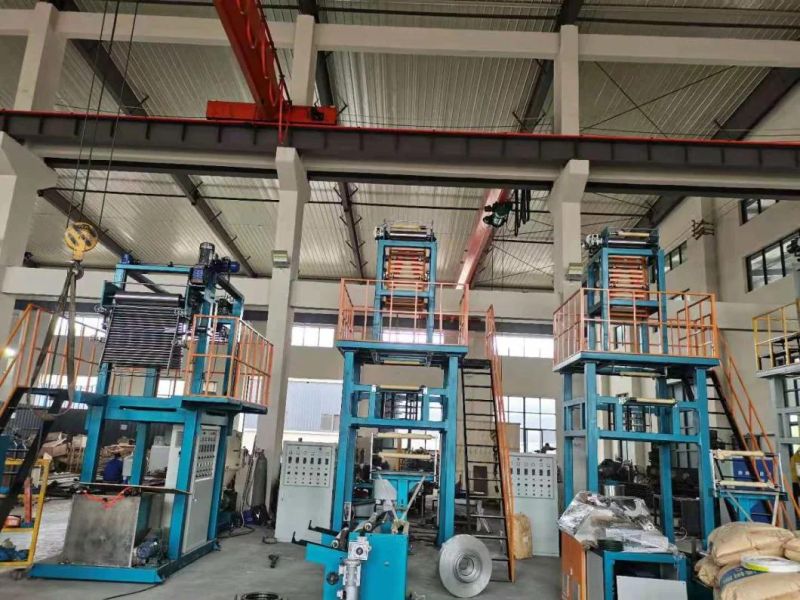

4.   The column of the traction frame body is made of 140*140*4.5 thickened square pipe welded into the frame body height: 5.5m; the height of the guardrail is 1.1m
5.  Herringbone splint device material, smooth solid wood combination
6.  Squirrel cage bubble stabilizer, a set of ceramic tube combined guide roller
7.  A set of edge inserter (edge insertion depth 150mm)
8.  The shaft heads on both sides of the traction roller are treated with anti-rust treatment
9.   2 aluminum alloy guide rollers for winder and tractor
10.  A set of twenty fold frame

•  winding machine

1. Winding form: passive friction type single-position coiler, manual film cutting, rewinding, unloading
2.  Wall thickness 16mm;Winding rubber Φ300*650mm set
3.   With rubber roller: Φ95*650mm one
4.  Aluminum alloy guide roller: Φ60*650
5.  Air tension axis: Φ74*650*1130 two
6.  Maximum speed of winding line  80m/min
7.  Coiling size: Φ300*500mm

•  Auxiliary traction device

1.  Reducer: NMRV075-10-1.5KW Hangzhou Unide brand

NMRV 063-20-1.5KW   Hangzhou Unide brand

1. Frequency converter: Jitech brand
2.  The two air tension shafts use paper core Φ76mm
3. Spherical bearings are LK brand

•  Basic equipment parameters

1. Width of products: 300~500mm(200~400mm after edge insertion)
2. Thickness of products: 0.01~0.05mm
3. Thickness deviation: ≤±7% (when the thickness of a single layer is 0.08mm)
4.   Adapted raw materials: PLA, PBAT, modified starch and other degradable raw materials, LDPE, HDPE
5. Total installed power: 35KW Power required: 22KW
6.   Equipped with two screw rods

1.  One stick is suitable for LDPE and HDPE
2.  One full biodegradable blowing film, HDPE and recycled material blowing bag

1.  Dimensions: 6.5*2.8*4.5 (L*W*H)
2.  Machine weight: about 3.2 tons
3.  Machine color: peacock blue

 Technical  Data

Unit-type	Width(mm)	Thickness	kg/h Output	L/D Screw radio	(KW) Main motor
SJ50-sm650	100-600	0.01-0.07	40-60	28:1	22
