Agricultural Big PE Film Blowing Machine
Xiongqiu Plastic Machinery Co., Ltd.- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：4200mm
- Screw Diameter：120mm
- Automation：Automatic & Manual
- Computerized：Computerized
Base Info
- Model NO.：FM-01
- Machine Weight：12T
- Certification：CE, ISO9001:2008
- PE-2200：L*W*H: 8m*3.95m*7.5m
- Voltage：380V 50Hz 3phase
- Transport Package：Plastic Film for Container Shipment
- Specification：single layer
- Trademark：Xiongqiu Plastic Machinery Co., Ltd.
- Origin：Foshan, Guangdong Province
- HS Code：8477300000
Description
LDPE/LLDPE/HDPE/MLLDPE/EVA/EAA etc.film width 2100mm 2500mm 3000mm 3700mm 4200mm thickness 0.01--0.16mm screw diameter Φ105mm*1 Φ120mm*1 Φ135mm*1/Φ90mm*2 Φ145mm*1/Φ95mm*2 Φ155mm*1/Φ120mm*2 L/D ratio 30:1 die diameter Φ550mm Φ650mm Φ750mm Φ800mm Φ1100mm die structure Spiral mandrel die chrome plated surface 40Cr main power 55kw 75kw 90kw*1 / 45kw*2 130kw*1 / 55kw*2 160kw*1 / 75kw*2 max output 260kg/h 330kg/h 380kg/h 450kg/h 650kg/h optional equipment auto-loader device, film surface treater, air compressor, fast change net, double center rewinder/auto rewinder, flat cage roll winder, rotary die head, double wind air ring.

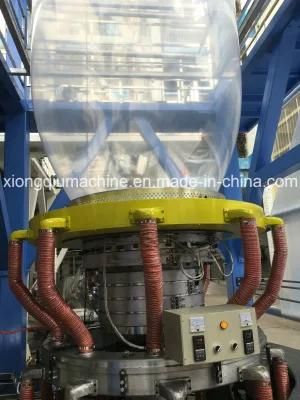

PICTURES FOR REFERENCE:
PICTURES FOR REFERENCE:
Certificates:
